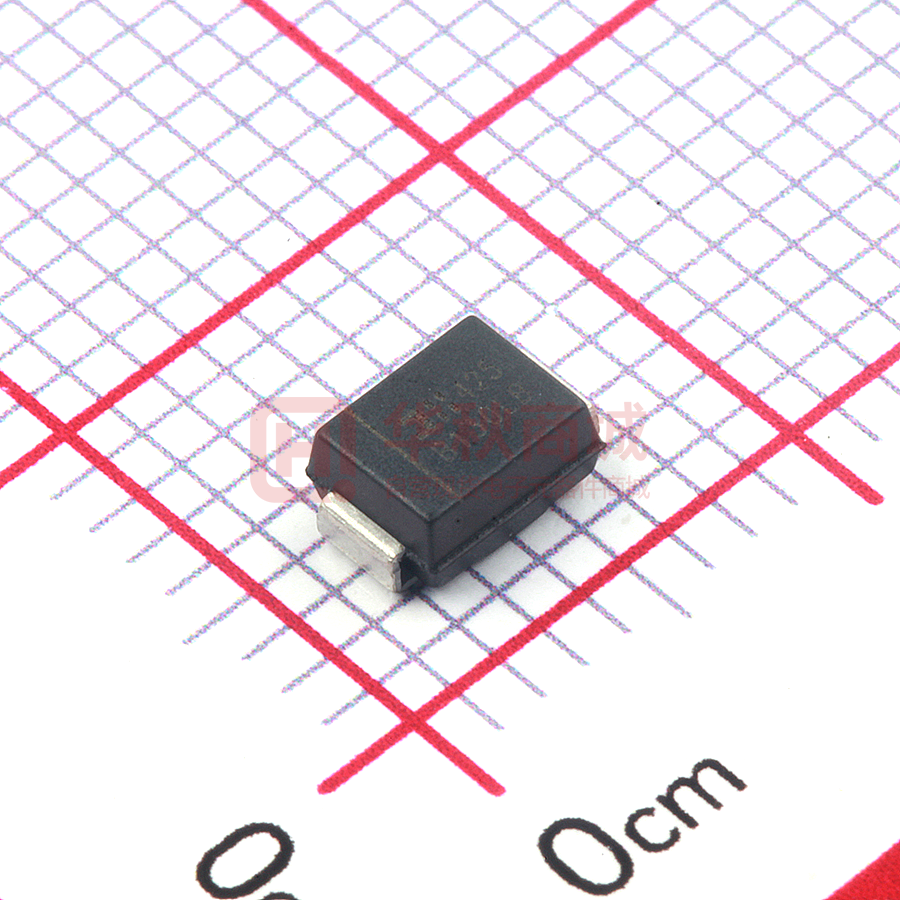

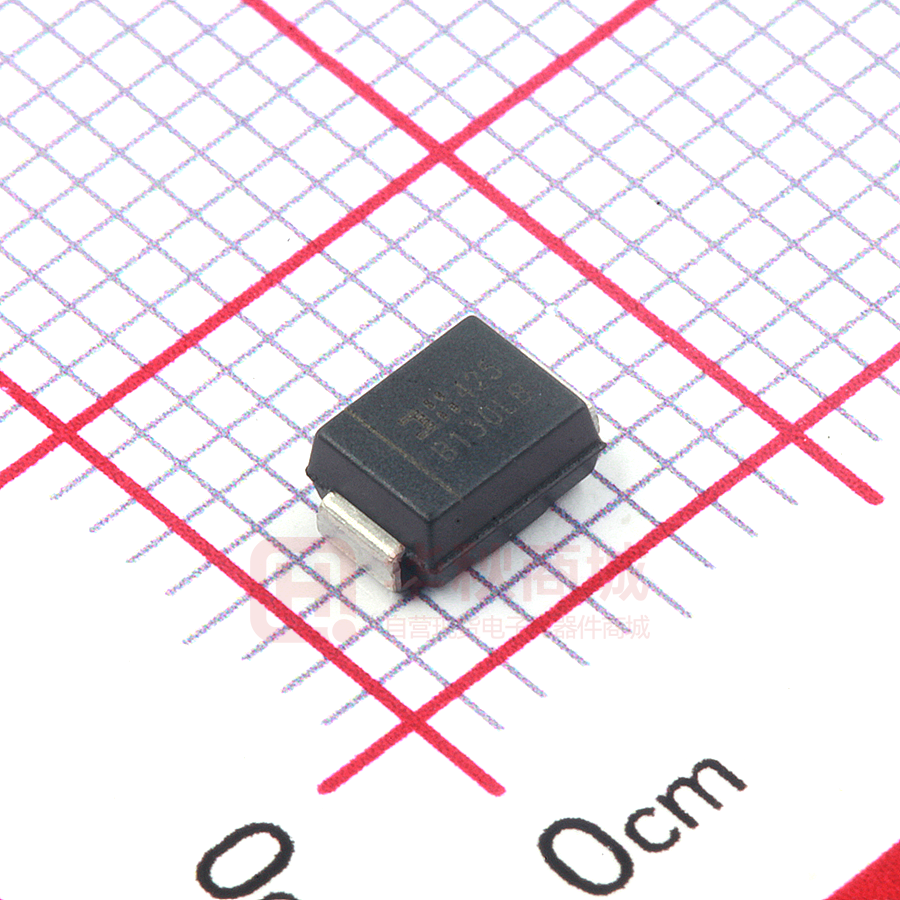

B130LB-13-F

  B130LB Green 1.0A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER Features Mechanical Data • • • • • • • • • • • • Guard Ring Die Construction for Transient Protection Ideally Suited for Automated Assembly Low Power Loss, High Efficiency Surge Overload Rating to 40A Peak For Use in Low Voltage, High Frequency Inverters, Free Wheeling, and Polarity Protection Application High Temperature Soldering: 260°C/10 Second at Terminal Lead Free Finish, RoHS Compliant (Note 1) Green Molding Compound (No Halogen and Antimony) (Note 2) • • Case: SMB Case Material: UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020 Terminals: Lead Free Plating (Matte Tin Finish). Solderable per MIL-STD-202, Method 208 Polarity: Cathode Band or Cathode Notch Weight: 0.093 grams (approximate) Bottom View Top View Ordering Information (Note 3) Part Number B130LB-13-F Notes: Case SMB Packaging 3000/Tape & Reel 1. EU Directive 2002/95/EC (RoHS). All applicable RoHS exemptions applied, see EU Directive 2002/95/EC Annex Notes. 2. Product manufactured with Data Code 0924 (week 24, 2009) and newer are built with Green Molding Compound. 3. For packaging details, go to our website at http://www.diodes.com. Marking Information YWW B130LB B130LB Document number: DS30043 Rev. 11 - 2 B130LB = Product type marking code = Manufacturers’ code marking YWW = Date code marking Y = Last digit of year (ex: 2 for 2002) WW = Week code (01 to 53) Band = Cathode 1 of 4 www.diodes.com September 2010 © Diodes Incorporated B130LB Maximum Ratings @TA = 25°C unless otherwise specified Single phase, half wave, 60Hz, resistive or inductive load. For capacitance load, derate current by 20%. Characteristic Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage RMS Reverse Voltage Average Rectified Output Current Symbol VRRM VRWM VR VR(RMS) Value Unit 30 V V IO 21 1.0 2.0 IFSM 40 A Symbol RθJT TJ, TSTG Value 12 -55 to +125 Unit °C/W °C @ TT = 120°C @ TT = 110°C Non-Repetitive Peak Forward Surge Current 8.3ms Single half sine-wave Superimposed on Rated Load A Thermal Characteristics Characteristic Typical Thermal Resistance Junction to Terminal Operating and Storage Temperature Range Electrical Characteristics @TA = 25°C unless otherwise specified Characteristic Symbol Min Typ Forward Voltage Drop VF - - Leakage Current (Note 4) IR - - - - Total Capacitance CT - - 1.0 20 90 Unit V mA pF Test Condition IF = 1.0A, TA = 25°C IF = 2.0A, TA = 25°C VR = 30V, TA = 25°C VR = 30V, TA = 100°C VR = 4V, f = 1MHz 4. Short duration pulse test used to minimize self-heating effect. 10 IR, INSTANTANEOUS REVERSE CURRENT (mA) IF, INSTANTANEOUS FORWARD CURRENT (A) Notes: Max 0.395 0.445 1.0 0.1 0 0.2 0.4 0.6 0.8 1.0 VF, INSTANTANEOUS FORWARD VOLTAGE (V) Fig. 1 Typical Forward Characteristics B130LB Document number: DS30043 Rev. 11 - 2 2 of 4 www.diodes.com 100 T J = 100°C 10 1.0 0.1 0.01 0 T J = 25°C 5 10 15 20 25 30 35 VR, INSTANTANEOUS REVERSE VOLTAGE (V) Fig. 2 Typical Reverse Characteristics September 2010 © Diodes Incorporated B130LB 1,000 5 IO, AVERAGE RECTIFIED CURRENT (A) CT, TOTAL CAPACITANCE (pF) f = 1.0MHz TJ = 25° C 100 10 0.1 4 3 2 1 TJ = 125°C 0 1 10 100 VR, DC REVERSE VOLTAGE (V) Fig. 3 Total Capacitance vs. Reverse Voltage 0 25 50 75 100 125 TC, CASE TEMPERATURE (°C) Fig. 4 Forward Current Derating Curve 150 IFSM, PEAK FORWARD SURGE CURRENT (A) 50 40 30 20 10 0 1 10 100 NUMBER OF CYCLES AT 60Hz Fig. 5 Max Non-Repetitive Peak Forward Surge Current Package Outline Dimensions B A C D J H B130LB Document number: DS30043 Rev. 11 - 2 G E SMB Dim Min Max A 3.30 3.94 B 4.06 4.57 C 1.96 2.21 D 0.15 0.31 E 5.00 5.59 G 0.05 0.20 H 0.76 1.52 J 2.00 2.50 All Dimensions in mm 3 of 4 www.diodes.com September 2010 © Diodes Incorporated B130LB Suggested Pad Layout Dimensions Value (in mm) Z 6.7 G 1.8 X 2.3 Y 2.5 C 4.3 IMPORTANT NOTICE DIODES INCORPORATED MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARDS TO THIS DOCUMENT, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE (AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION). Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes without further notice to this document and any product described herein. Diodes Incorporated does not assume any liability arising out of the application or use of this document or any product described herein; neither does Diodes Incorporated convey any license under its patent or trademark rights, nor the rights of others. Any Customer or user of this document or products described herein in such applications shall assume all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on Diodes Incorporated website, harmless against all damages. Diodes Incorporated does not warrant or accept any liability whatsoever in respect of any products purchased through unauthorized sales channel. Should Customers purchase or use Diodes Incorporated products for any unintended or unauthorized application, Customers shall indemnify and hold Diodes Incorporated and its representatives harmless against all claims, damages, expenses, and attorney fees arising out of, directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized application. Products described herein may be covered by one or more United States, international or foreign patents pending. Product names and markings noted herein may also be covered by one or more United States, international or foreign trademarks. LIFE SUPPORT Diodes Incorporated products are specifically not authorized for use as critical components in life support devices or systems without the express written approval of the Chief Executive Officer of Diodes Incorporated. As used herein: A. Life support devices or systems are devices or systems which: 1. are intended to implant into the body, or 2. support or sustain life and whose failure to perform when properly used in accordance with instructions for use provided in the labeling can be reasonably expected to result in significant injury to the user. B. A critical component is any component in a life support device or system whose failure to perform can be reasonably expected to cause the failure of the life support device or to affect its safety or effectiveness. Customers represent that they have all necessary expertise in the safety and regulatory ramifications of their life support devices or systems, and acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products and any use of Diodes Incorporated products in such safety-critical, life support devices or systems, notwithstanding any devices- or systems-related information or support that may be provided by Diodes Incorporated. Further, Customers must fully indemnify Diodes Incorporated and its representatives against any damages arising out of the use of Diodes Incorporated products in such safety-critical, life support devices or systems. Copyright © 2010, Diodes Incorporated www.diodes.com B130LB Document number: DS30043 Rev. 11 - 2 4 of 4 www.diodes.com September 2010 © Diodes Incorporated
