B120/B - B160/B
Green
1.0A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
Product Summary
Features and Benefits
VF max (V) TA =
+25°C
0.5
IR max (mA) TA
= +25°C
0.5
VF max (V) TA =
+25°C
0.7
IR max (mA) TA
= +25°C
0.5
B120/B, B130/B, B140/B
VRRM (V)
IO (A)
20/30/40
1.0
B150/B, B160/B
VRRM (V)
IO (A)
50/60
1.0
Mechanical Data
Description and Applications
This Schottky Barrier Rectifier is designed to meet the general
requirements of commercial applications. It is ideally suited for use
as:
Guard Ring Die Construction for Transient Protection
Ideally Suited for Automated Assembly
Low Power Loss, High Efficiency
Surge Overload Rating to 30A Peak
For Use in Low Voltage, High Frequency Inverters, Free
Wheeling, and Polarity Protection Application
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Notes 3)
Polarity Protection Diode
Re-Circulating Diode
Switching Diode
Top View

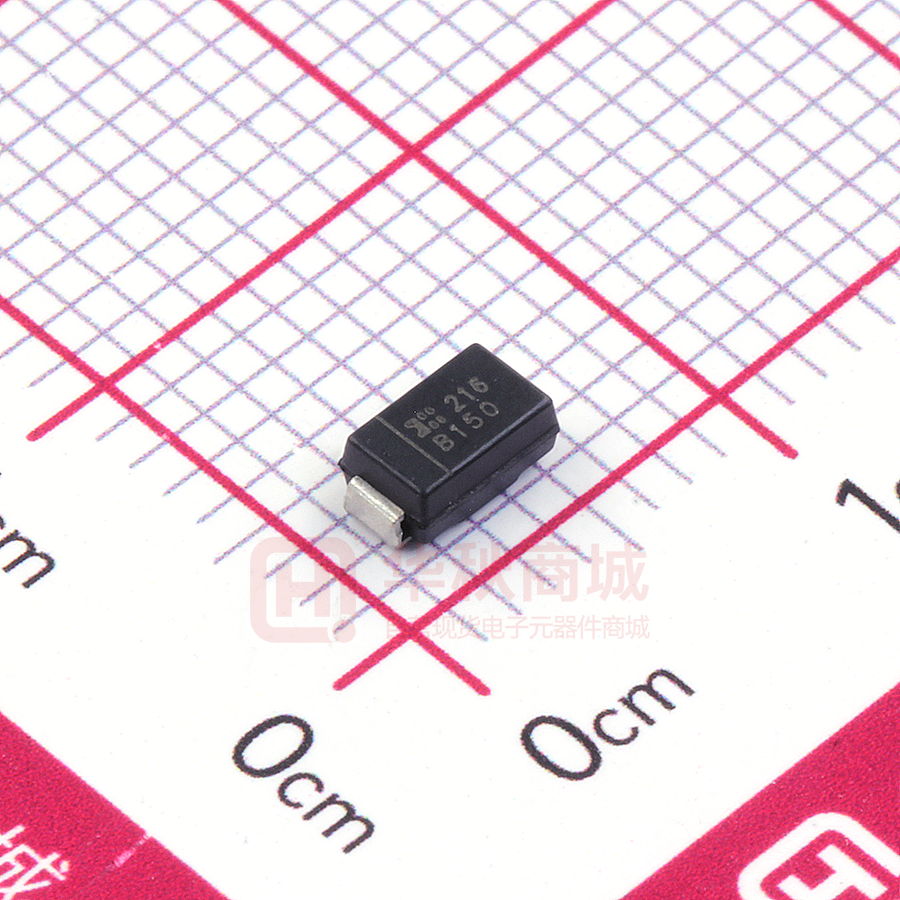

Case: SMA/SMB
Case Material: Molded Plastic.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Lead Free Plating (Matte Tin Finish).
Solderable per MIL-STD-202, Method 208
Polarity: Cathode Band or Cathode Notch
Weight: SMA 0.064 grams (Approximate)
SMB 0.093 grams (Approximate)
Bottom View
Ordering Information (Note 4)
Part Number
B1XX-13-F
B1XXB-13-F
Qualification
Commercial
Commercial
Case
SMA
SMB
Packaging
5,000/Tape & Reel
3,000/Tape & Reel
*xx = Device Type, e.g. B120-13-F (SMA Package); B120B-13-F (SMB Package).
Notes:
1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain
