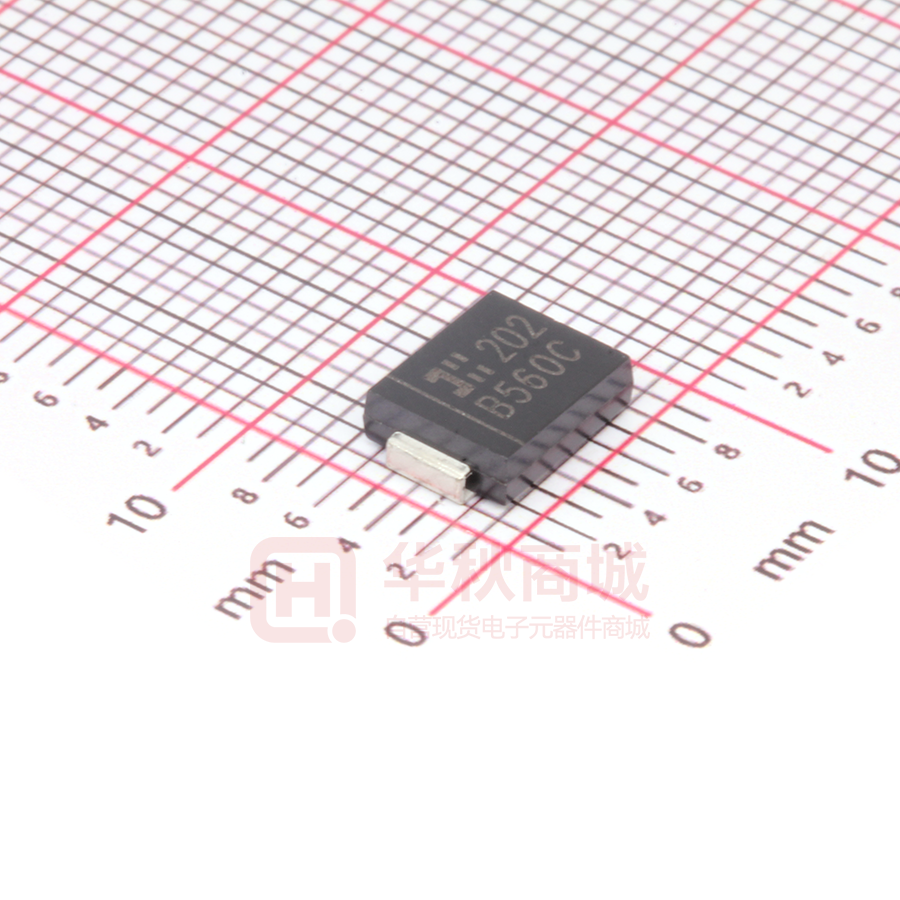

B560CQ-13-F

B520CQ - B560CQ Green 5.0A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER Product Summary Features and Benefits B520CQ/B530CQ/B540CQ VRRM (V) IO (A) VF Max (V) IR Max (mA) 20/30/40 5.0 0.55 0.5 B550CQ/B560CQ VRRM (V) 50/60 IO (A) 5.0 VF Max (V) 0.70 IR Max (mA) 0.5 • • • • • • • • Guard Ring Die Construction for Transient Protection Ideally Suited for Automated Assembly Low Power Loss, High Efficiency For Use in Low-Voltage, High-Frequency Inverters, Free Wheeling, and Polarity Protection Application Lead-Free Finish; RoHS Compliant (Notes 1 & 2) Halogen and Antimony Free. “Green” Device (Notes 3) Qualified to AEC-Q101 Standards for High Reliability PPAP Capable (Note 4) Description and Applications Mechanical Data This Schottky barrier rectifier is designed to meet the general requirements of commercial applications. It is ideally suited for use as a: • • • • • • • Polarity Protection Diode Re-Circulating Diode Switching Diode • • Case: SMC Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020 Terminals: Lead Free Plating (Matte Tin Finish). Solderable per MIL-STD-202, Method 208 Polarity: Cathode Band or Cathode Notch Weight: 0.21 grams (Approximate) SMC Top View Bottom View Ordering Information (Note 5) Part Number B5X0CQ-13-F Compliance Automotive Case SMC Packaging 3000/Tape & Reel * xx = Device type, e.g. B520C-13-F (SMC package). Notes: 1. EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant. All applicable RoHS exemptions applied. 2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain
