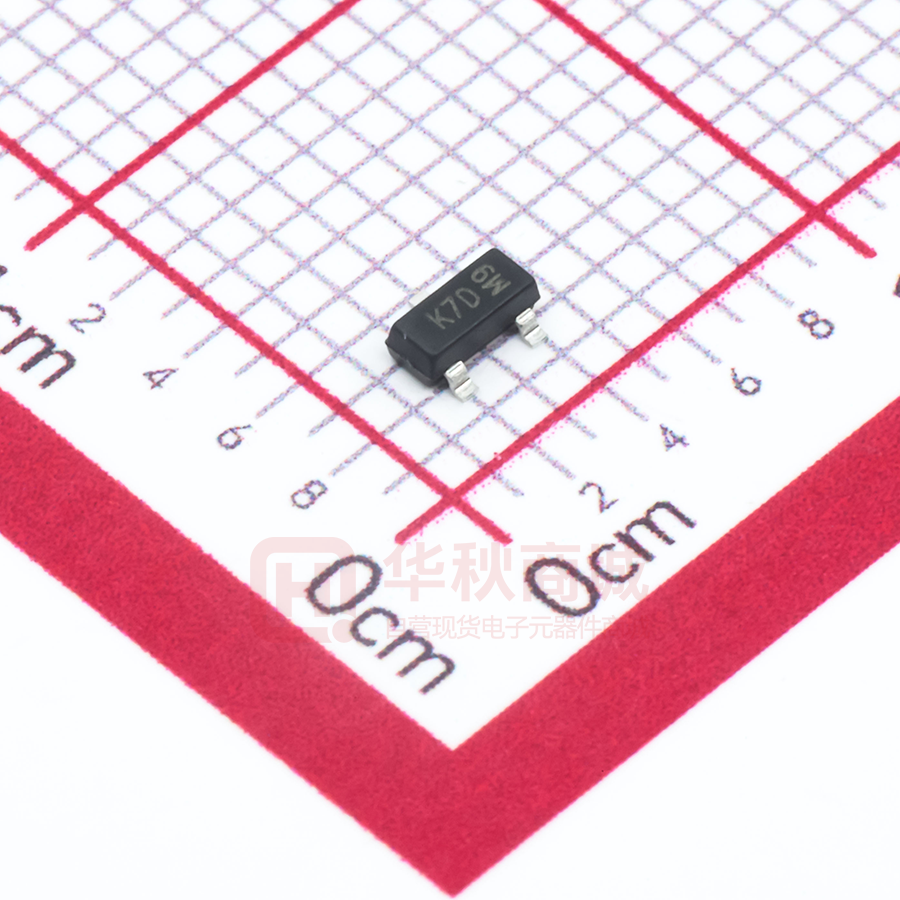

BAS70-04Q-7-F

BAS70/ -04/ -05/ -06 SURFACE MOUNT SCHOTTKY BARRIER DIODE Product Summary VR (V) IF (mA) 70 1.0 Features and Benefits VF MAX (V) @ +25°C 0.41       IR MAX (μA) @ +25°C 0.1 Description 70mA surface mount Schottky Barrier Diode in SOT23 package, offers low forward voltage drop and fast switching capability, designed with PN Junction Guard Ring for Transient and ESD Protection.  Low Turn-On Voltage Fast Switching PN Junction Guard Ring for Transient and ESD Protection Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) Halogen and Antimony Free. “Green” Device (Note 3) For automotive applications requiring specific change control (i.e.: parts qualified to AEC-Q100/101/200, PPAP capable, and manufactured in IATF 16949 certified facilities), please refer to the related automotive grade (Q-suffix) part. A listing can be found at https://www.diodes.com/products/automotive/automotiveproducts/. This part is qualified to JEDEC standards (as references in AEC-Q) for High Reliability. https://www.diodes.com/quality/product-definitions/ Mechanical Data       Case: SOT23 Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020 Terminals: Solderable per MIL-STD-202, Method 208 Lead Free Plating (Matte Tin Finish Annealed over Alloy 42 Leadframe) e3 Polarity: See Diagrams Below Weight: 0.008 grams (Approximate) SOT23 Top View BAS70 BAS70-04 BAS70-05 BAS70-06 Ordering Information (Notes 4 & 5) Part Number BAS70-7-F BAS70-04-7-F BAS70-04Q-7-F BAS70-04Q-13-F BAS70-05-7-F BAS70-06-7-F Notes: Case SOT23 SOT23 SOT23 SOT23 SOT23 SOT23 Packaging 3000/Tape & Reel 3000/Tape & Reel 3000/Tape & Reel 10000/Tape & Reel 3000/Tape & Reel 3000/Tape & Reel 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant. 2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain
