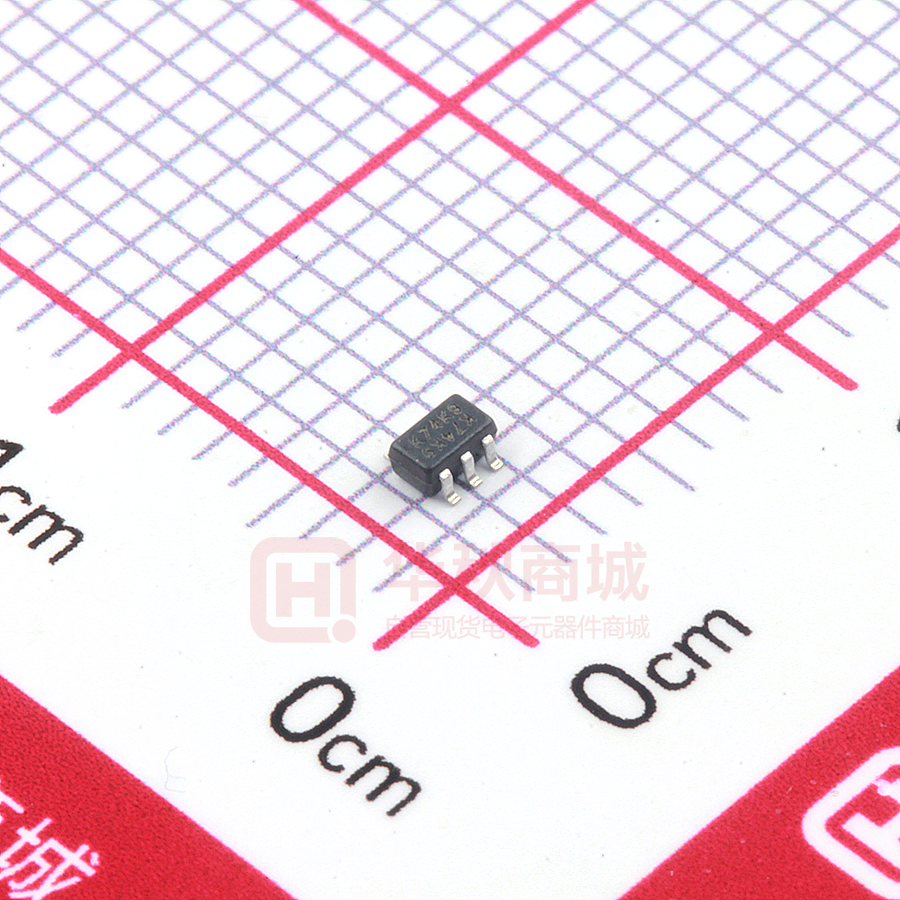

BAS70DW-04-7-F

BAS70TW /DW-04 /DW-05 /DW-06 /BRW SURFACE MOUNT SCHOTTKY BARRIER DIODE ARRAYS Product Summary VR (V) IF (mA) 70 1.0 Features VF MAX (V) @ +25°C 0.41         IR MAX (µA) @ +25°C 0.10 Mechanical Data Description and Applications This Schottky Barrier Arrays is designed with low leakage performance in a variety of configurations. This reduces component placement costs by requiring only one component. Designed to meet AEC-Q101 requirements. Configurations are ideally suited to use as:       1 A1 Top View C1 C2 AC A2 AC A1 2 BAS70BRW 1   Case: SOT363 Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020 Terminals: Lead Free Plating (Matte Tin Finish Annealed over Alloy 42 Leadframe). Solderable per MIL-STD-202, Method 208 Orientation: See Diagrams Below Weight: 0.006 grams (Approximate)     Polarity Protection Diode Rail-to-Rail Data Line Protection for Two Data Lines Multiplexing Circuits High-Efficiency, Low-Current Bridge Rectifier Circuits Re-Circulating Diode Switching Diode AC Low Forward Voltage Drop Fast Switching Ultra-Small Surface Mount Package PN Junction Guard Ring for Transient and ESD Protection Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) Halogen and Antimony Free. “Green” Device (Note 3) Qualified to AEC-Q101 Standards for High Reliability PPAP Capable (Note 4) A2 C2 AC C1 2 BAS70DW-04* C1 A2 A2 A1 C2 C2 C1 C2 C3 A1 A1 C2 C1 C1 A2 A1 A2 A3 BAS70DW-05* BAS70DW-06* BAS70TW *Symmetrical configuration, no orientation indicator. Ordering Information (Notes 5 & 6) Part Number BAS70DW-04-7-F BAS70DW-04-13-F BAS70DW-05-7-F BAS70DW-05Q-7-F BAS70DW-06-7-F BAS70BRW-7-F BAS70TW-7-F BAS70TW-13-F Notes: Compliance AEC-Q101 AEC-Q101 AEC-Q101 Automotive AEC-Q101 AEC-Q101 AEC-Q101 AEC-Q101 Case SOT363 SOT363 SOT363 SOT363 SOT363 SOT363 SOT363 SOT363 Packaging 3000/Tape & Reel 10000/Tape & Reel 3000/Tape & Reel 3000/Tape & Reel 3000/Tape & Reel 3000/Tape & Reel 3000/Tape & Reel 10000/Tape & Reel 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. 2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain
