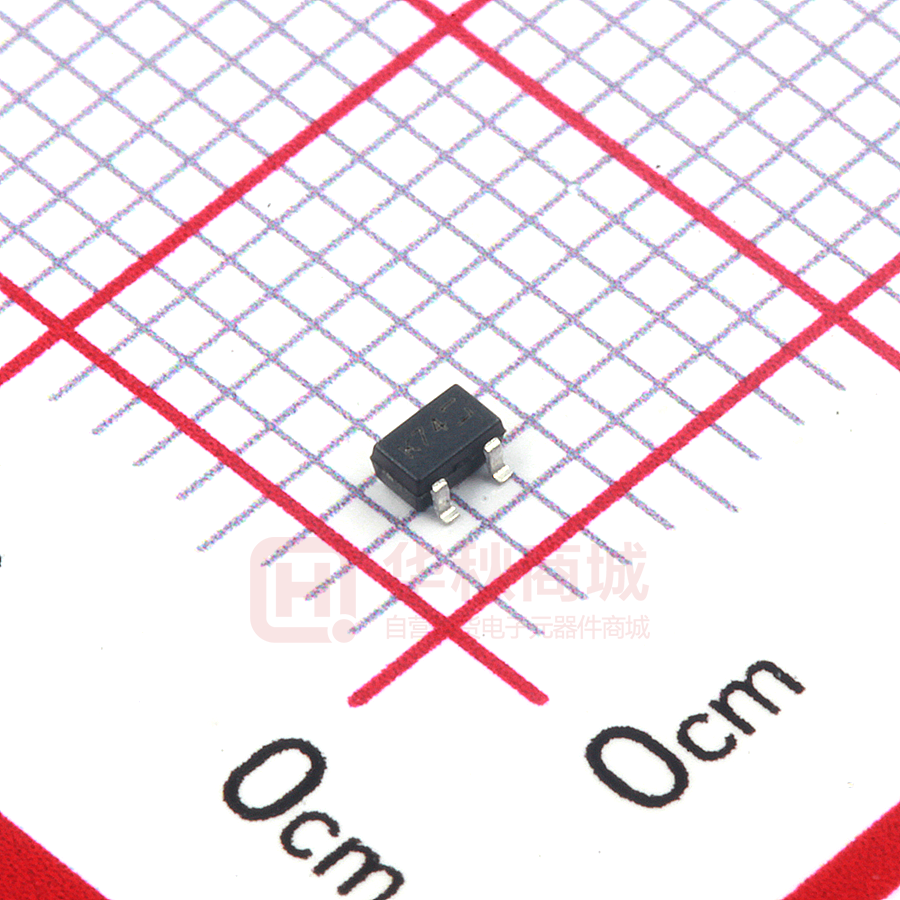

BAS70W-04-7-F

BAS70W /-04 /-05 /-06 SURFACE MOUNT SCHOTTKY BARRIER DIODE Please click here to visit our online spice models database. Features Mechanical Data • • • • • • • • Low Turn-on Voltage Fast Switching PN Junction Guard Ring for Transient and ESD Protection Ultra-Small Surface Mount Package Lead Free/RoHS Compliant (Note 3) "Green" Device (Note 4 and 5) • • • • • • • Top View Maximum Ratings BAS70W Case: SOT-323 Case Material: Molded Plastic, "Green" Molding Compound, Note 5. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020D Terminals: Solderable per MIL-STD-202, Method 208 Lead Free Plating (Matte Tin Finish annealed over Alloy 42 leadframe). Polarity: See Diagrams Below Marking Information: See Page 2 Ordering Information: See Page 2 Weight: 0.006 grams (approximate) BAS70W-04 BAS70W-05 BAS70W-06 @TA = 25°C unless otherwise specified Characteristic Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage RMS Reverse Voltage Forward Continuous Current (Note 1) Non-Repetitive Peak Forward Surge Current @ tp < 1.0s Symbol VRRM VRWM VR VR(RMS) IF IFSM Value Unit 70 V 49 70 100 V mA mA Symbol PD RθJA TJ TSTG Value 200 625 -55 to +125 -65 to +150 Unit mW °C/W °C °C Thermal Characteristics Characteristic Power Dissipation (Note 1) Thermal Resistance Junction to Ambient Air (Note 1) Operating Temperature Range Storage Temperature Range Electrical Characteristics Characteristic Reverse Breakdown Voltage (Note 2) @TA = 25°C unless otherwise specified Symbol V(BR)R Min 70 Forward Voltage VF — Reverse Current (Note 2) Total Capacitance IR CT Reverse Recovery Time trr Notes: Unit — ⎯ ⎯ Max — 410 1000 100 2.0 — 5.0 ns mV nA pF Test Condition IR = 10μA tp
