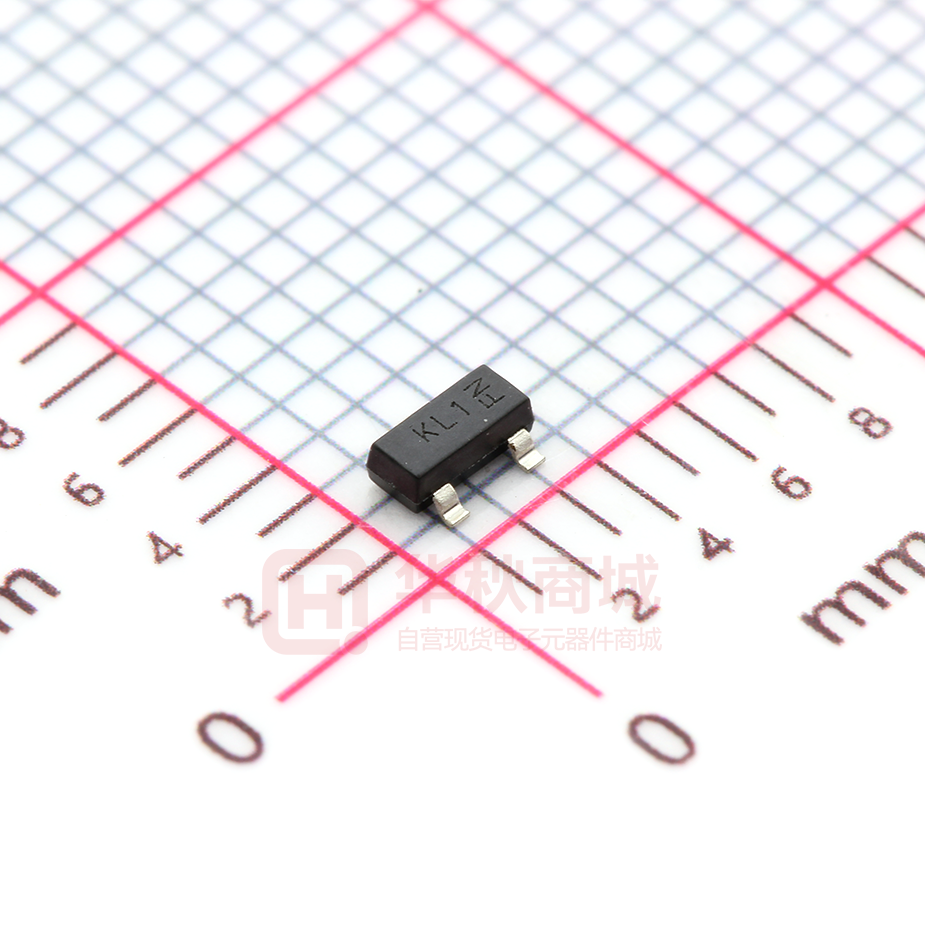

BAT54-7-F

BAT54 /A /C /S SURFACE MOUNT SCHOTTKY BARRIER DIODE Product Summary (@TA = +25°C) Features and Benefits VRRM (V) IO (mA) VFmax (V) IRmax (μA) 30 200 0.8 2        Low Turn-on Voltage Fast Switching PN Junction Guard Ring for Transient and ESD Protection Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) Halogen and Antimony Free. “Green” Device (Note 3) Qualified to AEC-Q101 Standards for High Reliability An Automotive-Compliant Part is Available Under Separate Datasheet (BAT54Q_AQ_CQ_SQ) Description Mechanical Data 200mA surface mount Schottky Barrier Diode in SOT23 package, offers low turn-on voltage and fast switching capability, designed with PN Junction Guard Ring for Transient and ESD Protection, totally lead-free finish and RoHS compliant, ”Green” device.       Top View BAT54 Case: SOT23 Case Material: Molded Plastic, “Green” Molding Compound. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020 Terminals: Matte Tin Finish Annealed over Alloy 42 Leadframe (Lead Free Plating). Solderable per MIL-STD-202, Method 208 Polarity: See Diagrams Below Weight: 0.008 grams (Approximate) BAT54A BAT54C BAT54S Ordering Information (Note 4) Part Number BAT54-7-F BAT54A-7-F BAT54C-7-F BAT54S-7-F BAT54-13-F BAT54A-13-F Notes: Compliance Standard Standard Standard Standard Standard Standard Case SOT23 SOT23 SOT23 SOT23 SOT23 SOT23 Packaging 3000/Tape & Reel 3000/Tape & Reel 3000/Tape & Reel 3000/Tape & Reel 10,000/Tape & Reel 10,000/Tape & Reel 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. 2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain
