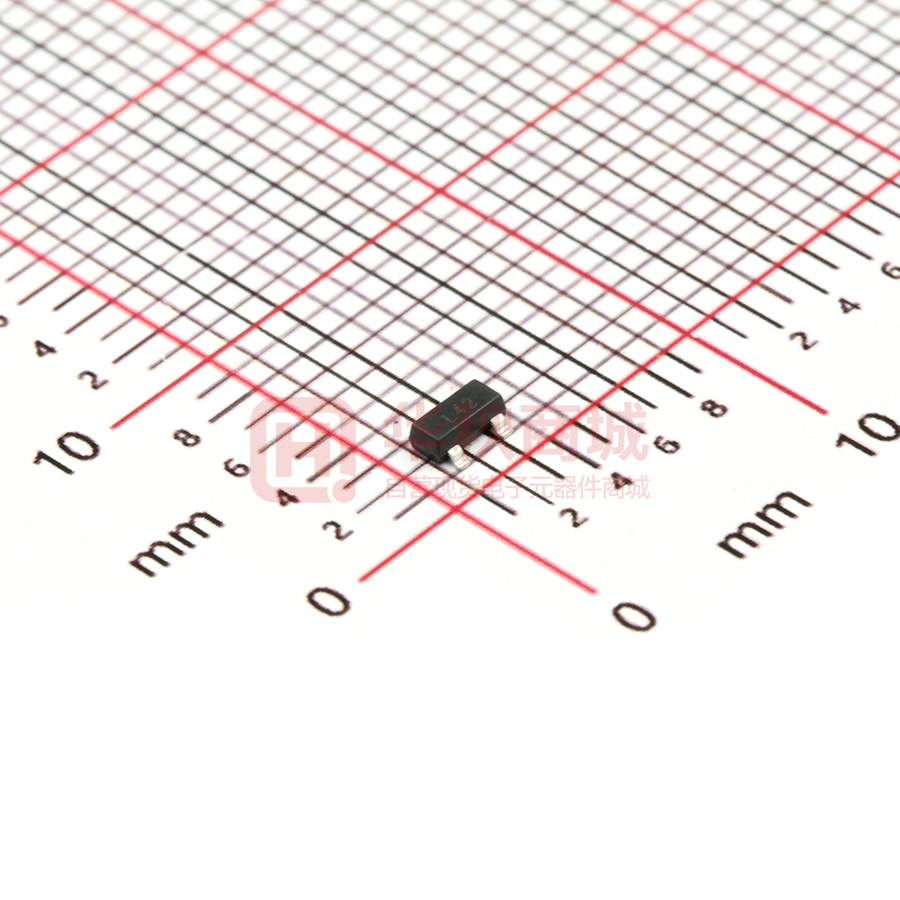

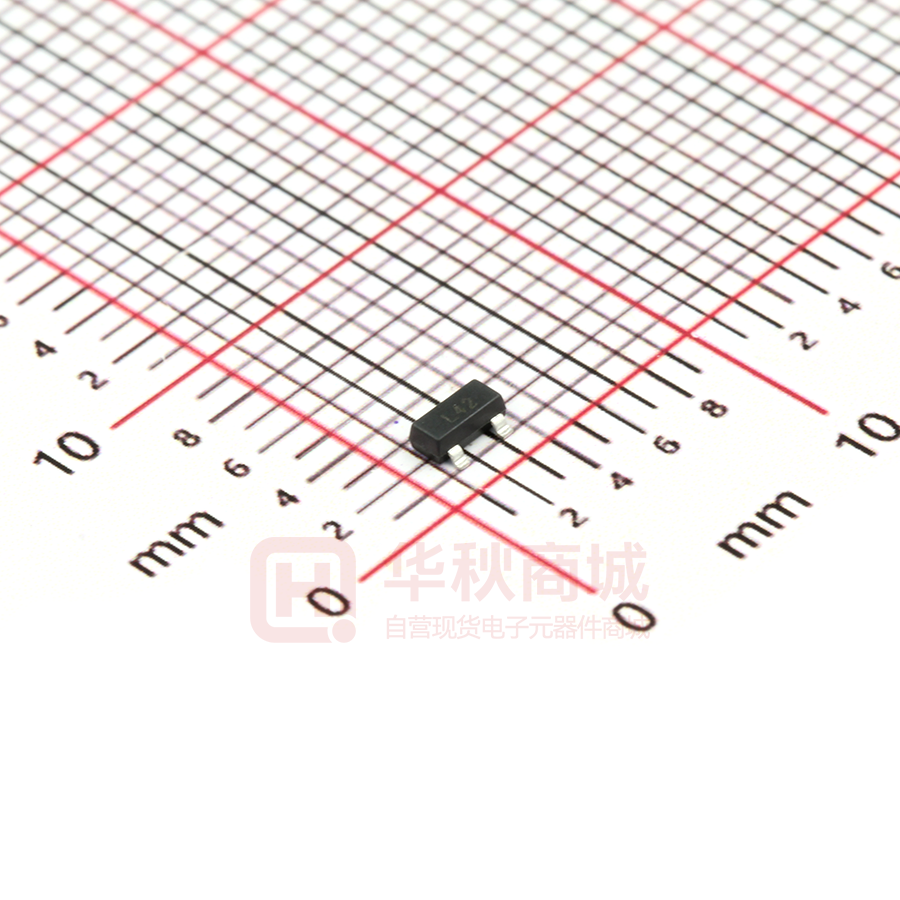

BAT54ATA

BAT54 /A /C /S TA SURFACE MOUNT SCHOTTKY BARRIER DIODE Product Summary (@TA = +25°C) Features and Benefits VRRM (V) IO (mA) VFmax (V) IRmax (μA) 30 200 0.8 2       Description 200mA surface mount Schottky barrier diode in SOT23 (Standard) package, offers low turn-on voltage and fast switching capability, designed with PN junction guard ring for transient and ESD protection, totally lead-free finish and RoHS compliant, ”Green” device.  Low Turn-On Voltage Fast Switching PN Junction Guard Ring for Transient and ESD Protection Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) Halogen and Antimony Free. “Green” Device (Note 3) For automotive applications requiring specific change control (i.e.: parts qualified to AEC-Q100/101/104/200, PPAP capable, and manufactured in IATF 16949 certified facilities), please refer to the related automotive grade (Q-suffix) part. A listing can be found at https://www.diodes.com/products/automotive/automotiveproducts/. This part is qualified to JEDEC standards (as references in AEC-Q) for High Reliability. https://www.diodes.com/quality/product-definitions/ Mechanical Data       Package: SOT23 Package Material: Molded Plastic, “Green” Molding Compound. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020 Terminals: Matte Tin Finish Annealed over Alloy 42 Leadframe (Lead Free Plating). Solderable per MIL-STD-202, Method 208 Polarity: See Diagrams Below Weight: 0.008 grams (Approximate) SOT23 (Standard) Top View BAT54TA BAT54ATA BAT54CTA BAT54STA Ordering Information (Note 4) Notes: Part Number Package BAT54TA BAT54ATA BAT54CTA BAT54STA SOT23 (Standard) SOT23 (Standard) SOT23 (Standard) SOT23 (Standard) Packing Qty. 3,000 3,000 3,000 3,000 Carrier Tape & Reel Tape & Reel Tape & Reel Tape & Reel 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant. 2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain
