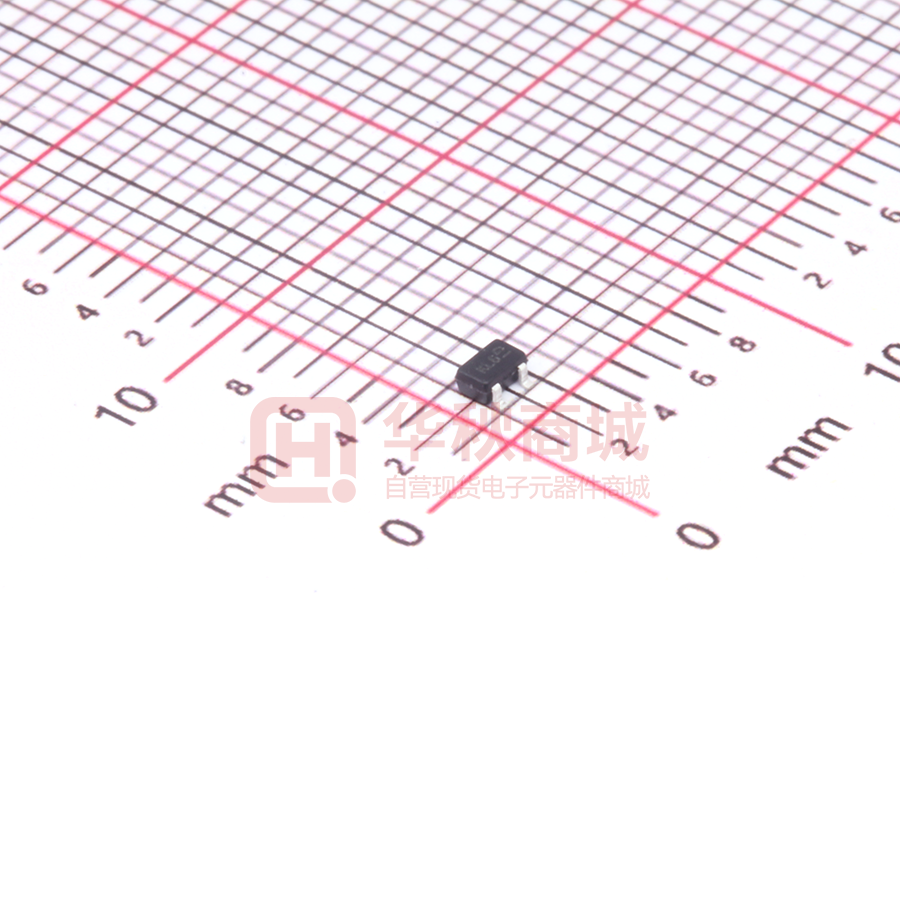

BAT54AW-7-F

BAT54W /AW /CW /SW SURFACE MOUNT SCHOTTKY BARRIER DIODE Product Summary (@ +25°C) Features and Benefits VRRM (V) IF (mA) VF Max (mV) @ 1mA IR Max (µA) @ 25V 30 200 320 2        Low Forward Voltage Drop Fast Switching Ultra-Small Surface Mount Package PN Junction Guard Ring for Transient and ESD Protection Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) Halogen and Antimony Free. “Green” Device (Note 3) An Automotive-Compliant Part is Available Under Separate Datasheet (BAT54WQ /AWQ /CWQ /SWQ) Mechanical Data Applications        SMPS DC-DC Converter Freewheeling Diodes Reverse Polarity Protection Blocking Diodes     Case: SOT323 Case Material: Molded Plastic, "Green" Molding Compound. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020 Terminals: Matte Tin Finish Annealed over Alloy 42 Leadframe. (Lead Free Plating). Solderable per MIL-STD-202, Method 208 Polarity: See Diagrams Below Weight: 0.006 grams (Approximate) SOT323 Top View BAT54W BAT54AW BAT54CW BAT54SW Ordering Information (Note 4) Part Number BAT54W-7-F BAT54W-13-F BAT54AW-7-F BAT54AW-13-F BAT54CW-7-F BAT54CW-13-F BAT54SW-7-F BAT54SW-13-F Notes: Compliance Standard Standard Standard Standard Standard Standard Standard Standard Case SOT323 SOT323 SOT323 SOT323 SOT323 SOT323 SOT323 SOT323 Packaging 3000/Tape & Reel 10000/Tape & Reel 3000/Tape & Reel 10000/Tape & Reel 3000/Tape & Reel 10000/Tape & Reel 3000/Tape & Reel 10000/Tape & Reel 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. 2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain
