BAT54W /AW /CW /SW
SURFACE MOUNT SCHOTTKY BARRIER DIODE
Product Summary (@ +25°C)
Features and Benefits
VRRM (V)
IF (mA)
VF Max
(mV)
@ 1mA
IR Max (µA)
@ 25V
30
200
320
2
Low Forward Voltage Drop
Fast Switching
Ultra-Small Surface Mount Package
PN Junction Guard Ring for Transient and ESD Protection
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
An Automotive-Compliant Part is Available Under Separate
Datasheet (BAT54WQ /AWQ /CWQ /SWQ)
Mechanical Data
Applications
SMPS
DC-DC Converter
Freewheeling Diodes
Reverse Polarity Protection
Blocking Diodes

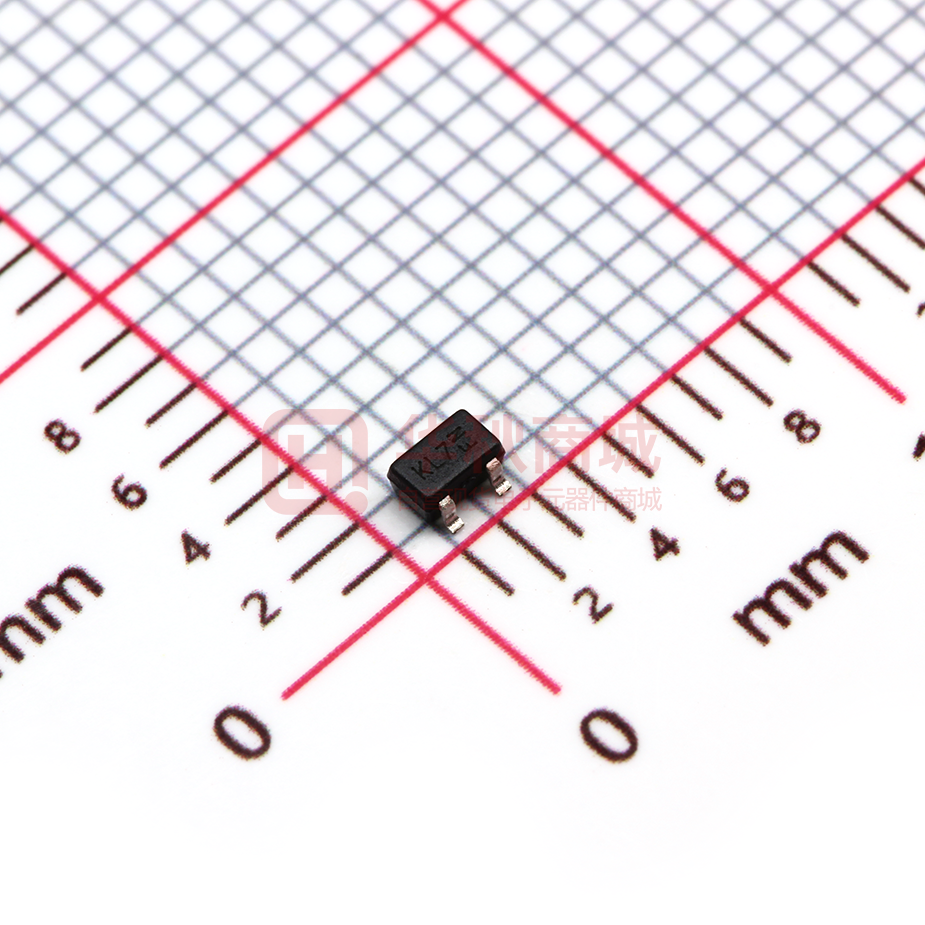

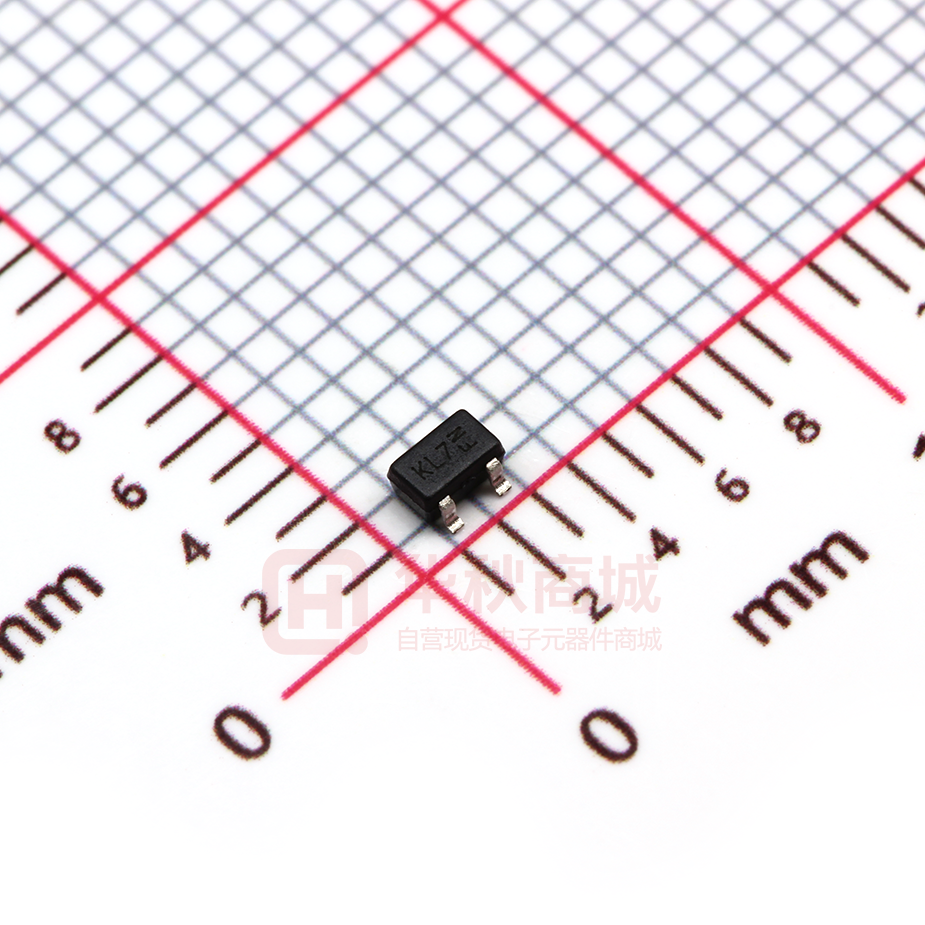

Case: SOT323
Case Material: Molded Plastic, "Green" Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Matte Tin Finish Annealed over Alloy 42 Leadframe.
(Lead Free Plating). Solderable per MIL-STD-202, Method 208
Polarity: See Diagrams Below
Weight: 0.006 grams (Approximate)
SOT323
Top View
BAT54W
BAT54AW
BAT54CW
BAT54SW
Ordering Information (Note 4)
Part Number
BAT54W-7-F
BAT54W-13-F
BAT54AW-7-F
BAT54AW-13-F
BAT54CW-7-F
BAT54CW-13-F
BAT54SW-7-F
BAT54SW-13-F
Notes:
Compliance
Standard
Standard
Standard
Standard
Standard
Standard
Standard
Standard
Case
SOT323
SOT323
SOT323
SOT323
SOT323
SOT323
SOT323
SOT323
Packaging
3000/Tape & Reel
10000/Tape & Reel
3000/Tape & Reel
10000/Tape & Reel
3000/Tape & Reel
10000/Tape & Reel
3000/Tape & Reel
10000/Tape & Reel
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain
