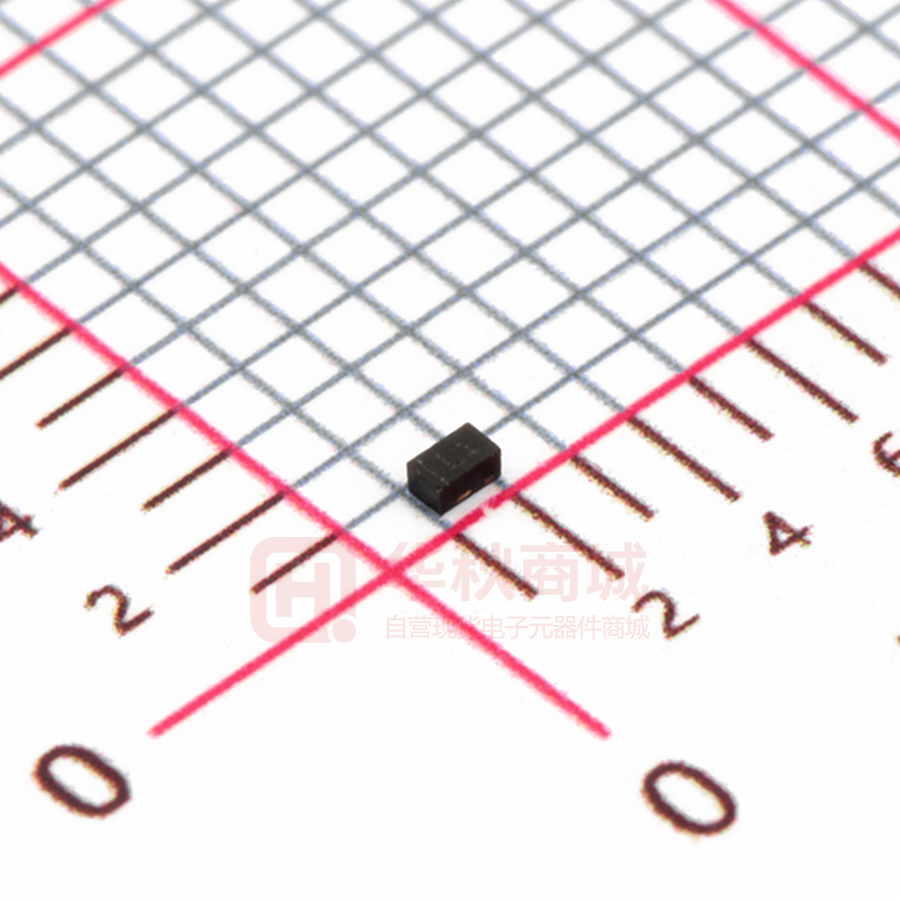

BAT54LP-7

BAT54LP SURFACE MOUNT SCHOTTKY BARRIER DIODE Features Mechanical Data          Low Forward Voltage Drop Fast Switching Ultra-Small Leadless Surface Mount Package PN Junction Guard Ring for Transient and ESD Protection Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) Halogen and Antimony Free. “Green” Device (Note 3) Qualified to AEC-Q101 Standards for High Reliability Case: X1-DFN1006-2 Case Material: Molded Plastic, "Green" Molding Compound. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020 Terminal Connections: Cathode Bar/Dot Terminals: Finish - NiPdAu Annealed over Copper Leadframe. Solderable per MIL-STD-202, Method 208 e4 Weight: 0.001 grams (Approximate)     X1-DFN1006-2 Top View Bottom View Ordering Information (Note 4) Part Number BAT54LP-7 BAT54LP-7B Notes: Case X1-DFN1006-2 X1-DFN1006-2 Packaging 3,000/Tape & Reel 10,000/Tape & Reel 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. 2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain
