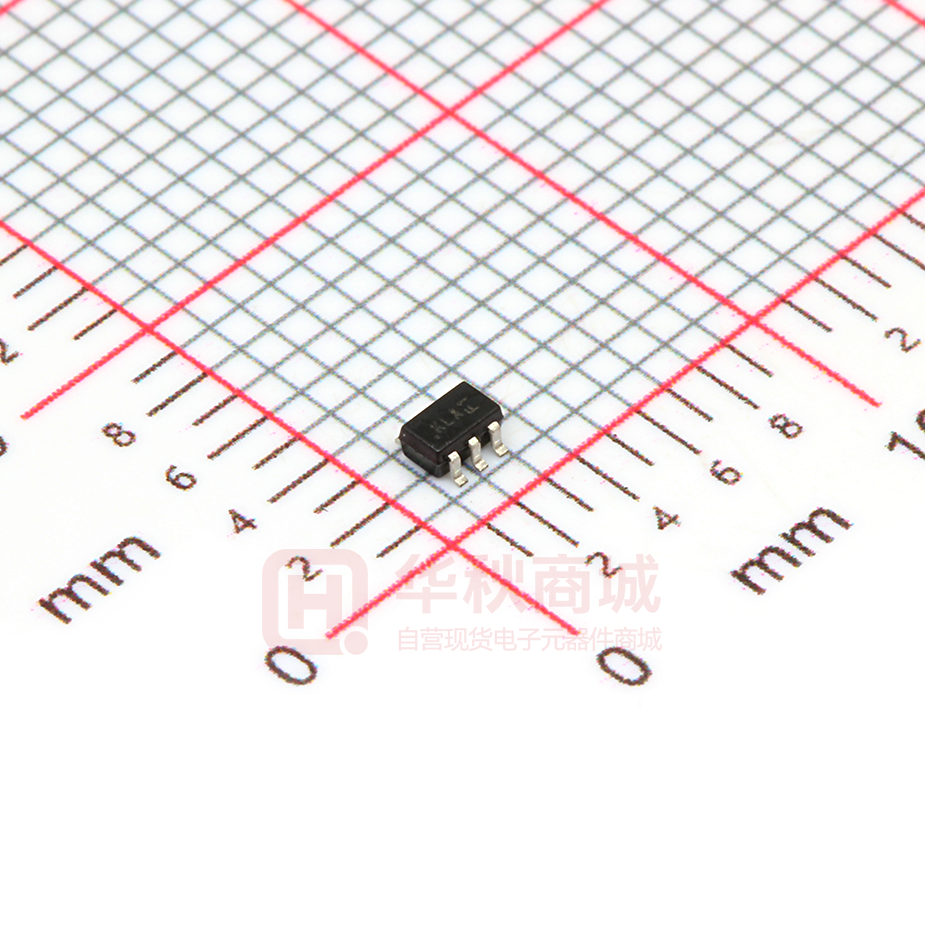

BAT54TW-7-F

BAT54TW /ADW / CDW /SDW /BRW SURFACE MOUNT SCHOTTKY BARRIER DIODE ARRAYS Features Mechanical Data  Low Forward Voltage Drop  Case: SOT-363  Fast Switching  Case Material: Molded Plastic.  Ultra-Small Surface Mount Package  PN Junction Guard Ring for Transient and ESD Protection  Moisture Sensitivity: Level 1 per J-STD-020D  Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)  Terminals: Solderable per MIL-STD-202, Method 208  Halogen and Antimony Free.“Green”Devise (Note 3)  Lead Free Plating (Matte Tin Finish annealed over Alloy 42 Leadframe).  Weight: 0.006 grams (Approximate) Top View UL Flammability Classification Rating 94V-0 A1 C2 C2 C1 A2 A2 AC C1 C1 A2 A1 A1 C2 A1 BAT54ADW* 1 BAT54CDW* AC A2 C2 1 AC C1 A1 2 BAT54SDW* C1 C2 C1 C2 C3 A2 AC A1 A2 A3 2 BAT54BRW BAT54TW *Symmetrical configuration, no orientation indicator. Ordering Information (Note 4) Part Number BAT54ADW-7-F BAT54CDW-7-F BAT54SDW-7-F BAT54BRW-7-F BAT54TW-7-F Notes: Case SOT-363 SOT-363 SOT-363 SOT-363 SOT-363 Packaging 3,000/Tape & Reel 3,000/Tape & Reel 3,000/Tape & Reel 3,000/Tape & Reel 3,000/Tape & Reel 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. 2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain
