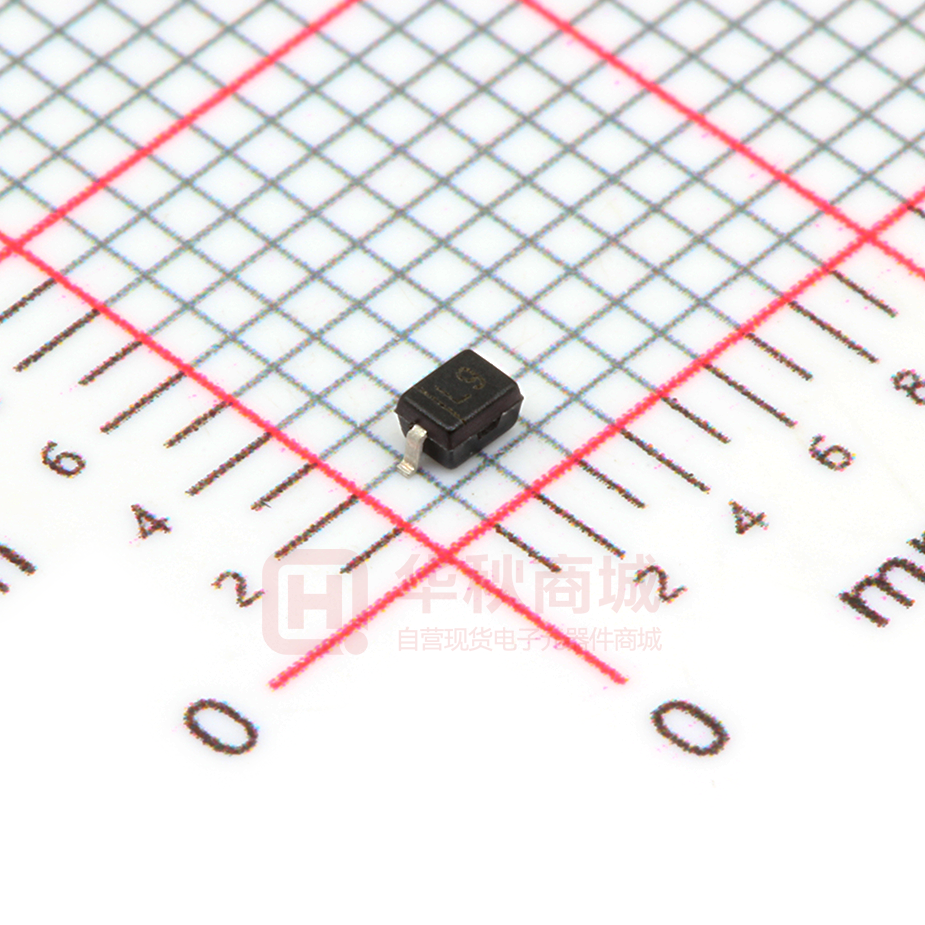

BAT54WS-7-F

BAT54WS SURFACE MOUNT SCHOTTKY BARRIER DIODE Product Summary (@ TA = +25°C) Features and Benefits VRRM (V) IO (mA) VF(MAX) (mV) IR(MAX) (µA) 30 100 1000 2 Description and Applications    Reverse Polarity Protection Ultra High-Speed Switching Freewheeling        Fast Switching Ultra-Small Surface Mount Package PN Junction Guard Ring for Transient and ESD Protection Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) Halogen and Antimony Free. “Green” Device (Note 3) Qualified to AEC-Q101 Standards for High Reliability PPAP Capable (Note 4) Mechanical Data      Case: SOD323 Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020 Leads: Solderable per MIL-STD-202, Method 208 Also Available in Lead Free Plating (Matte Tin Finish Annealed over Alloy 42 Leadframe). Polarity: Cathode Band e3 Weight: 0.004 grams (Approximate) Top View Ordering Information (Note 5) Part Number BAT54WS-7-F BAT54WSQ-7-F BAT54WS-13-F Notes: Case SOD323 SOD323 SOD323 Packaging 3000/Tape & Reel 3000/Tape & Reel 10000/Tape & Reel 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant 2. See http://www.diodes.com/quality/lead_free.htmlfor more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen and Antimony free "Green” products are defined as those which contain
