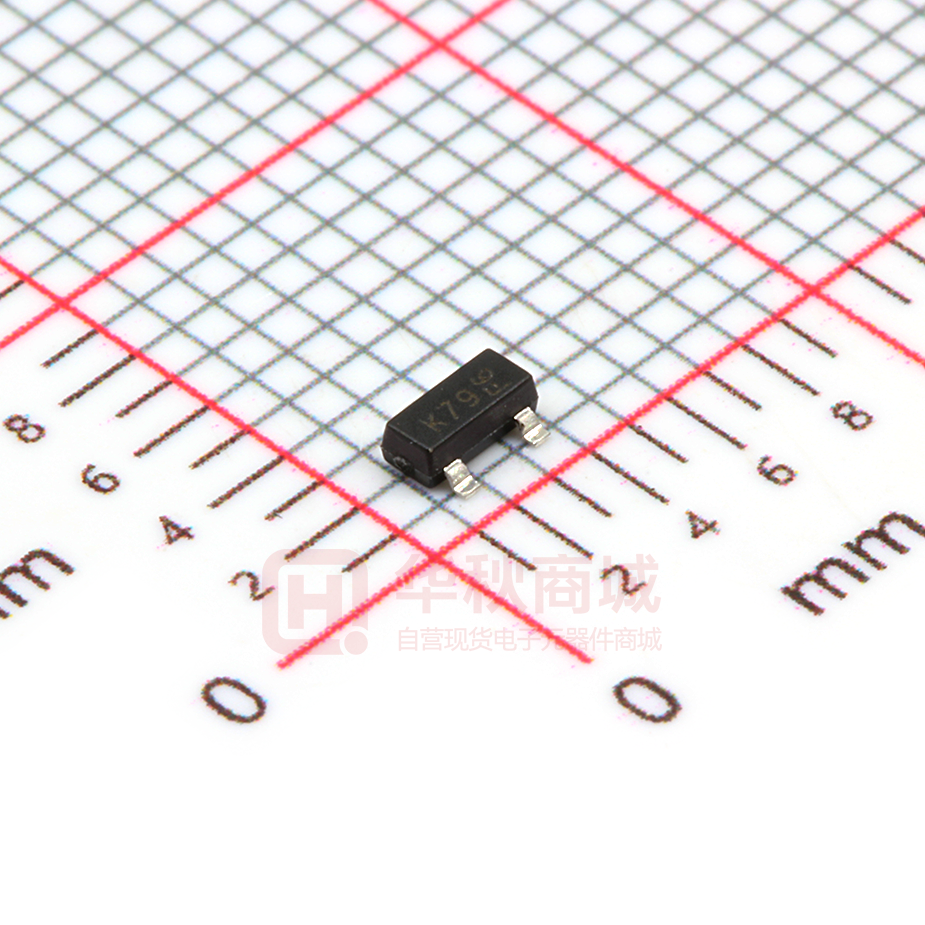

BAT750-7-F

BAT750 0.75A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER Please click here to visit our online spice models database. Features • • • • • Mechanical Data • • Very Low Forward Voltage Drop High Conductance For Use in DC-DC Converter, PCMCIA, and Mobile Telecommunications Applications Lead, Halogen and Antimony Free, RoHS Compliant "Green" Device (Notes 3 and 4) Qualified to AEC-Q101 Standards for High Reliability Case: SOT-23 Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020D Terminals: Solderable per MIL-STD-202, Method 208 Lead Free Plating (Matte Tin Finish annealed over Alloy 42 leadframe). Polarity: See Diagram Marking Information: See Page 3 Ordering Information: See Page 3 Weight: 0.008 grams (approximate) • • • • • • • TOP VIEW Top View Maximum Ratings Device Schematic @TA = 25°C unless otherwise specified Single phase, half wave, 60Hz, resistive or inductive load. For capacitance load, derate current by 20%. Characteristic Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage RMS Reverse Voltage Average Rectified Current Non-Repetitive Peak Forward Surge Current 8.3ms Single half sine-wave superimposed on rated load Symbol VRRM VRWM VR VR(RMS) IO Value Unit 40 V 28 0.75 V A IFSM 5.5 A Symbol PD RθJA TJ, TSTG Value 350 286 -55 to +125 Unit mW °C/W °C Thermal Characteristics Characteristic Power Dissipation (Note 1) Typical Thermal Resistance, Junction to Ambient Air (Note 1) Operating and Storage Temperature Range Electrical Characteristics Characteristic Reverse Breakdown Voltage (Note 2) Forward Voltage @TA = 25°C unless otherwise specified Symbol V(BR)R VF Reverse Current (Note 2) IR Total Capacitance CT Reverse Recovery Time trr Notes: 1. 2. 3. 4. Min 40 Typ 45 Max ⎯ Unit V ⎯ 225 235 290 340 390 420 475 280 310 350 420 490 540 650 mV ⎯ ⎯ ⎯ 50 175 25 100 ⎯ ⎯ μA pF pF ⎯ ⎯ 10 ns Test Condition IR = 300uA IF = 50mA IF = 100mA IF = 250mA IF = 500mA IF = 750mA IF = 1000mA IF = 1500mA VR = 30V VR = 0V, f = 1.0MHz VR = 25V, f = 1.0MHz IF = IR = 100mA, Irr = 10mA. See figure 6. Part mounted on FR-4 PC board with recommended pad layout, which can be found on our website at http://www.diodes.com/datasheets/ap02001.pdf. Short duration pulse test used to minimize self-heating effect. No purposefully added lead. Halogen and Antimony Free. Product manufactured with Data Code V9 (week 33, 2008) and newer are built with Green Molding Compound. Product manufactured prior to Date Code V9 are built with Non-Green Molding Compound and may contain Halogens or Sb2O3 Fire Retardants. BAT750 Document number: DS30216 Rev. 12 - 2 1 of 3 www.diodes.com June 2008 © Diodes Incorporated IF, INSTANTANEOUS FORWARD CURRENT (A) BAT750 10 10,000 1 1,000 TA = 125ºC 100 TA = -65ºC 0.1 10 TA = 0ºC 0.01 1.0 TA = 25ºC TA = 75ºC 0.001 0.1 TA = 100ºC 0.01 0.0001 10 20 30 40 0 VR, INSTANTANEOUS REVERSE VOLTAGE (V) Fig. 2 Typical Reverse Characteristics 0.2 0.4 0.6 0.8 1.0 0 VF, INSTANTANEOUS FORWARD VOLTAGE (V) Fig. 1 Typical Forward Characteristics 150 TA, AMBIENT TEMPERATURE (ºC) CT, TOTAL CAPACITANCE (pF) 1,000 100 10 1 0 5 10 15 25 30 35 20 40 VR, DC REVERSE VOLTAGE (V) Fig. 3 Total Capacitance vs. Reverse Voltage 125 100 75 50 25 1 20 30 40 50 10 VR, REVERSE VOLTAGE (V) Fig. 4 Typical Safe Operating Area 0.75 100mA 10mA trr Test Circuit 0.50 100mA IO, AVERAGE RECTIFIED CURRENT (A) 1.0 0.25 5V trr 0 0 50 100 75 125 TL, LEAD TEMPERATURE (°C) Fig. 5 Forward Current Derating Curve 25 BAT750 Document number: DS30216 Rev. 12 - 2 150 2 of 3 www.diodes.com June 2008 © Diodes Incorporated BAT750 Ordering Information (Note 5) Part Number BAT750-7-F Notes: Case SOT-23 Packaging 3000/Tape & Reel 5. For packaging details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf. YM Marking Information xxx xxx = Product Type Marking Code (K77 or K79) YM = Date Code Marking Y = Year ex: N = 2002 M = Month ex: 9 = September Date Code Key Year 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010 2011 2012 Code M N P R S T U V W X Y Z Month Jan Feb Mar Apr May Jun Jul Aug Sep Oct Nov Dec Code 1 2 3 4 5 6 7 8 9 O N D Package Outline Dimensions A B C G H K M J D F L SOT-23 Dim Min Max A 0.37 0.51 B 1.20 1.40 C 2.30 2.50 D 0.89 1.03 F 0.45 0.60 G 1.78 2.05 H 2.80 3.00 J 0.013 0.10 K 0.903 1.10 L 0.45 0.61 M 0.085 0.180 0° 8° α All Dimensions in mm Suggested Pad Layout Y Z C X Dimensions Value (in mm) Z 2.9 X 0.8 Y 0.9 C 2.0 E 1.35 E IMPORTANT NOTICE Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes without further notice to any product herein. Diodes Incorporated does not assume any liability arising out of the application or use of any product described herein; neither does it convey any license under its patent rights, nor the rights of others. The user of products in such applications shall assume all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on our website, harmless against all damages. LIFE SUPPORT Diodes Incorporated products are not authorized for use as critical components in life support devices or systems without the expressed written approval of the President of Diodes Incorporated. BAT750 Document number: DS30216 Rev. 12 - 2 3 of 3 www.diodes.com June 2008 © Diodes Incorporated
