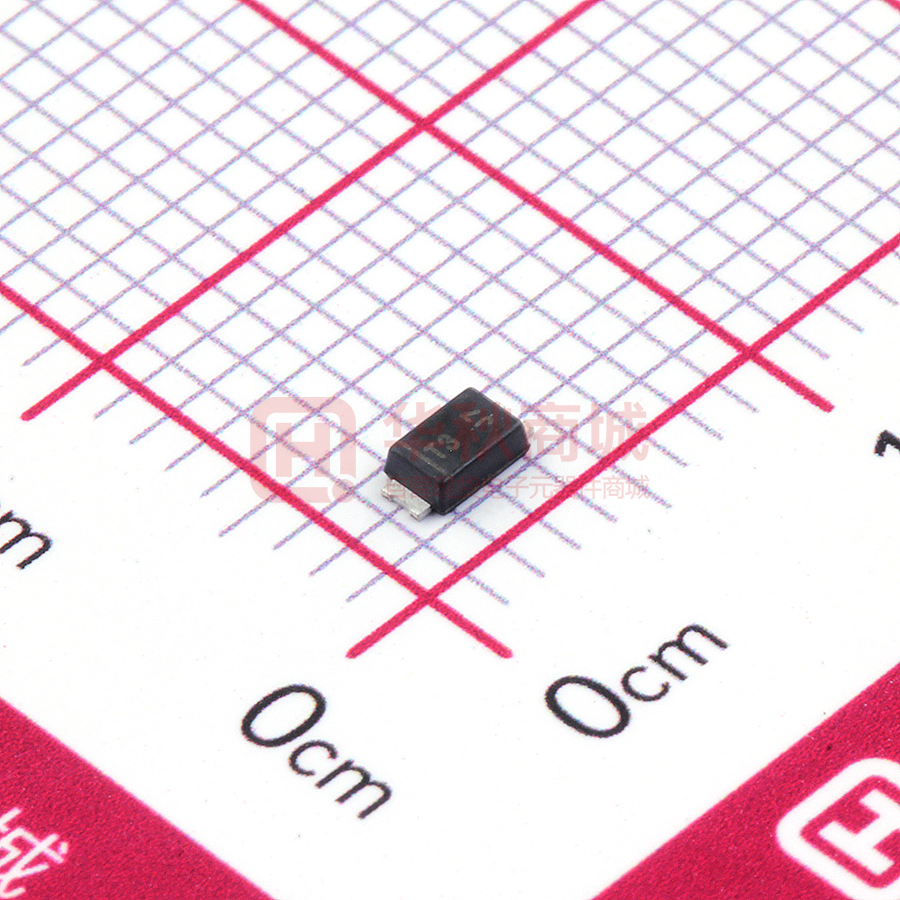

BAV21HWF-7

BAV21HWF SURFACE MOUNT HIGH VOLTAGE DIODE ADVANCED INFORMATION Product Summary (@TA = +25°C) Features VR IR trr  High Reverse Breakdown Voltage 250V 100nA 50ns  Flat Leadframe Design for Improved Thermal Transfer  High Conductance    Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) Halogen and Antimony Free. “Green” Device (Note 3) Qualified to AEC-Q101 Standards for High Reliability Description The BAV21HWF is a 250V, 100nA and 50ns switching diode that is optimized for high reverse breakdown voltage. Applications Mechanical Data It is ideally suited for use in applications such as the following:  Case: SOD123F  Case Material: Molded Plastic, "Green" Molding Compound.     Mobile Portable Electronics Consumer Electronics Automotive UL Flammability Classification Rating 94V-0  Moisture Sensitivity: Level 1 per J-STD-020  Terminal Connections: Cathode Bar  Terminals: Matte Tin Finish Annealed over Copper Alloy Leadframe. Solderable per MIL-STD-202, Method 208  Weight: 0.018 grams (Approximate) SOD123F Bottom View Top View Ordering Information (Note 4) Product BAV21HWF-7 Notes: Compliance AEC-Q101 Case SOD123F Packaging 3,000/Tape & Reel 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. 2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain
