BAV99W
DUAL SURFACE MOUNT SWITCHING DIODE
Features
Mechanical Data
•
•
•
•
•
•
•
•
•
Fast Switching Speed
Small Surface Mount Package
For General Purpose Switching Applications
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
PPAP Capable (Note 4)
•
•
•
•

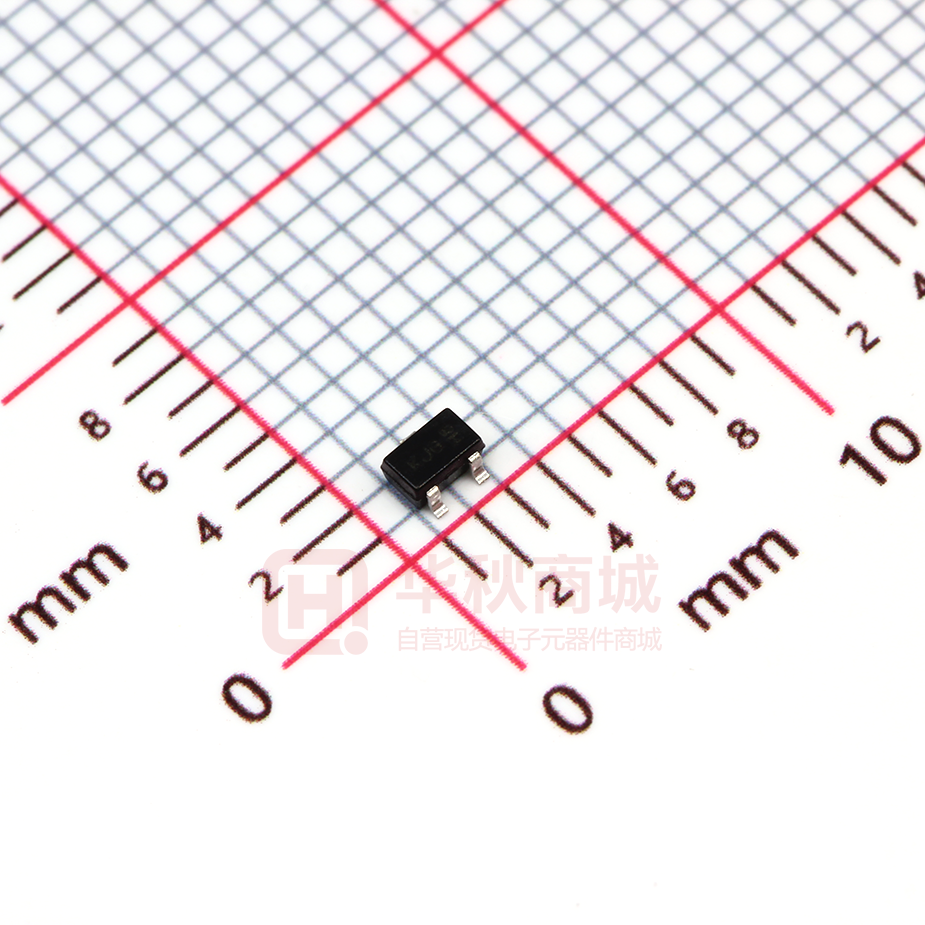

Case: SOT323
Case Material: Molded Plastic, "Green" Molding Compound,
(Note 5); UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Matte Tin Finish annealed over Alloy 42 Leadframe
(Lead Free Plating). Solderable per MIL-STD-202, Method 208
Polarity: See Diagram
Weight: 0.006 grams (Approximate)
SOT323
Top View
Internal Schematic
Top View
Ordering Information (Notes 5 & 6)
Part Number
BAV99W-7-F
BAV99W-13-F
BAV99WQ-7-F
Notes:
Qualification
Commercial
Commercial
Automotive
Case
SOT323
SOT323
SOT323
Packaging
3000/Tape & Reel
10,000/Tape & Reel
3000/Tape & Reel
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant.
2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and
Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain
