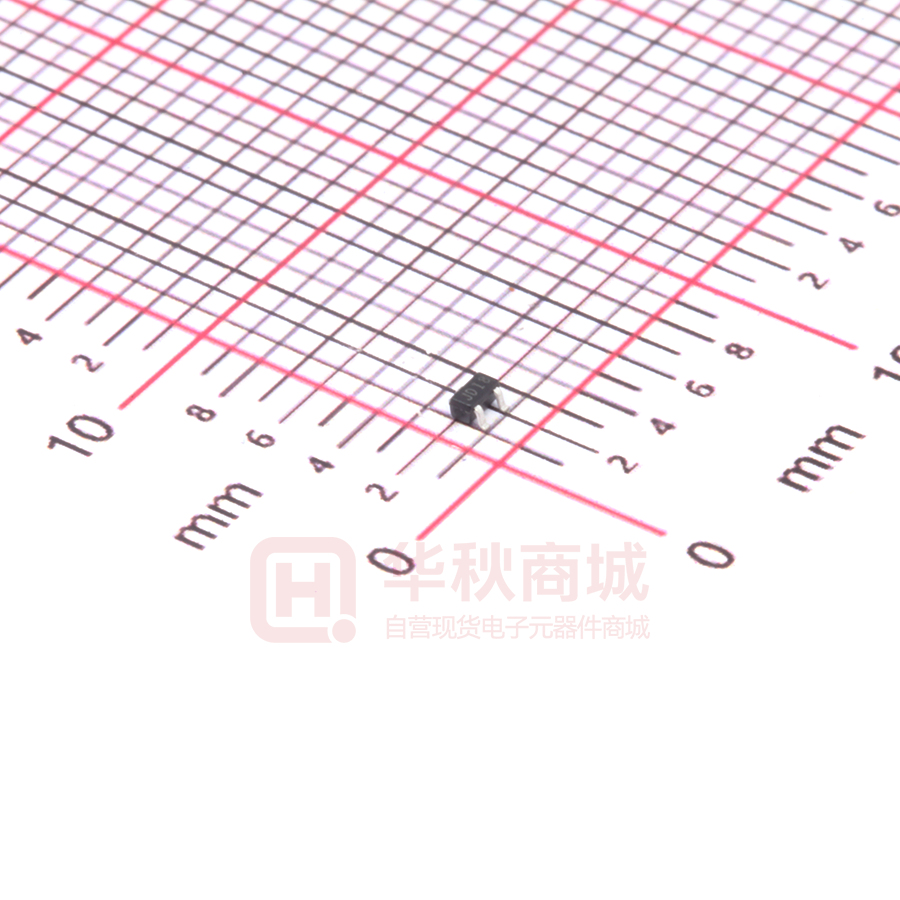

BAW56T-7-F

BAS16T/BAW56T/BAV70T/BAV99T SURFACE MOUNT FAST SWITCHING DIODE Features         Mechanical Data   Ultra-Small Surface Mount Package Fast Switching Speed For General Purpose Switching Applications High Conductance Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) Halogen and Antimony Free. “Green” Device (Note 3) The Q BAV99TQ suitable for automotive applications requiring specific change control; this part is AEC-Q101 qualified, PPAP capable, and manufactured in IATF 16949 certified facilities. https://www.diodes.com/quality/product-definitions/ This part is qualified to JEDEC standards (as referenced in AEC-Q) for High Reliability. https://www.diodes.com/quality/product-definitions/     Case: SOT-523 Case Material: Molded Plastic, “Green” Molding Compound; UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020 Terminals: Matte Tin Finish Annealed over Alloy 42 Leadframe (Lead-Free Plating); Solderable per MIL-STD-202, Method 208 Polarity: See Diagrams Below Weight: 0.002 grams (Approximate) SOT-523 TOP VIEW BAS16T Marking: A2 BAW56T Marking: JD BAV70T Marking: JJ BAV99T Marking: JE Ordering Information (Note 4) Part Number BAS16T-7-F BAW56T-7-F BAV70T-7-F BAV99T-7-F BAV99T-13-F BAV99TQ-13-F Notes: Compliance Standard Standard Standard Standard Standard Automotive Case SOT523 SOT523 SOT523 SOT523 SOT523 SOT523 Packaging 3000/Tape & Reel 3000/Tape & Reel 3000/Tape & Reel 3000/Tape & Reel 10,000/Tape & Reel 10,000/Tape & Reel 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant. 2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain
