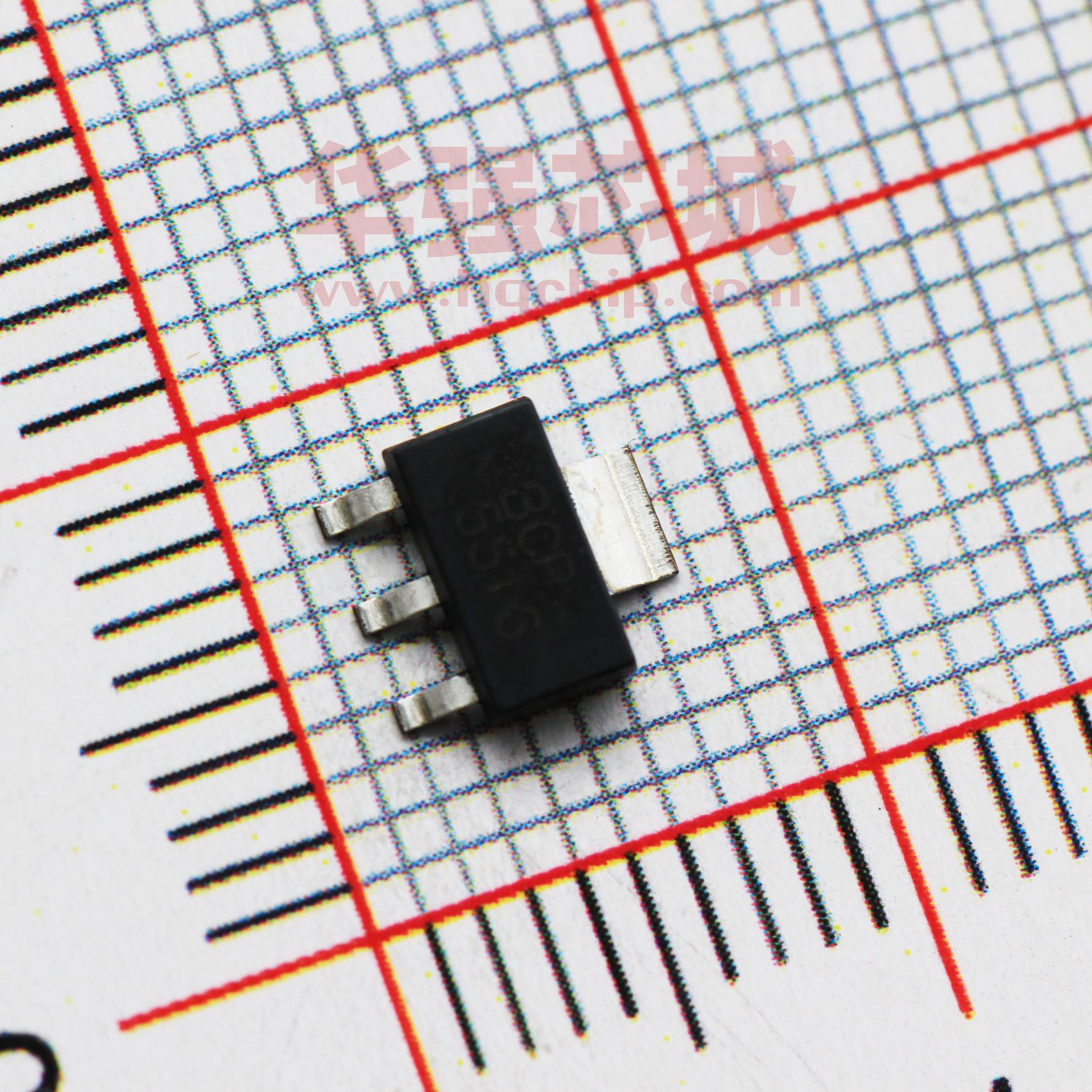

BCP5516TA

BCP 54/ 55/ 56 NPN MEDIUM POWER TRANSISTORS IN SOT223 Features Mechanical Data    BVCEO > 45V, 60V & 80V IC = 1A High Continuous Collector Current ICM = 2A Peak Pulse Current     2W Power Dissipation Low Saturation Voltage VCE(sat) < 500mV @ 0.5A         Gain Groups 10 and 16 Complementary PNP Types: BCP51, 52 and 53 Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) Halogen and Antimony Free. “Green” Device (Note 3) Qualified to AEC-Q101 Standards for High Reliability PPAP Capable (Note 4)  Case: SOT223 Case Material: Molded Plastic. “Green” Molding Compound; UL Flammability Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020 Terminals: Finish - Matte Tin Plated Leads. Solderable per MIL-STD-202, Method 208 Weight: 0.112 grams (Approximate) Applications   Medium Power Switching or Amplification Applications AF Driver and Output Stages C SOT223 B E Top View Pin-Out Device Symbol Top View Ordering Information (Notes 4 & 5) Product BCP54TA BCP5410TA BCP5416TA BCP5416QTA BCP55TA BCP5510TA BCP5516TA BCP56TA BCP5610TA BCP5616TA BCP5616TC BCP5616QTA BCP5616QTC Notes: Compliance AEC-Q101 AEC-Q101 AEC-Q101 Automotive AEC-Q101 AEC-Q101 AEC-Q101 AEC-Q101 AEC-Q101 AEC-Q101 AEC-Q101 Automotive Automotive Marking BCP 54 BCP 5410 BCP 5416 BCP 5416 BCP 55 BCP 5510 BCP 5516 BCP 56 BCP 5610 BCP 5616 BCP 5616 Reel size (inches) Tape width (mm) Quantity per reel 7 12 1,000 7 12 1,000 7 12 1,000 7 12 1,000 7 12 1,000 7 12 1,000 7 12 1,000 7 12 1,000 7 12 1,000 7 12 1,000 13 12 4,000 Refer to http://diodes.com/datasheets/BCP5616Q.pdf Refer to http://diodes.com/datasheets/BCP5616Q.pdf 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. 2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain
