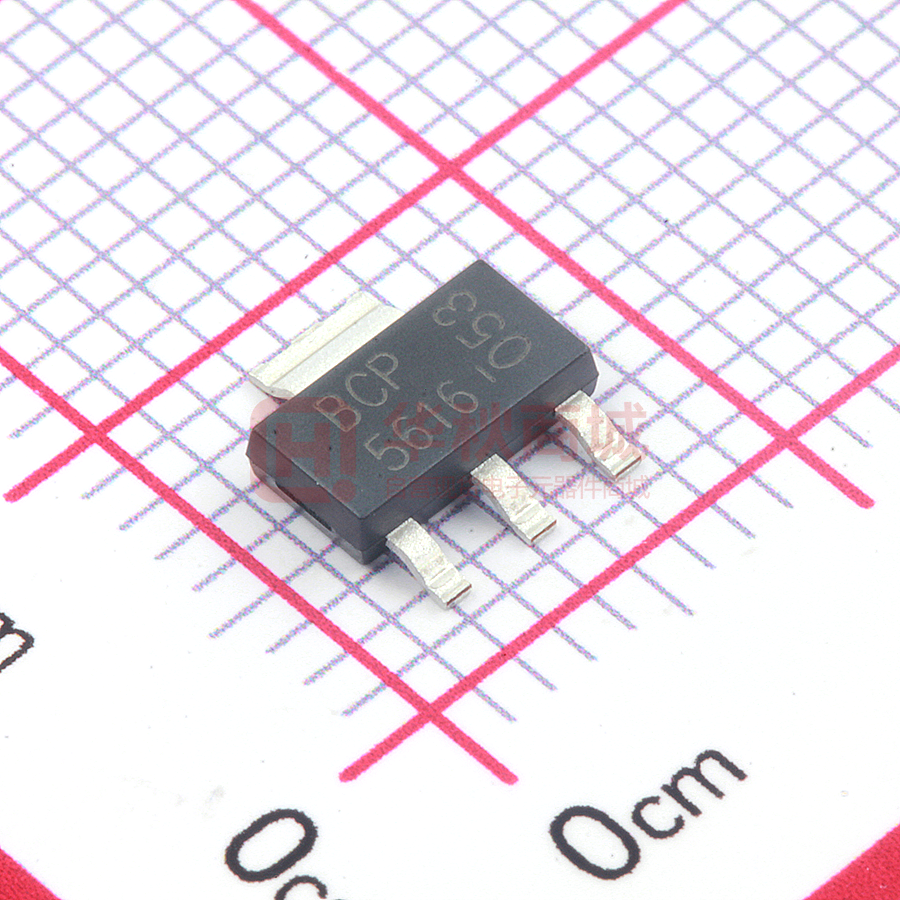

BCP5616QTA

BCP5616Q 80V NPN MEDIUM POWER TRANSISTOR IN SOT223 Description Applications This Bipolar Junction Transistor (BJT) is designed to meet the stringent requirements of Automotive Applications. • • Features Mechanical Data • • • BVCEO > 80V IC = 1A High Continuous Collector Current ICM = 2A Peak Pulse Current • • • • 2W Power Dissipation Low Saturation Voltage VCE(SAT) < 500mV @ 0.5A • • • • • • Complementary PNP Type: BCP5316Q Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) Halogen- and Antimony-Free. “Green” Device (Note 3) The BCP5616Q is suitable for automotive applications requiring specific change control; this part is AEC-Q101 qualified, PPAP capable, and manufactured in IATF16949 certified facilities. https://www.diodes.com/quality/product-definitions/ • SOT223 Medium Power Switching or Amplification Applications AF Driver and Output Stages Case: SOT223 Case Material: Molded Plastic, “Green” Molding Compound. UL Flammability Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020 Terminals: Finish – Matte Tin Plated Leads. Solderable per MIL-STD-202, Method 208 Weight: 0.112 grams (Approximate) C B E Top View Device Symbol Top View Pin-Out Ordering Information (Note 4) Product BCP5616QTA BCP5616QTC Notes: Compliance Automotive Automotive Marking BCP 5616 BCP 5616 Reel Size (inches) 7 13 Tape Width (mm) 12 12 Quantity per Reel 1,000 4,000 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant. 2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain
