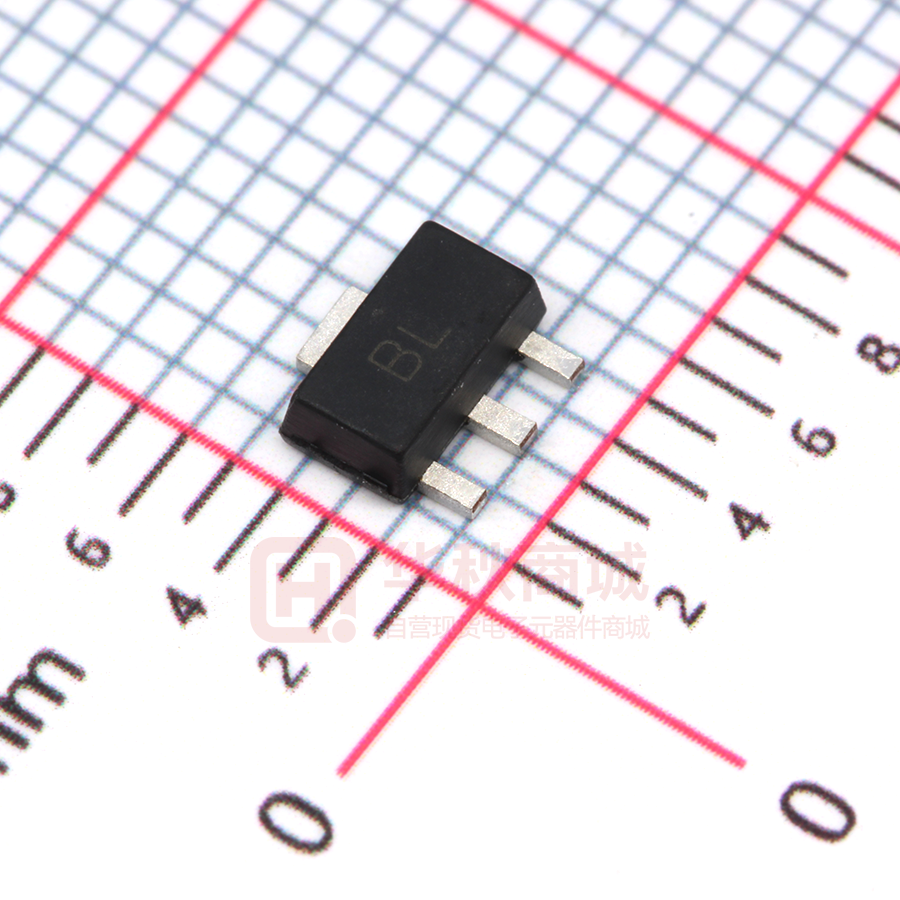

BCX5616QTA

BCX5616Q 80V NPN MEDIUM POWER TRANSISTORS IN SOT89 Description Mechanical Data This Bipolar Junction Transistor (BJT) is designed to meet the stringent requirements of Automotive Applications. • • Case: SOT89 Case Material: Molded Plastic, “Green” Molding Compound UL Flammability Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020 Terminals: Matte Tin Finish Leads, Solderable per MIL-STD-202 Method 208 Weight: 0.055 grams (Approximate) • • • Applications Features Automotive Medium Power Switching or Amplification Applications AF Driver and Output Stages • • • • • • • BVCEO > 80V Ic = 1A High Continuous Collector Current ICM = 2.0A Peak Pulse Current Low Saturation Voltage VCE(sat) < 500mV @ 0.5A • • • • • Epitaxial Planar Die Construction Complementary PNP types: BCX5316Q Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) Halogen- and Antimony-Free. “Green” Device (Note 3) The BCX5616Q is suitable for automotive applications requiring specific change control; this part is AEC-Q101 qualified, PPAP capable, and manufactured in IATF16949 certified facilities. https://www.diodes.com/quality/product-definitions/ SOT89 C E B C C B E Top View Top View Pin-Out Device Symbol Ordering Information (Note 4) Product BCX5616QTA BCX5616QTC Notes: Compliance Automotive Automotive Marking BL BL Reel size (inches) 7 13 Tape width (mm) 12 12 Quantity per reel 1,000 4,000 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant. 2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain
