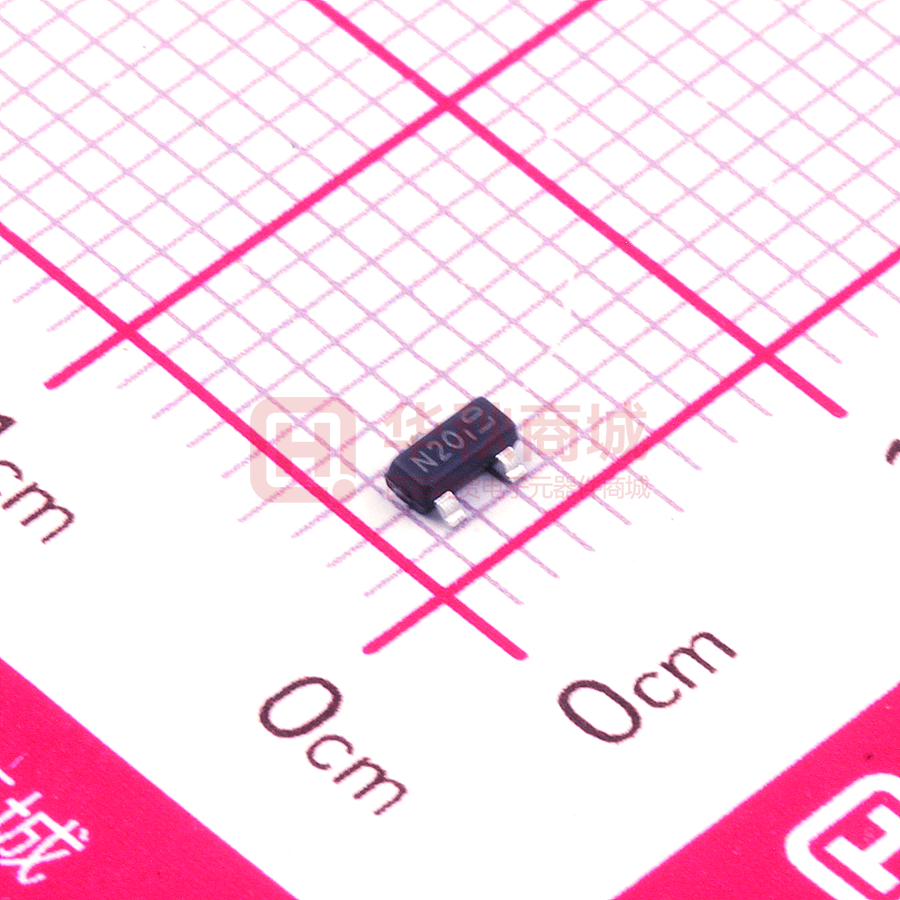

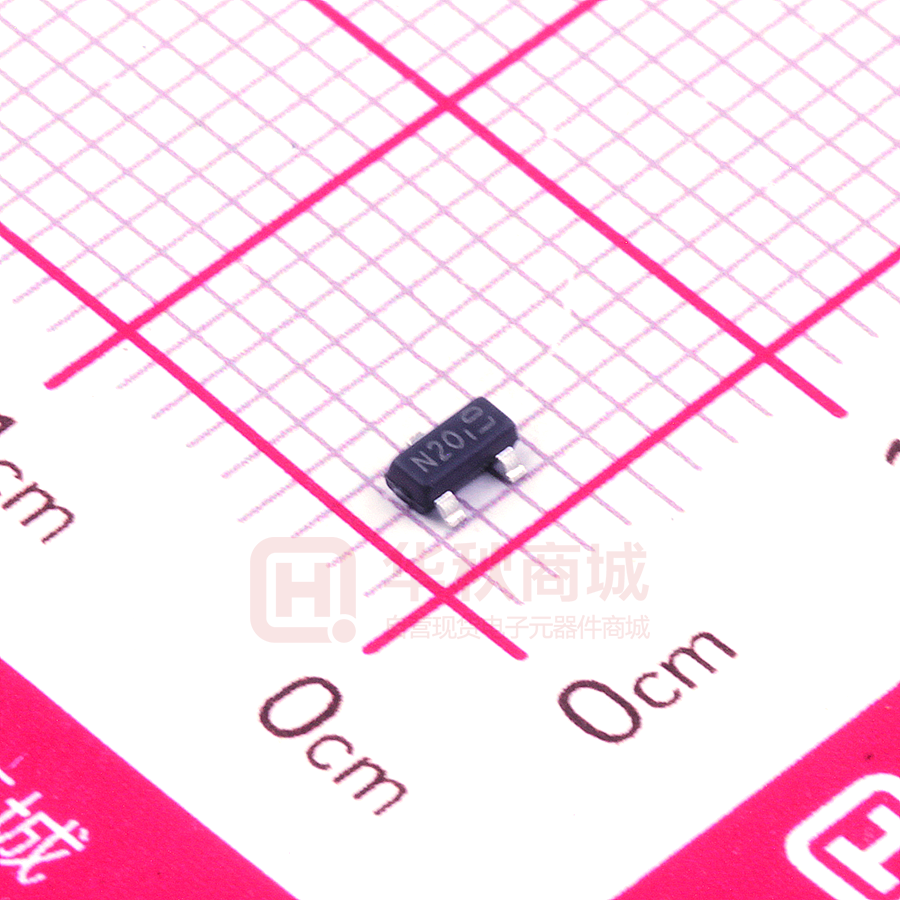

BSN20-7

BSN20 N-CHANNEL ENHANCEMENT MODE FIELD MOSFET Product Summary Features and Benefits RDS(ON) ID TA = +25°C 1.8 @ VGS = 10V 500mA 2.0 @ VGS = 4.5V 450mA V(BR)DSS Low On-Resistance Low Input Capacitance Fast Switching Speed Low Input/Output Leakage Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) Halogen and Antimony Free. “Green” Device (Note 3) For automotive applications requiring specific change control (i.e. parts qualified to AEC-Q100/101/200, PPAP capable, and manufactured in IATF 16949 certified facilities), please contact us or your local Diodes representative. https://www.diodes.com/quality/product-definitions/ Description and Applications Mechanical Data This new generation MOSFET has been designed to minimize the onstate resistance (RDS(ON)) and yet maintain superior switching   performance, making it ideal for high efficiency power management applications.      Backlighting DC-DC Converters Power Management Functions   Case: SOT23 Case Material: Molded Plastic “Green” Molding Compound. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020 Terminals: Matte Tin Finish Annealed over Alloy 42 Leadframe (Lead Free Plating). Solderable per MIL-STD-202, Method 208 e3 Terminal Connections: See Diagram Weight: 0.008 grams (Approximate) D SOT23 D G S G S Top View Top View Internal Schematic Ordering Information (Note 4) Qualification Standard Part Number BSN20-7 Notes: Case SOT23 Packaging 3000/Tape & Reel 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant. 2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain
