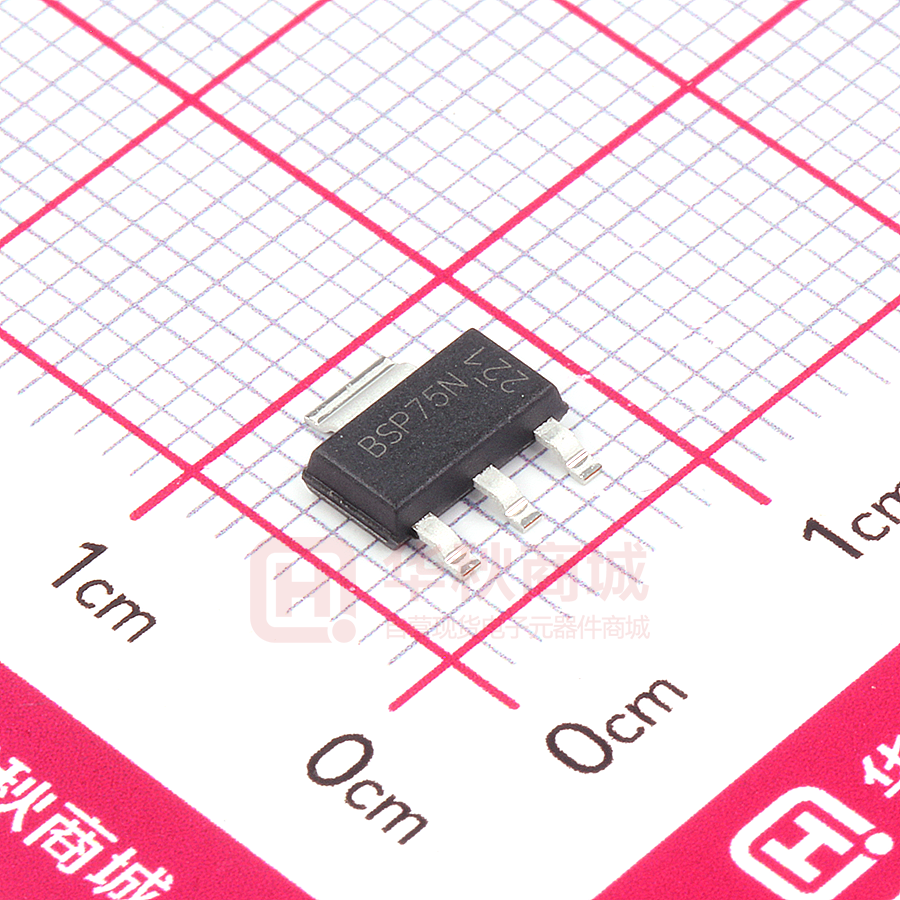

BSP75NTA

BSP75N ADVANCE INFORMATION 60V SELF-PROTECTED LOW-SIDE IntelliFET MOSFET SWITCH Product Summary Features and Benefits  Continuous Drain Source Voltage: VDS = 60V    On-State Resistance: 500mΩ Max Nominal Load Current (VIN = 5V): 1.1A Min Nominal Load Current (VIN = 5V): 0.7A  Clamping Energy: 550mJ            Description The DIODES™ BSP75N is a self-protected, low-side MOSFET. It features monolithic overtemperature, overcurrent, overvoltage (active clamp), and ESD protected logic-level functionality. It is intended as a general purpose switch.  Applications       Especially suited for loads with high inrush current, such as lamps and motors All types of resistive, inductive, and capacitive loads in switching applications µC compatible power switches for 12V and 24V DC applications Automotive rated Replaces electromechanical relays and discrete circuits Linear mode capability—current-limiting protection circuitry is designed to deactivate at low VDS to not compromise the load Short-Circuit Protection with Auto Restart Overvoltage Protection (Active Clamp) Thermal Shutdown with Auto Restart Overcurrent Protection Input Protection (ESD) Load-Dump Protection (Actively Protects Load) Logic-Level Input High Continuous Current Rating Lead-Free Finish; RoHS Compliant (Note 1 & 2) Halogen and Antimony Free. “Green” Device (Note 3) This part is qualified to JEDEC standards (as references in AEC-Q) for High Reliability. https://www.diodes.com/quality/product-definitions/ An Automotive-Compliant Part is Available Under Separate Datasheet (BSP75NQ) Mechanical Data      Package: SOT223 Package Material: Molded Plastic, “Green” Molding Compound UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020 Terminals: Matte Tin Finish e3 Weight: 0.112 grams (Approximate) current during normal operation. Maximum DC operating current is therefore determined by thermal capability of the package/board combination rather than by protection circuitry, which does not compromise the product’s ability to self-protect at low VDS. SOT223 (Type DN) Top View Pin Out Top View Note: The tab is connected to the source pin and must be electrically isolated from the drain pin. Connection of significant copper to the drain pin is recommended for best thermal performance. Ordering Information (Note 4) Part Number Package Marking Reel Size (inches) Tape Width (mm) BSP75NTA SOT223 (Type DN) BSP75N 7 12 Notes: Packing Qty. Carrier 1000 Units Reel 1. EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant. All applicable RoHS exemptions applied. 2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain
