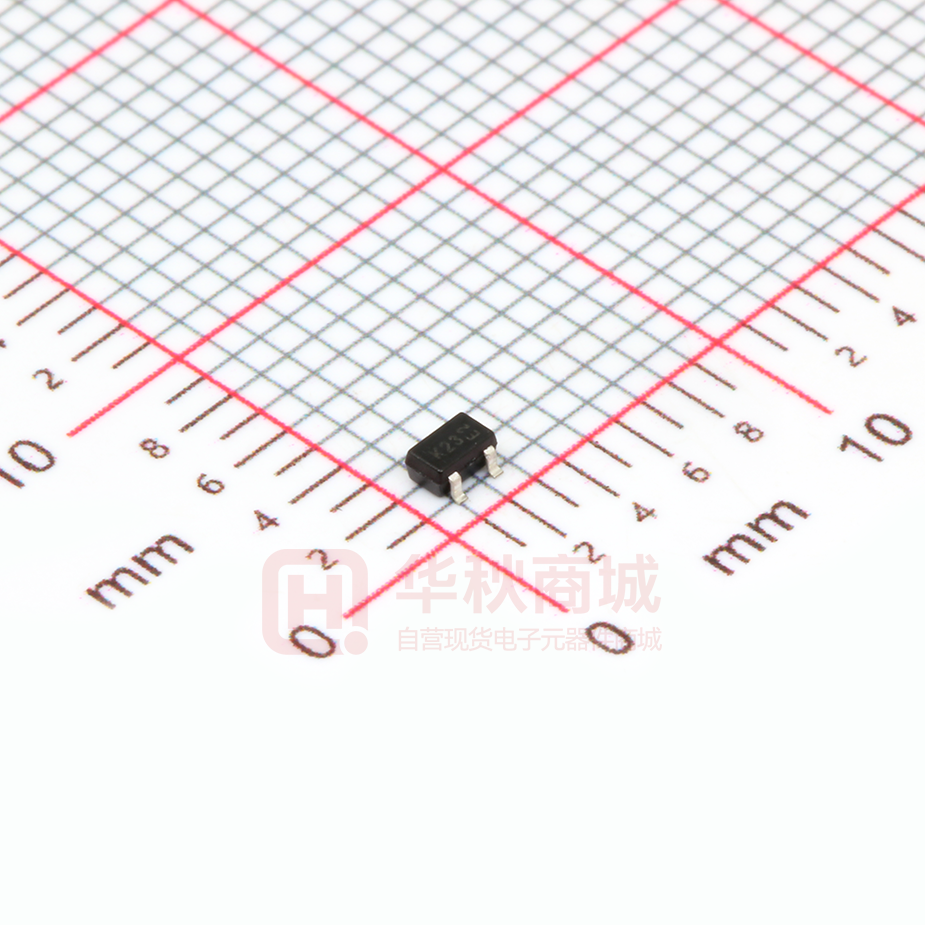

BSS123W
N-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
Features
ID
TA = +25°C
170mA
making it ideal for high efficiency power management applications.
•
•
•
•
•
•
•
•
Applications
Mechanical Data
•
•
•
•
•
V(BR)DSS
RDS(ON)
100V
6.0Ω @ VGS = 10V
Description
This MOSFET is designed to minimize the on-state
resistance (RDS(ON)) and yet maintain superior switching performance,
Small Servo Motor Control
Power MOSFET Gate Drivers
Switching Applications
Low Gate Threshold Voltage
Low Input Capacitance
Fast Switching Speed
Low Input/Output Leakage
High Drain-Source Voltage Rating
Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
Case: SOT323
Case Material: Molded Plastic, "Green" Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminal Connections: See Diagram
Terminals: Matte Tin Finish Annealed over Alloy 42 Leadframe
(Lead Free Plating). Solderable per MIL-STD-202, Method 208 e3
Weight: 0.006 grams (Approximate)
•
•
•
•
D
SOT323
D
G
G
S
S
Top View
Equivalent Circuit
Top View
Ordering Information (Note 4)
Part Number
BSS123W-7-F
Notes:
Compliance
Standard
Case
SOT323
Packaging
3000/Tape & Reel
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain
