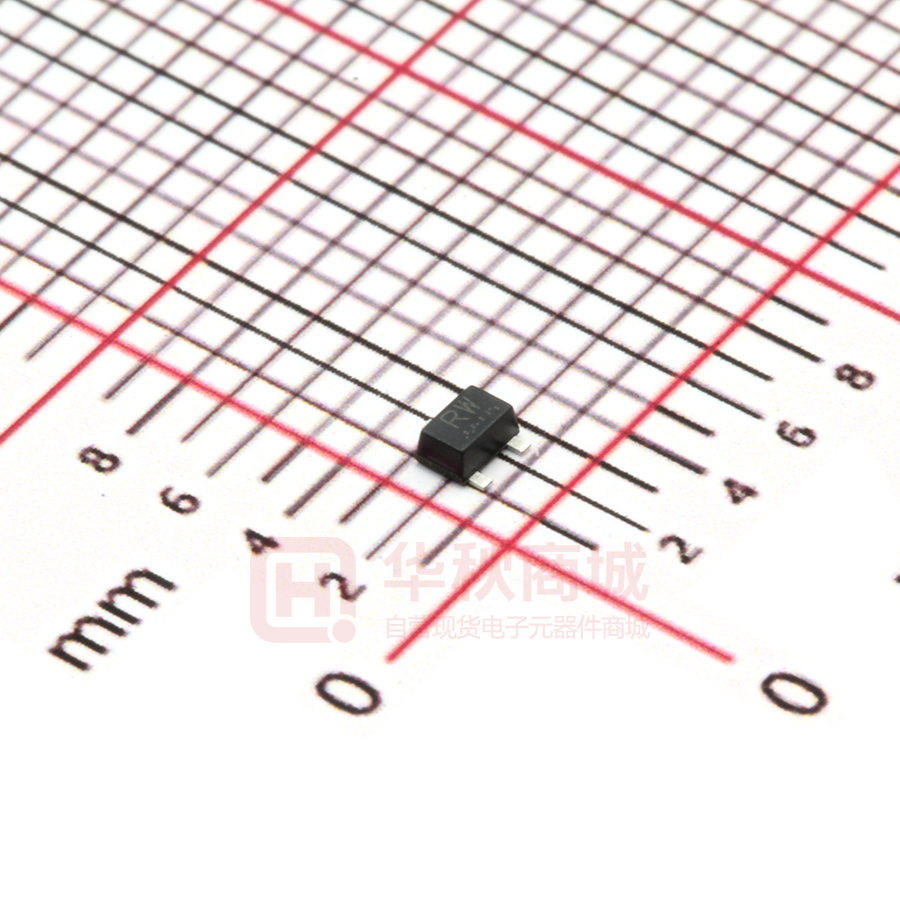

BSS127S-7

BSS127 N-CHANNEL ENHANCEMENT MODE FIELD MOSFET Product Summary Features BVDSS RDS(ON) Package ID TA = +25°C • • Low Input Capacitance High BVDSS Rating for Power Application 600V 160Ω @ VGS = 10V SC59 SOT23 70mA • • • • Low Input/Output Leakage Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) Halogen and Antimony Free. “Green” Device (Note 3) Qualified to AEC-Q101 Standards for High Reliability Description This new generation uses advanced planar technology MOSFET, provide excellent high voltage and fast switching, making it ideal for small-signal and level shift applications. Mechanical Data • • Case: SC59 / SOT23 Case Material: Molded Plastic “Green” Molding Compound. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020 Terminals: Finish - Matte Tin Annealed over Copper Leadframe Solderable per MIL-STD-202, Method 208 e3 Applications • • • • • • Motor Control Backlighting DC-DC Converters Power Management Functions • • Terminal Connections: See Diagram Weight: 0.008 grams (Approximate) Drain SOT23 D SC59 Gate S G Source Top View Equivalent Circuit Top View Ordering Information (Note 4) Part Number BSS127SSN-7 BSS127S-7 Notes: Case SC59 SOT23 Packaging 3000/Tape & Reel 3000/Tape & Reel 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. 2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain
