BSS84
P-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
Features and Benefits
BVDSS
RDS(ON) max
-50V
10 @ VGS = -5V
ID
TA = +25°C
-130mA
Description
This MOSFET has been designed to minimize the on-state resistance
(RDS(ON)) and yet maintain superior switching performance, making it
ideal for high efficiency power management applications.
Low On-Resistance
Low Gate Threshold Voltage
Low Input Capacitance
Fast Switching Speed
Low Input/Output Leakage
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
PPAP Capable (Note 4)
Mechanical Data
Applications
General Purpose Interfacing Switch
Power Management Functions
Analog Switch

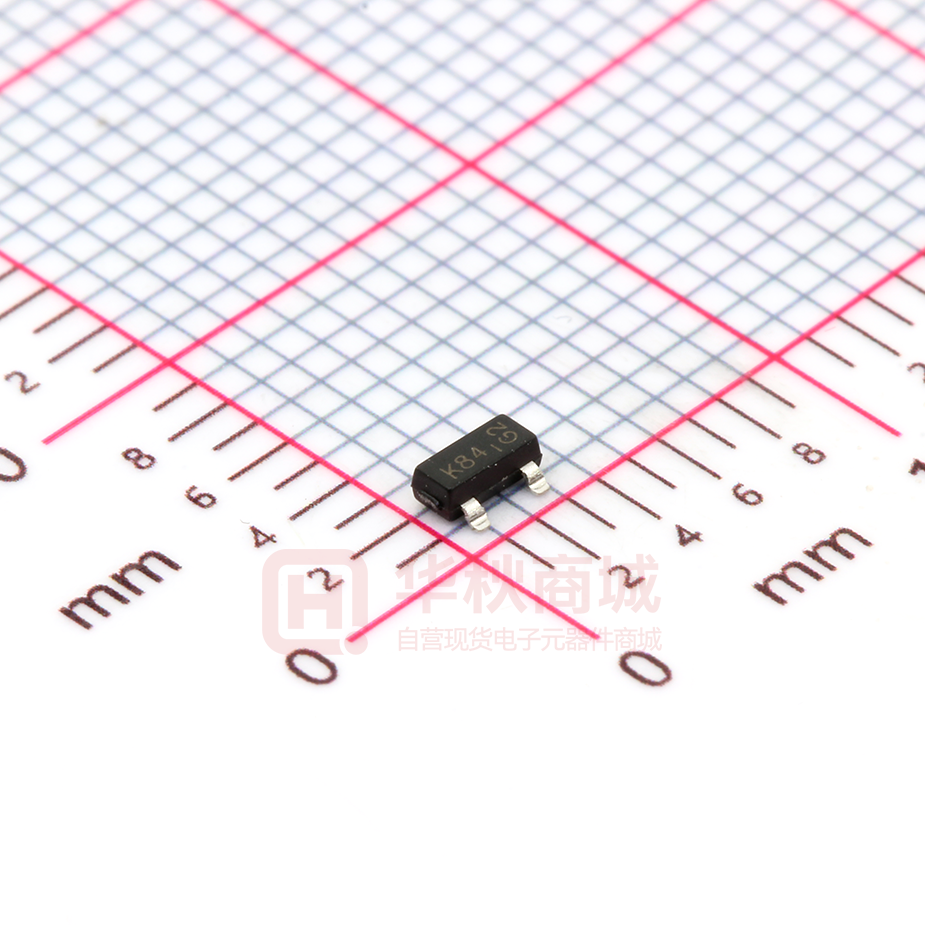

Case: SOT23
Case Material: UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Matte Tin Finish (Lead Free Plating) Solderable per
MIL-STD-202, Method 208 e3
Terminal Connections: See Diagram
Weight: 0.009 grams (Approximate)
SOT23
D
D
G
S
G
S
Top View
Equivalent Circuit
Top View
Ordering Information (Note 5)
Part Number
BSS84-7-F
BSS84Q-7-F
BSS84-13-F
BSS84Q-13-F
Notes:
Qualification
Commercial
Automotive
Commercial
Automotive
Case
SOT23
SOT23
SOT23
SOT23
Packaging
3000/Tape & Reel
3000/Tape & Reel
10000/Tape & Reel
10000/Tape & Reel
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green" products are defined as those which contain
