BZT52C2V4LP - BZT52C39LP
SURFACE MOUNT ZENER DIODE
Features
Mechanical Data
Ultra-Small Leadless Surface Mount Package
Ideally Suited for Automated Assembly Processes
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)

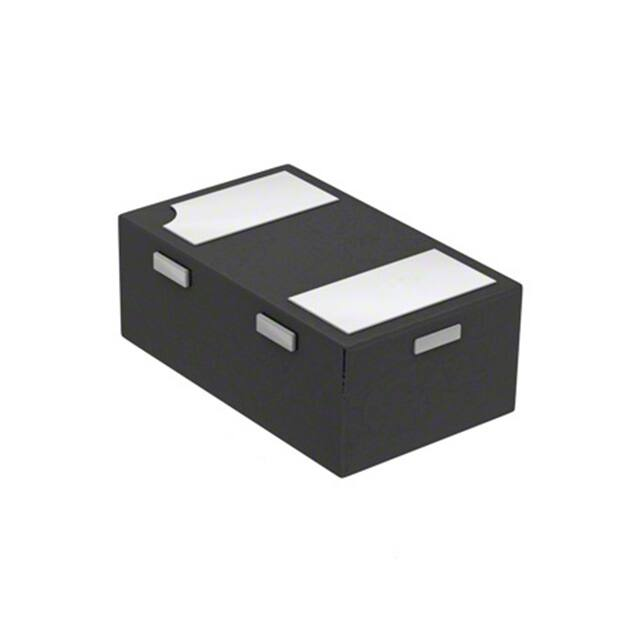

Case: X1-DFN1006-2
Case Material: Molded Plastic, "Green" Molding Compound;
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminal Connections: See Marking Information
Terminals: Finish NiPdAu over Copper Leadframe;
Solderable per MIL-STD-202, Method 208 e4
Weight: 0.001 grams (Approximate)
Bottom View
Ordering Information (Note 4)
Part Number
(Type Number)-7*
(Type Number)-7B**
Compliance
Commercial
Commercial
Case
X1-DFN1006-2
X1-DFN1006-2
Packaging
3,000/Tape & Reel
10,000/Tape & Reel
*Add “-7” to the appropriate type number in Electrical Characteristics Table. Example: 6.2V Zener = BZT52C6V2LP-7.
**Add “-7B” to the appropriate type number in Electrical Characteristics Table. Example: 6.2V Zener = BZT52C6V2LP-7B.
Notes:
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain
