BZT52C2V0T - BZT52C36T
SURFACE MOUNT ZENER DIODE
Features
Mechanical Data
Small, Low Profile Surface Mount Package
Case: SOD523
Flat Lead Package Design for Low Profile and High Power
Dissipation
Case Material: Molded Plastic, "Green" Molding Compound.
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Moisture Sensitivity: Level 1 per J-STD-020
Halogen and Antimony Free. “Green” Device (Note 3)
Terminal Connections: Cathode Band
Qualified to AEC-Q101 Standards for High Reliability
PPAP Capable (Note 4)
Terminals: Finish - Matte Tin Annealed over Alloy 42 Leadframe.
Solderable per MIL-STD-202, Method 208 e3
Weight: 0.001 grams (Approximate)
UL Flammability Classification Rating 94V-0

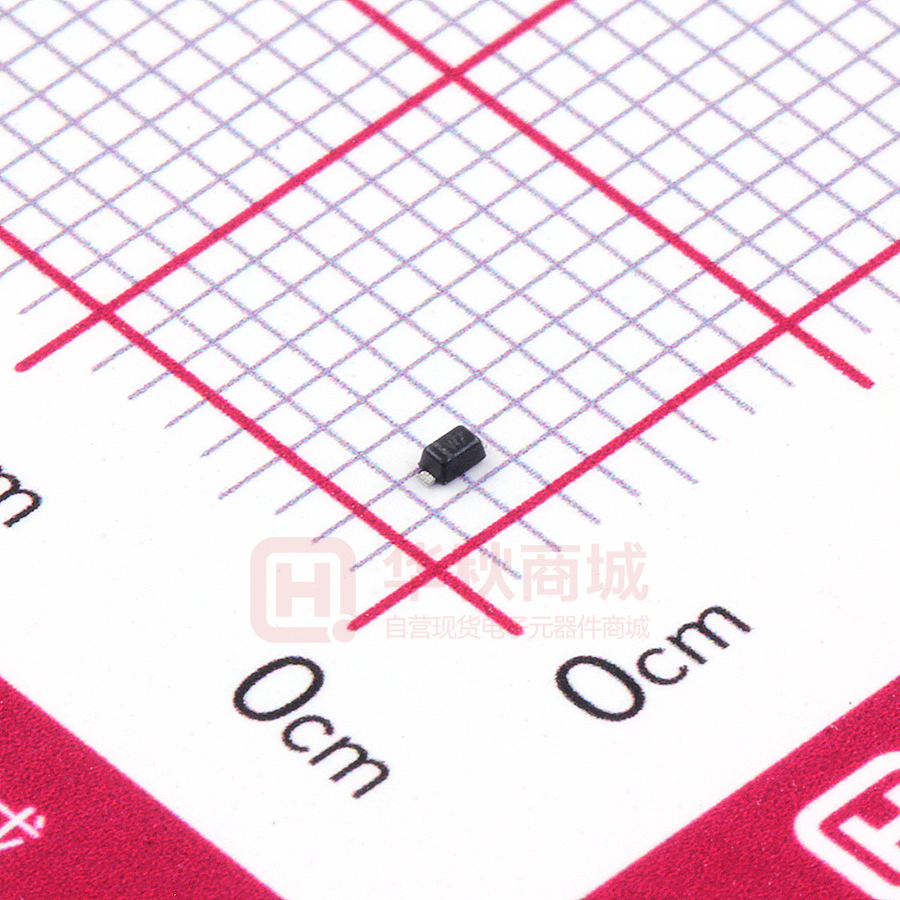

SOD523
Top View
Ordering Information (Note 5)
Part Number (Note 6)
(Type Number)-7*
(Type Number)Q-7-F*
(Type Number)-13*
(Type Number)Q-13-F*
Compliance
Standard
Automotive
Standard
Automotive
Case
SOD523
SOD523
SOD523
SOD523
Packaging
3,000/Tape & Reel
3,000/Tape & Reel
10,000/Tape & Reel
10,000/Tape & Reel
*For (Type Number), please see the Electrical Characteristics Table. Example: 6.2V Zener = BZT52C6V2T-7.
Notes:
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain
