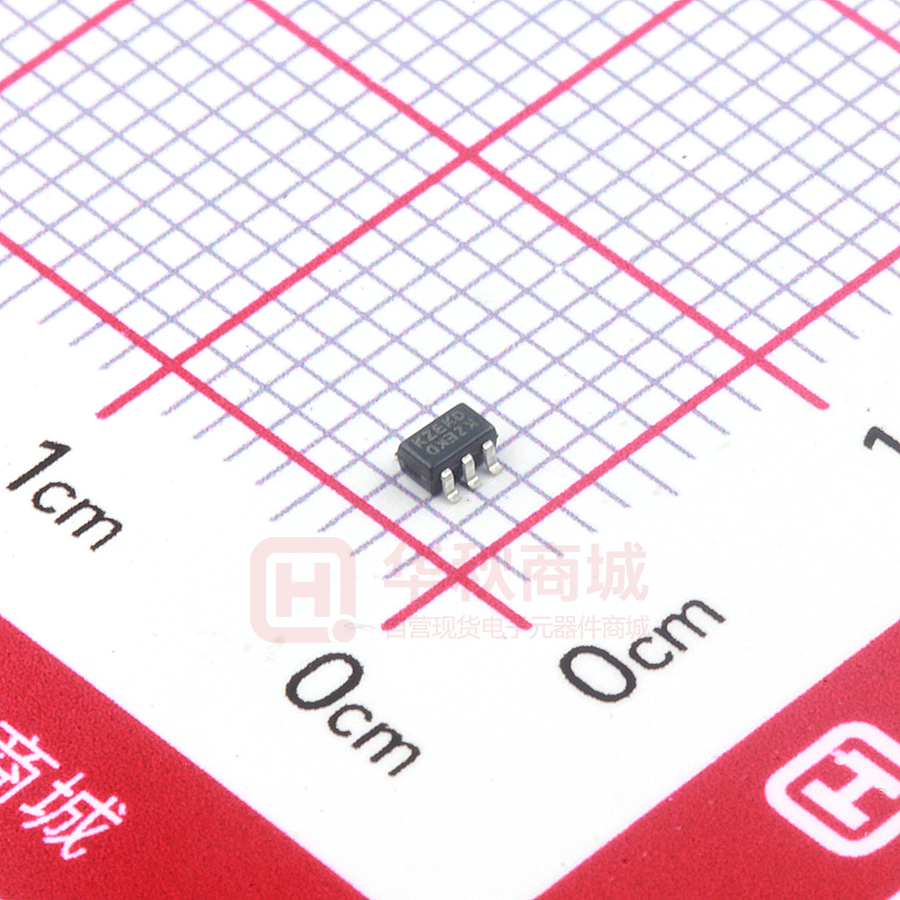

BZX84C3V3S-7-F

BZX84C2V4S - BZX84C39S DUAL 200mW SURFACE MOUNT ZENER DIODE Please click here to visit our online spice models database. Features • • • • • • Mechanical Data • • Planar Die Construction 200mW Power Dissipation Zener Voltages from 2.4V - 39V Ultra-Small Surface Mount Package Lead Free/RoHS Compliant (Note 2) "Green" Device (Note 3 and 4) Case: SOT-363 Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020D Terminals: Solderable per MIL-STD-202, Method 208 Lead Free Plating (Matte Tin Finish annealed over Alloy 42 leadframe). Polarity: See Diagram Marking Information: See Page 3 Ordering Information: See Page 3 Weight: 0.006 grams (approximate) • • • • • • • Top View Maximum Ratings C1 A1 NC NC A2 C2 Device Schematic @TA = 25°C unless otherwise specified Characteristic Forward Voltage @ IF = 10mA Symbol Value Unit VF 0.9 V Thermal Characteristics Symbol Value Unit Power Dissipation Characteristic (Note 1) PD 200 mW Thermal Resistance, Junction to Ambient Air (Note 1) RθJA 625 °C/W TJ, TSTG -65 to +150 °C Operating and Storage Temperature Range Notes: 1. 2. 3. 4. Mounted on FR4 PC Board with recommended pad layout which can be found on our website at http://www.diodes.com/datasheets/ap02001.pdf. No purposefully added lead. Diodes Inc.'s "Green" policy can be found on our website at http://www.diodes.com/products/lead_free/index.php. Product manufactured with Date Code UO (week 40, 2007) and newer are built with Green Molding Compound. Product manufactured prior to Date Code UO are built with Non-Green Molding Compound and may contain Halogens or Sb2O3 Fire Retardants. BZX84C2V4S - BZX84C39S Document number: DS30108 Rev. 17 - 2 1 of 4 www.diodes.com May 2008 © Diodes Incorporated BZX84C2V4S - BZX84C39S Electrical Characteristics @TA = 25°C unless otherwise specified Zener Voltage Range (Note 5) Type Number Marking Code BZX84C2V4S BZX84C2V7S BZX84C3V0S BZX84C3V3S BZX84C3V6S BZX84C3V9S BZX84C4V3S BZX84C4V7S BZX84C5V1S BZX84C5V6S BZX84C6V2S BZX84C6V8S BZX84C7V5S BZX84C8V2S BZX84C9V1S BZX84C10S BZX84C11S BZX84C12S BZX84C13S BZX84C15S BZX84C16S BZX84C18S BZX84C20S BZX84C22S BZX84C24S BZX84C27S BZX84C30S BZX84C33S BZX84C36S BZX84C39S KZB KZC KZD KZE KZF KZG KZH KZ1 KZ2 KZ3 KZ4 KZ5 KZ6 KZ7 KZ8 KZ9 KY1 KY2 KY3 KY4 KY5 KY6 KY7 KY8 KY9 KYA KYB KYC KYD KYE Notes: VZ @ IZT Nom (V) 2.4 2.7 3.0 3.3 3.6 3.9 4.3 4.7 5.1 5.6 6.2 6.8 7.5 8.2 9.1 10 11 12 13 15 16 18 20 22 24 27 30 33 36 39 Min (V) 2.2 2.5 2.8 3.1 3.4 3.7 4.0 4.4 4.8 5.2 5.8 6.4 7.0 7.7 8.5 9.4 10.4 11.4 12.4 13.8 15.3 16.8 18.8 20.8 22.8 25.1 28.0 31.0 34.0 37.0 Max (V) 2.6 2.9 3.2 3.5 3.8 4.1 4.6 5.0 5.4 6.0 6.6 7.2 7.9 8.7 9.6 10.6 11.6 12.7 14.1 15.6 17.1 19.1 21.2 23.3 25.6 28.9 32.0 35.0 38.0 41.0 Maximum Zener Impedance (Note 6) IZT ZZT @ IZT ZZK @ IZK IZK mA 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 2.0 2.0 2.0 2.0 2.0 Ω 100 100 95 95 90 90 90 80 60 40 10 15 15 15 15 20 20 25 30 30 40 45 55 55 70 80 80 80 90 130 Ω 600 600 600 600 600 600 600 500 480 400 150 80 80 80 100 150 150 150 170 200 200 225 225 250 250 300 300 325 350 350 mA 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 0.5 0.5 0.5 0.5 0.5 Maximum Reverse Temperature Coefficient of Current (Note 5) Zener Voltage @ IZT = 5mA IR VR mV/°C uA V Min Max 50 1.0 -3.5 0 20 1.0 -3.5 0 10 1.0 -3.5 0 5.0 1.0 -3.5 0 5.0 1.0 -3.5 0 3.0 1.0 -3.5 0 3.0 1.0 -3.5 0 3.0 2.0 -3.5 0.2 2.0 2.0 -2.7 1.2 1.0 2.0 -2.0 -2.5 3.0 4.0 0.4 3.7 2.0 4.0 1.2 4.5 1.0 5.0 2.5 5.3 0.7 5.0 3.2 6.2 0.5 6.0 3.8 7.0 0.2 7.0 4.5 8.0 0.1 8.0 5.4 9.0 0.1 8.0 6.0 10.0 0.1 8.0 7.0 11.0 0.1 10.5 9.2 13.0 0.1 11.2 10.4 14.0 0.1 12.6 12.4 16.0 0.1 14.0 14.4 18.0 0.1 15.4 16.4 20.0 0.1 16.8 18.4 22.0 0.1 18.9 21.4 25.3 0.1 21.0 24.4 29.4 0.1 23.1 27.4 33.4 0.1 25.2 30.4 37.4 0.1 27.3 33.4 41.2 5. Short duration pulse test used to minimize self-heating effect. 6. f = 1KHz. 50 IZ, ZENER CURRENT (mA) PD, POWER DISSIPATION (mW) 300 200 100 40 30 20 10 0 0 100 TA, AMBIENT TEMPERATURE, (°C) Fig. 1 Power Derating Curve BZX84C2V4S - BZX84C39S Document number: DS30108 Rev. 17 - 2 200 2 of 4 www.diodes.com 0 0 1 2 3 4 5 6 8 9 10 7 VZ, ZENER VOLTAGE (V) Fig. 2 Typical Zener Breakdown Characteristics May 2008 © Diodes Incorporated BZX84C2V4S - BZX84C39S 30 T J = 25°C 1,000 C10 TJ = 25 °C f = 1MHz CT, TOTAL CAPACITANCE (pF) IZ, ZENER CURRENT (mA) C12 C15 20 C18 Test current IZ 2mA C22 10 C27 Test current IZ 5mA C33 C36 C39 0 VR = 1V VR = 2V 100 VR = 1V VR = 2V 10 0 10 20 30 40 VZ, ZENER VOLTAGE (V) Fig. 3 Typical Zener Breakdown Characteristics Ordering Information 10 100 VZ, NOMINAL ZENER VOLTAGE (V) Fig. 4 Typical Total Capacitance vs. Nominal Zener Voltage 1 (Note 7) Part Number (Type Number)-7-F* Case SOT-363 Packaging 3000/Tape & Reel *Add “-7-F” to the appropriate type number in Electrical Characteristics Table from Page 2 example: 6.2V Zener = BZX84C6V2S-7-F. Notes: 7. For packaging details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf. Marking Information Kxx = Product Type Marking Code (See Electrical Characteristics Table) YM = Date Code Marking Y = Year (ex: N = 2002) M = Month (ex: 9 = September) Kxx YM Kxx YM Date Code Key Year Code 2002 N 2003 P 2004 R 2005 S 2006 T 2007 U 2008 V 2009 W 2010 X 2111 Y 2012 Z Month Jan Feb Mar Apr May Jun Jul Aug Sep Oct Nov Dec Code 1 2 3 4 5 6 7 8 9 O N D Package Outline Dimensions A SOT-363 Dim Min Max A 0.10 0.30 B 1.15 1.35 C 2.00 2.20 D 0.65 Nominal F 0.30 0.40 H 1.80 2.20 J 0.10 ⎯ K 0.90 1.00 L 0.25 0.40 M 0.10 0.25 0° 8° α All Dimensions in mm B C H K J BZX84C2V4S - BZX84C39S Document number: DS30108 Rev. 17 - 2 M D F L 3 of 4 www.diodes.com May 2008 © Diodes Incorporated BZX84C2V4S - BZX84C39S Suggested Pad Layout E Z E Dimensions Value (in mm) Z 2.5 G 1.3 X 0.42 Y 0.6 C 1.9 E 0.65 C G Y X IMPORTANT NOTICE Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes without further notice to any product herein. Diodes Incorporated does not assume any liability arising out of the application or use of any product described herein; neither does it convey any license under its patent rights, nor the rights of others. The user of products in such applications shall assume all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on our website, harmless against all damages. LIFE SUPPORT Diodes Incorporated products are not authorized for use as critical components in life support devices or systems without the expressed written approval of the President of Diodes Incorporated. BZX84C2V4S - BZX84C39S Document number: DS30108 Rev. 17 - 2 4 of 4 www.diodes.com May 2008 © Diodes Incorporated
