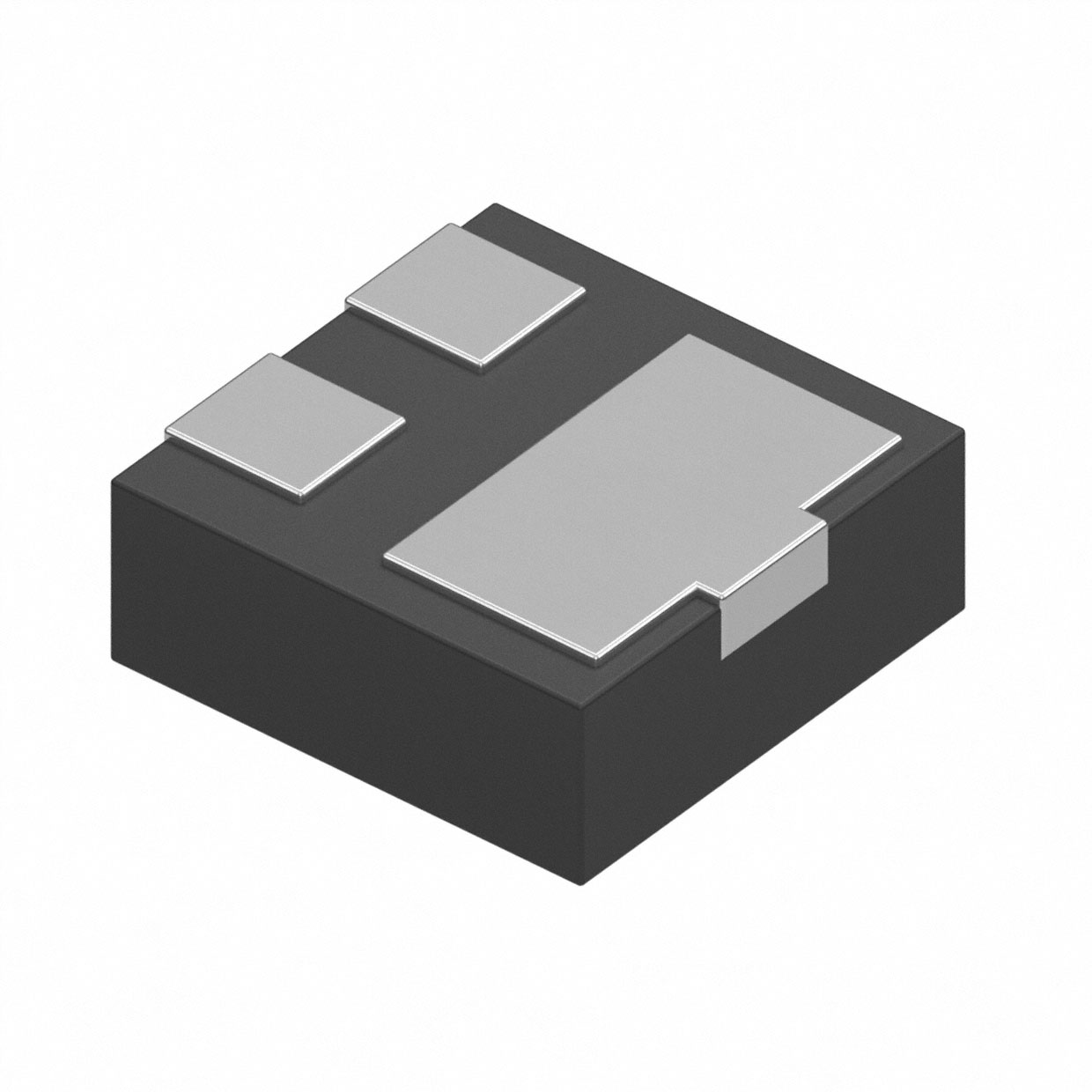

D5V0M2B3LP10-7

D5V0M2B3LP10 2 CHANNEL HIGH SURGE BIDIRECTIONAL TVS DIODE Product Summary PRODUCT ADVANCED NEW INFORMATION VBR min 5.5V Features Ipp max 12A Cin typ 28pF Description This new generation TVS is designed to protect sensitive electronics from damage due to ESD. The combination of small size and high ESD surge capability makes it ideal for use in portable applications such as cellular phones, digital cameras, and MP3 players. Applications • • • Provides ESD Protection per IEC 61000-4-2 Standard: Air ±30kV, Contact ±30kV 2 Channel of ESD Protection Low Channel Input Capacitance Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) Halogen and Antimony Free. “Green” Device (Note 3) • • • • • Mechanical Data Cellular Handsets Portable Electronics Computers and Peripheral • • • • • Case: X2-DFN1010-3 Case Material: Molded Plastic, “Green” Molding Compound. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020 Terminals: NiPdAu over Copper Leadframe. Solderable per MIL-STD-202, Method 208 e4 Weight: 0.001 grams (Approximate) X2-DFN1010-3 Ch2 2 2 3 Ch1 3 GND 1 1 Device Schematic Top View Ordering Information (Note 4) Product D5V0M2B3LP10-7 Notes: Compliance Standard Marking SJ Reel Size (inches) 7 Tape Width (mm) 8 Quantity per Reel 5,000/Tape & Reel 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. 2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain
