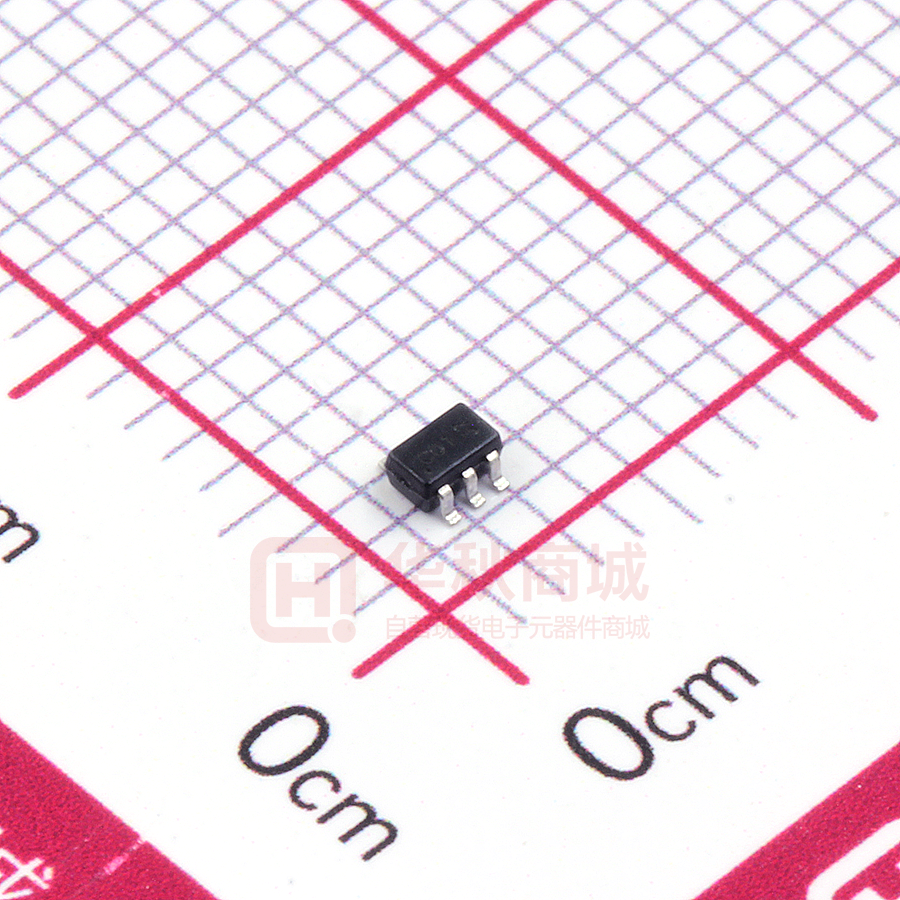

DCX115EU-7-F

DCX (XXXX) U SMALL SIGNAL COMPLEMENTARY PRE-BIASED DUAL TRANSISTOR Features Mechanical Data         Epitaxial Planar Die Construction Built-In Biasing Resistors Surface Mount Package Suited for Automated Assembly Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) Halogen and Antimony-Free. “Green” Device (Note 3) For automotive applications requiring specific change control (i.e. parts qualified to AEC-Q100/101/200, PPAP capable, and manufactured in IATF 16949 certified facilities), please contact us or your local Diodes representative. https://www.diodes.com/quality/product-definitions/ Part Number DCX124EU DCX144EU DCX114YU DCX123JU DCX114EU DCX143EU DCX143ZU DCX115EU R1(NOM) 22kΩ 47kΩ 10kΩ 2.2kΩ 10kΩ 4.7kΩ 4.7kΩ 100kΩ Package: SOT363 Package Material: Molded Plastic, “Green” Molding Compound; UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020 Terminals: Finish – Matte Tin Plated Leads, Solderable per MIL-STD-202, Method 208 Weight: 0.006 grams (Approximate)    R2(NOM) 22kΩ 47kΩ 47kΩ 47kΩ 10kΩ 4.7kΩ 47kΩ 100kΩ SOT363 Part Number DCX143TU DCX114TU R1 Only 4.7kΩ 10kΩ CQ1 BQ2 EQ2 CQ1 BQ 2 EQ 2 6 5 4 6 5 4 Q1 R1 R2 R2 R 1 Q1 Q2 1 2 3 EQ1 BQ1 CQ2 1 EQ 1 R1 Q2 2 3 CQ2 BQ 1 R1 Only R1, R2 Top View R1 Device Schematic Ordering Information (Notes 4, 5) Product DCX124EU-7-F DCX124EUQ-7-F DCX124EUQ-13-F DCX124EUQ-13R-F DCX144EU-7-F DCX144EU-7R-F DCX144EUQ-7-F DCX144EUQ-7R-F DCX114YU-7-F DCX114YU-7R-F DCX114YUQ-7-F DCX114YUQ-13-F DCX114YUQ-13R-F DCX123JU-7-F DCX123JUQ-7-F DCX114EU-7-F DCX114EU-13R-F Status Compliance Marking Active NRND (Use ACX124EUQ) NRND (Use ACX124EUQ) NRND (Use ACX124EUQ) Active Active Active Active Active Active NRND (Use ACX114YUQ) NRND (Use ACX114YUQ) NRND (Use ACX114YUQ) Active Active Active Active Standard Automotive Automotive Automotive Standard Standard Automotive Automotive Standard Standard Automotive Automotive Automotive Standard Automotive Standard Standard C17 C17 C17 C17 C20 C20 C20 C20 C14 C14 C14 C14 C14 C06 C06 C13 C13 DCX (XXXX) U Document number: DS30347 Rev. 20 - 2 1 of 14 www.diodes.com Reel Size (inches) 7 7 13 13 7 7 7 7 7 7 7 13 13 7 7 7 13 Tape Width Quantity per (mm) Reel 8 3,000 8 3,000 8 10,000 8 10,000 8 3,000 8 3,000 8 3,000 8 3,000 8 3,000 8 3,000 8 3,000 8 10,000 8 10,000 8 3,000 8 3,000 8 3,000 8 10,000 December 2021 © Diodes Incorporated DCX (XXXX) U Ordering Information (Notes 4, 5) (continued) Product DCX114EUQ-7-F DCX114EUQ-13-F DCX114EUQ-13R-F DCX143TU-7-F DCX143EU-7-F DCX114TU-7-F DCX143ZU-7-F DCX115EU-7-F Notes: Status Compliance Marking NRND (Use ACX114EUQ) NRND (Use ACX114EUQ) NRND (Use ACX114EUQ) Active Active Active Active Active Automotive Automotive Automotive Standard Standard Standard Standard Standard C13 C13 C13 C07 C08 C12 C02 C01 Reel Size (inches) 7 13 13 7 7 7 7 7 Tape Width Quantity per (mm) Reel 8 3,000 8 10,000 8 10,000 8 3,000 8 3,000 8 3,000 8 3,000 8 3,000 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant. 2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain
