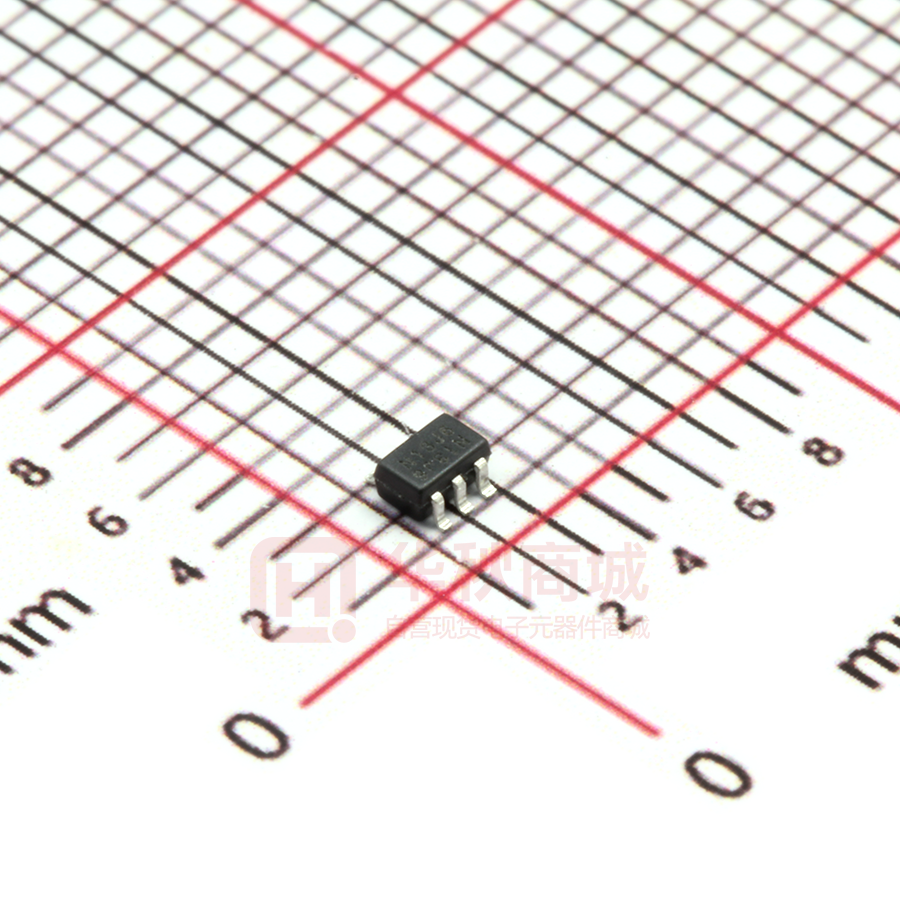

DDC114EU-7-F

DDC(XXXX)U NPN PRE-BIASED SMALL SIGNAL DUAL SURFACE MOUNT TRANSISTOR Features        Mechanical Data   Epitaxial Planar Die Construction Complementary PNP Types Available (DDA) Built-In Biasing Resistors Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) Halogen and Antimony Free. "Green" Device (Note 3) Qualified to AEC-Q101 Standards for High Reliability PPAP Capable (Note 4) Part Number DDC124EU DDC144EU DDC114YU DDC123JU DDC114EU DDC143ZU DDC115EU R1 (NOM) 22kΩ 47kΩ 10kΩ 2.2kΩ 10kΩ 4.7kΩ 100kΩ Case: SOT363 Case Material: Molded Plastic, “Green” Molding Compound. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020 Terminals: Finish – Matte Tin Plated Leads, Solderable per MIL-STD-202, Method 208 Weight: 0.006 grams (Approximate)    Part Number DDC113TU DDC143TU DDC114TU R2 (NOM) 22kΩ 47kΩ 47kΩ 47kΩ 10kΩ 47kΩ 100kΩ R1 Only 1kΩ 4.7kΩ 10kΩ SOT363 6 5 6 4 4 R1 R1 R2 R2 R 1 1 5 R1 3 2 1 R1, R2 Top View 2 3 R1 Only Device Schematic Ordering Information (Notes 4, 5 & 6) Product Status Compliance Marking DDC124EU-7-F DDC124EUQ-7-F DDC144EU-7-F DDC114YU-7-F DDC114YUQ-7-F DDC114YUQ-13-F DDC123JU-7-F DDC114EU-7-F DDC114EUQ-7-F DDC114EUQ-13-F DDC113TU-7-F DDC143TU-7-F DDC114TU-7-F DDC114TUQ-7-F DDC143ZU-7-F DDC115EU-7-F Active NRND (Use ADC124EUQ) Active Active NRND (Use ADC114YUQ) NRND (Use ADC114YUQ) Active Active NRND (Use ADC114EUQ) NRND (Use ADC114EUQ) Active Active Active Active Active Active AEC-Q101 Automotive AEC-Q101 AEC-Q101 Automotive Automotive AEC-Q101 AEC-Q101 Automotive Automotive AEC-Q101 AEC-Q101 AEC-Q101 Automotive AEC-Q101 AEC-Q101 N17 N17 N20 N14 N14 N14 N06 N13 N13 N13 N01 N07 N12 N12 N03 N02 Notes: Reel Size (inches) 7 7 7 7 7 13 7 7 7 13 7 7 7 7 7 7 Tape Width (mm) 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 Quantity per Reel 3,000 3,000 3,000 3,000 3,000 10,000 3,000 3,000 3,000 10,000 3,000 3,000 3,000 3,000 3,000 3,000 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant. 2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain
