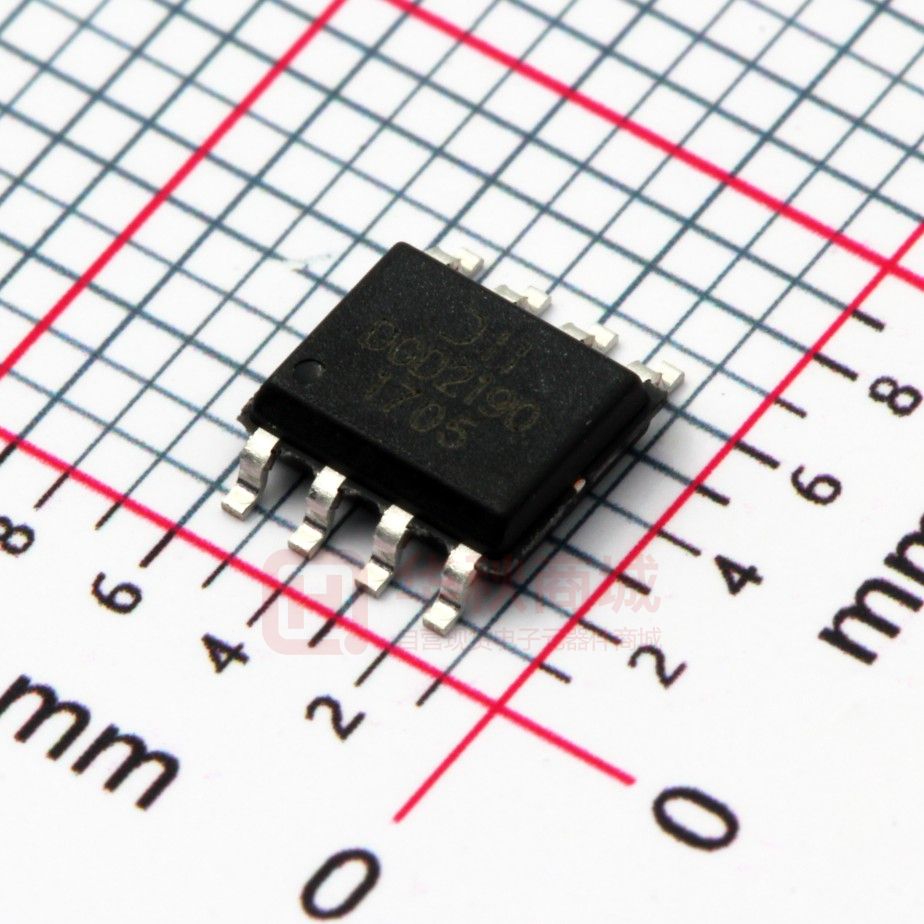

DGD2190S8-13

NOT RECOMMENDED FOR NEW DESIGN USE DGD2190M DGD2190 HIGH-SIDE AND LOW-SIDE GATE DRIVER IN SO-8 Description Features The DGD2190 is a high voltage/high speed gate driver capable of driving N-Channel MOSFETs and IGBTs in a half bridge configuration. High voltage processing techniques enable the DGD2190’s high-side to switch to 600V in a bootstrap operation under high dV/dt conditions.   The DGD2190 logic inputs are compatible with standard TTL and CMOS levels (down to 3.3V) for easy interfacing with controlling devices. The driver outputs feature high pulse current buffers designed for minimum driver cross conduction. The DGD2190 is offered in the SO-8 (Type TH) package and operates over an extended -40°C to +125°C temperature range.        Floating High-Side Driver in Bootstrap Operation to 600V Drives Two N-Channel MOSFETs or IGBTs in a Half-Bridge Configuation Output Drivers Capable of 4.5A/4.5A Typ Sink/Source Logic Input (HIN and LIN) 3.3V Capability Schmitt Triggered Logic Inputs with Internal Pull-Down Undervoltage Lockout for High and Low-Side Drivers Extended Temperature Range: -40°C to +125°C Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) Halogen and Antimony Free. “Green” Device (Note 3) Applications Mechanical Data        DC-DC Converters DC-AC Inverters AC-DC Power Supplies Motor Controls Class D Power Amplifiers    Case: SO-8 (Type TH) Case Material: Molded Plastic. ―Green‖ Molding Compound. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 3 per J-STD-020 Terminals: Finish – Matte Tin Plated Leads, Solderable per MIL-STD-202, Method 208 Weight: 0.075 grams (Approximate) SO-8 (Type TH) Top View Typical Configuration Ordering Information (Note 4) Product DGD2190S8-13 Notes: Marking DGD2190 Reel Size (inches) 13 Tape Width (mm) 12 Quantity Per Reel 2,500 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. 2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green‖ products are defined as those which contain
