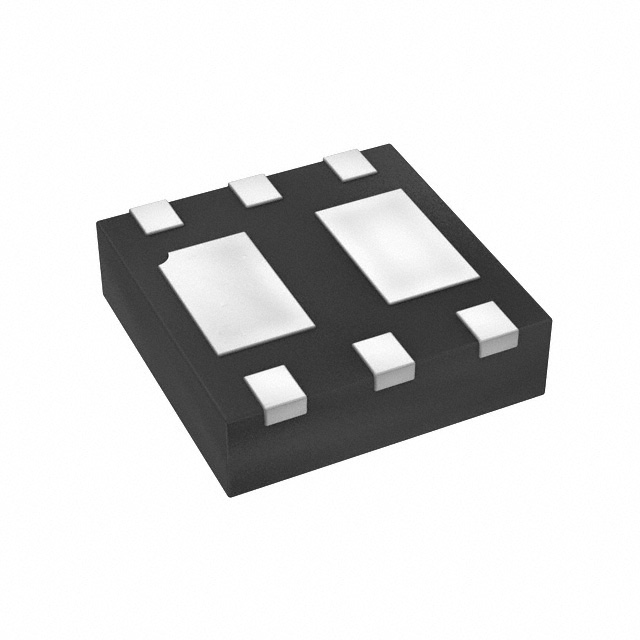

DMC2041UFDB-7

DMC2041UFDB COMPLEMENTARY PAIR ENHANCEMENT MODE MOSFET Product Summary Device BVDSS Q1 N-Channel 20V Q2 P-Channel -20V Features RDS(ON) MAX ID MAX TA = +25°C 40mΩ @ VGS = 4.5V 65mΩ @ VGS = 2.5V 90mΩ @ VGS = -4.5V 137mΩ @ VGS = -2.5V 4.7A 3.7A -3.2A -2.6A        Low On-Resistance Low Input Capacitance Low Profile, 0.6mm Max Height ESD Protected Gate Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) Halogen and Antimony Free. “Green” Device (Note 3) For automotive applications requiring specific change control (i.e. parts qualified to AEC-Q100/101/200, PPAP capable, and manufactured in IATF 16949 certified facilities), please contact us or your local Diodes representative. https://www.diodes.com/quality/product-definitions/ Description This MOSFET is designed to minimize the on-state resistance (RDS(ON)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications. Applications Mechanical Data      Load Switch Power Management Functions Portable Power Adaptors Case: U-DFN2020-6 Case Material: Molded Plastic, “Green” Molding Compound; UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020 Terminals: Finish NiPdAu over Copper Leadframe; Solderable per MIL-STD-202, Method 208 e4 Terminal Connections: See Diagram Below Weight: 0.008 grams (Approximate)     U-DFN2020-6 (Type B) D1 D2 S2 G2 D2 D1 G1 G2 D1 D2 G1 ESD PROTECTED S1 Pin1 Bottom View Gate Protection Diode S1 Gate Protection Diode S2 Q1 N-CHANNEL MOSFET Q2 P-CHANNEL MOSFET Internal Schematic Ordering Information (Note 4) Part Number DMC2041UFDB -7 DMC2041UFDB -13 Notes: Case U-DFN2020-6 (Type B) U-DFN2020-6 (Type B) Packaging 3,000/Tape & Reel 10,000/Tape & Reel 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant. 2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain
