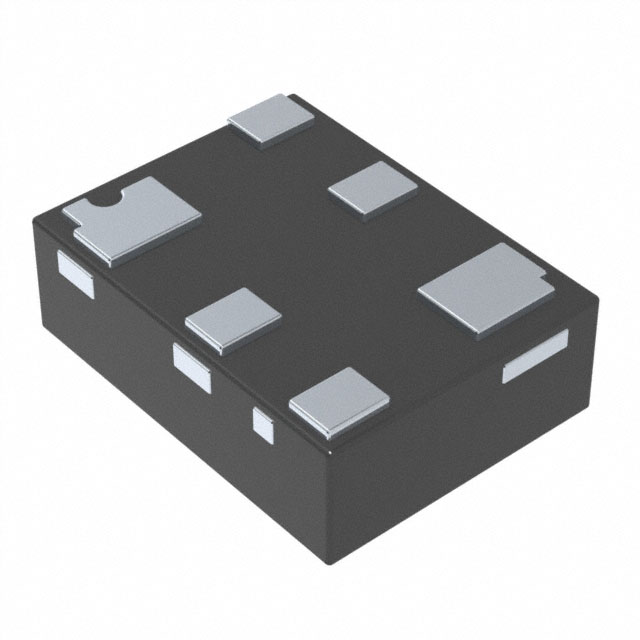

DMC21D1UDA-7B

DMC21D1UDA COMPLEMENTARY PAIR ENHANCEMENT MODE MOSFET Product Summary Device Q1 Q2 BVDSS 20V -20V Features and Benefits        ID max RDS(ON) max TA = +25°C 0.99Ω @ VGS = 4.5V 455mA 1.2Ω @ VGS = 2.5V 414mA 1.8Ω @ VGS = 1.8V 338mA 2.4Ω @ VGS = 1.5V 292mA 1.9Ω @ VGS = -4.5V -328mA 2.4Ω @ VGS = -2.5V -292mA 3.4Ω @ VGS = -1.8V -245mA 5Ω @ VGS = -1.5V -202mA Low On-Resistance Very low Gate Threshold Voltage, 1.0V max Low Input Capacitance Fast Switching Speed Ultra-Small Surface Mount Package 0.8mm x 0.6mm Totally Lead-Free & Fully RoHS compliant (Note 1 & 2) Halogen and Antimony Free. “Green” Device (Note 3 ) Description and Applications Mechanical Data This MOSFET has been designed to minimize the on-state resistance (RDS(ON)) and yet maintain superior switching performance, making it  Case: X2-DFN0806-6  Case Material: Molded Plastic, ―Green‖ Molding Compound. UL Flammability Classification Rating 94V-0  Moisture Sensitivity: Level 1 per J-STD-020  Terminals: Finish – Matte Tin Annealed over Copper Leadframe. Solderable per MIL-STD-202, Method 208  Weight: 0.027 grams (Approximate) ideal for high efficiency power management applications.    General Purpose Interfacing Switch Power Management Functions Analog Switch Pin 1 G1 ESD PROTECTED G2 Gate Protection Diode Top View S2 G2 D1 D2 D1 Bottom View S1 Gate Protection Diode Device Symbol S2 S1 G1 D2 Pin Configuration Top View Ordering Information (Note 4) Part Number DMC21D1UDA-7B Notes: Case X2-DFN0806-6 Packaging 10,000/Tape & Reel 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. 2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green" products are defined as those which contain
