DMC25D0UVT
COMPLEMENTARY PAIR ENHANCEMENT MODE MOSFET
Device
V(BR)DSS
Q1
25V
Q2
Features and Benefits
-30V
ID
TA = +25°C
RDS(ON)
4Ω @ VGS = 4.5V
0.4 A
80mΩ @ VGS= -12V
-3.2 A
125mΩ @ VGS= -4.5V
-2.6 A
Description
This new generation MOSFET is designed to minimize the on-state
resistance (RDS(ON)) and yet maintain superior switching performance,
making it ideal for high efficiency power management applications.
Applications
Low On-Resistance
Low Input Capacitance
Fast Switching Speed
Low Input/Output Leakage
ESD Protected Gate on N-Channel (>6kV Human Body Model)
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data

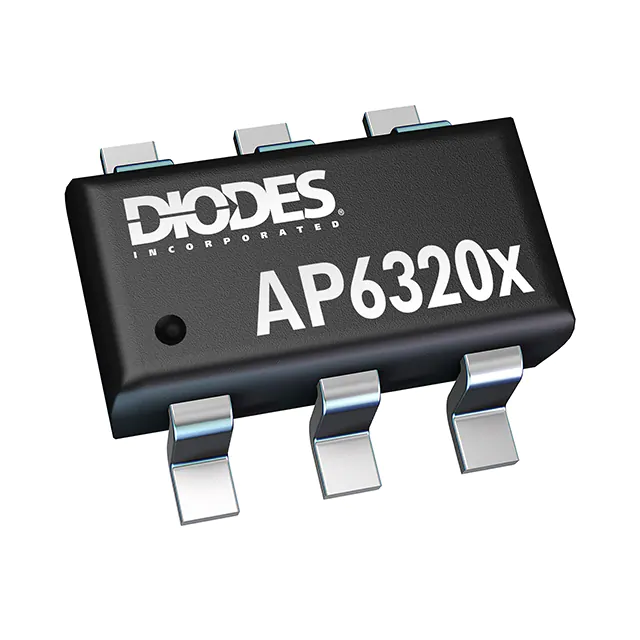

Case: TSOT26
Case Material: Molded Plastic, ―Green‖ Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals Connections: See Diagram
Terminals: Finish – Matte Tin Annealed over Copper Leadframe.
Solderable per MIL-STD-202, Method 208 e3
DC-DC Converters
Power Management Functions
Load Switch
Weight: 0.013 grams (Approximate)
D2
D1
TSOT26
G2
G1
Gate Protection
Diode
Top View
Top View
Internal Circuit
S2
S1
Q1 N-Channel MOSFET
Q2 P-Channel MOSFET
Ordering Information (Note 4)
Part Number
DMC25D0UVT-7
DMC25D0UVT-13
Notes:
Case
TSOT26
TSOT26
Packaging
3000 / Tape & Reel
10000 / Tape & Reel
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green‖ products are defined as those which contain
