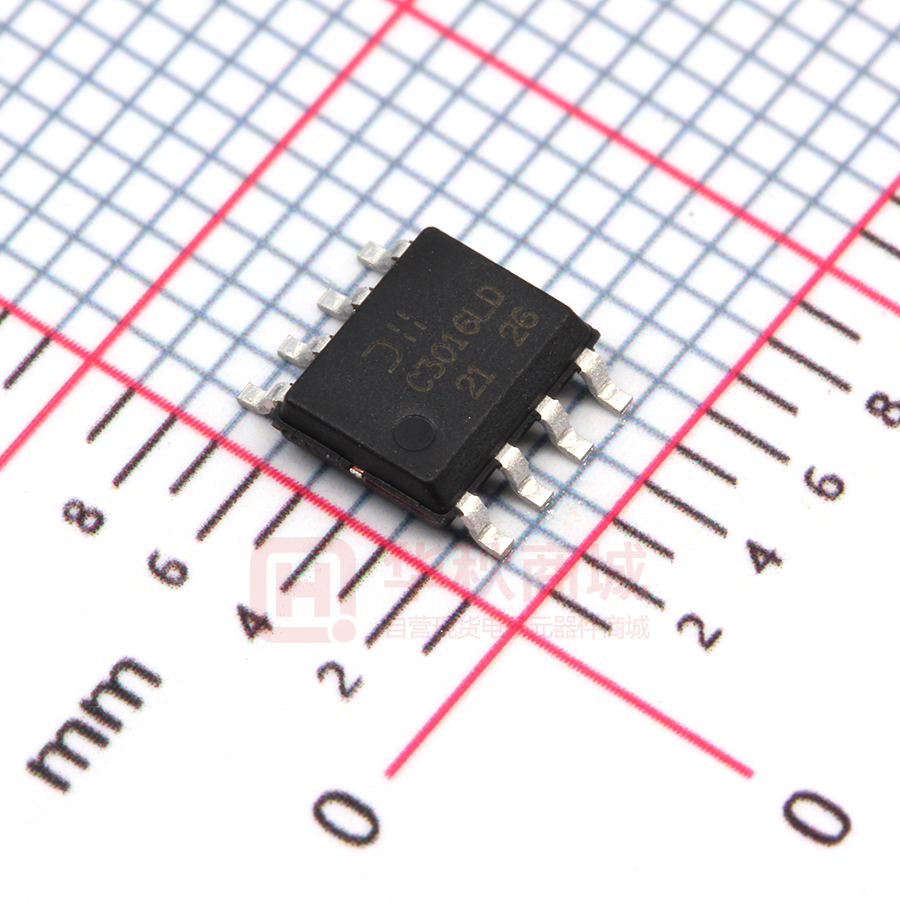

DMC3016LSD-13

DMC3016LSD COMPLEMENTARY PAIR ENHANCEMENT MODE MOSFET Product Summary Device V(BR)DSS Q1 30V Q2 -30V Features and Benefits RDS(ON) Max ID TA = +25°C 16mΩ @ VGS = 10V 8.2A 20mΩ @ VGS = 4.5V 7.3A 28mΩ @ VGS = -10V -6.2A 38mΩ @ VGS = -4.5V -5.2A       Low Input Capacitance Low On-Resistance Fast Switching Speed Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) Halogen and Antimony Free. “Green” Device (Note 3) Qualified to AEC-Q101 Standards for High Reliability Description Mechanical Data This new generation MOSFET is designed to minimize the on-state resistance (RDS(ON)), yet maintain superior switching performance,   making it ideal for high-efficiency power management applications. Applications        DC-DC Converters Power Management Functions Backlighting SO-8 Case: SO-8 Case Material: Molded Plastic, “Green” Molding Compound. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020 Terminal Connections: See Diagram Terminals: Finish – Matte Tin Annealed over Copper Leadframe Solderable per MIL-STD-202, Method 208 Weight: 0.074 grams (Approximate) D1 S1 D1 G1 D1 S2 D2 G2 D2 D2 Pin1 G1 G2 S1 Top View Pin Configuration Top View N-Channel MOSFET S2 P-Channel MOSFET Ordering Information (Note 4) Part Number DMC3016LSD-13 Notes: Case SO-8 Packaging 2,500/Tape & Reel 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. 2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain
