DMC3021LSD
COMPLEMENTARY PAIR ENHANCEMENT MODE MOSFET
Product Summary
Device
BVDSS
Q2
30V
Q1
-30V
Features
RDS(ON) max
ID Max
TA = +25C
21m @ VGS = 10V
8.5A
32m @ VGS = 4.5V
7.2A
39m @ VGS = -10V
-7A
53m @ VGS = -4.5V
-5.6A
Description and
This MOSFET has been designed to minimize the on-state resistance
(RDS(ON)) and yet maintain superior switching performance, making it
Low On-Resistance
Low Input Capacitance
Fast Switching Speed
Low Input/Output Leakage
Complementary Pair MOSFET
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
An Automotive-Compliant Part is Available Under Separate
Datasheet (DMC3021LSDQ)
ideal for high efficiency power management applications.
Mechanical Data
Applications
Power Management Functions
Analog Switch
Load Switch

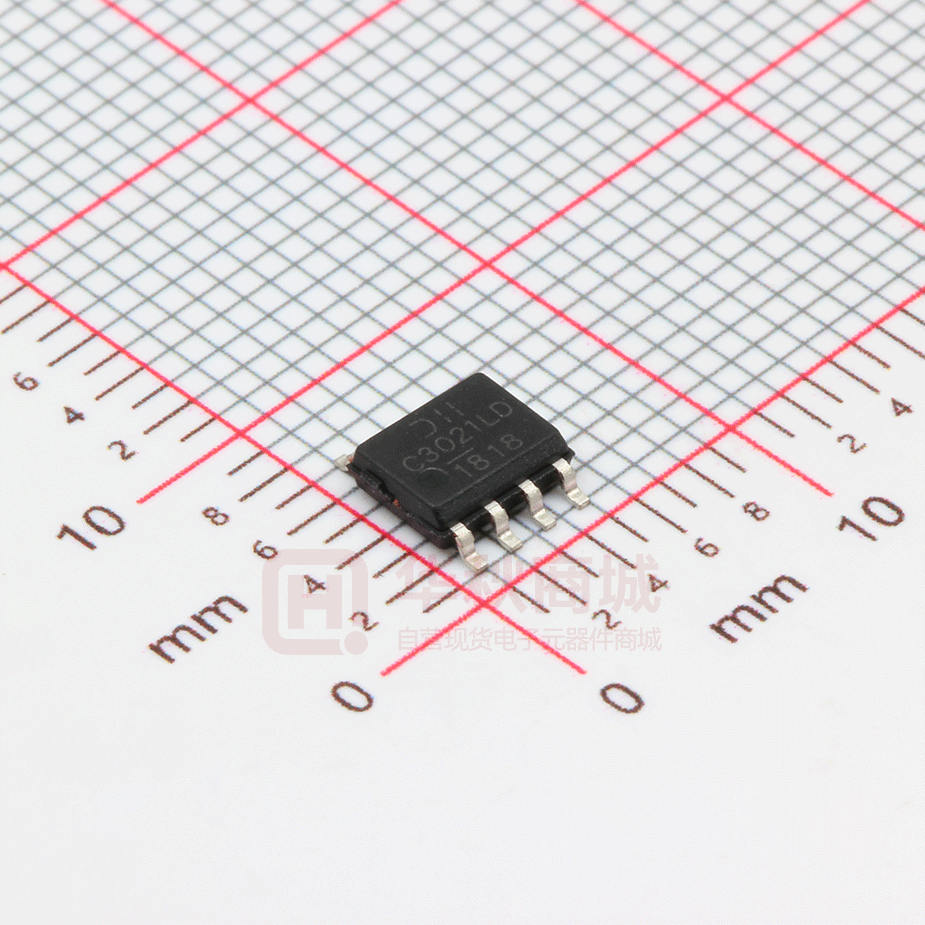

Case: SO-8
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals Connections: See Diagram
Terminals: Finish - Matte Tin Annealed over Copper Lead
Frame. Solderable per MIL-STD-202, Method 208 e3
Weight: 0.072 grams (Approximate)
SO-8
S2
D2
G2
D2
S1
D1
G1
D1
Top View
D2
G2
D1
G1
S2
Top View
N-Channel MOSFET
S1
P-Channel MOSFET
Ordering Information (Note 4)
Part Number
DMC3021LSD-13
Notes:
Case
SO-8
Packaging
2500/Tape & Reel
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant.
2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and
Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain
