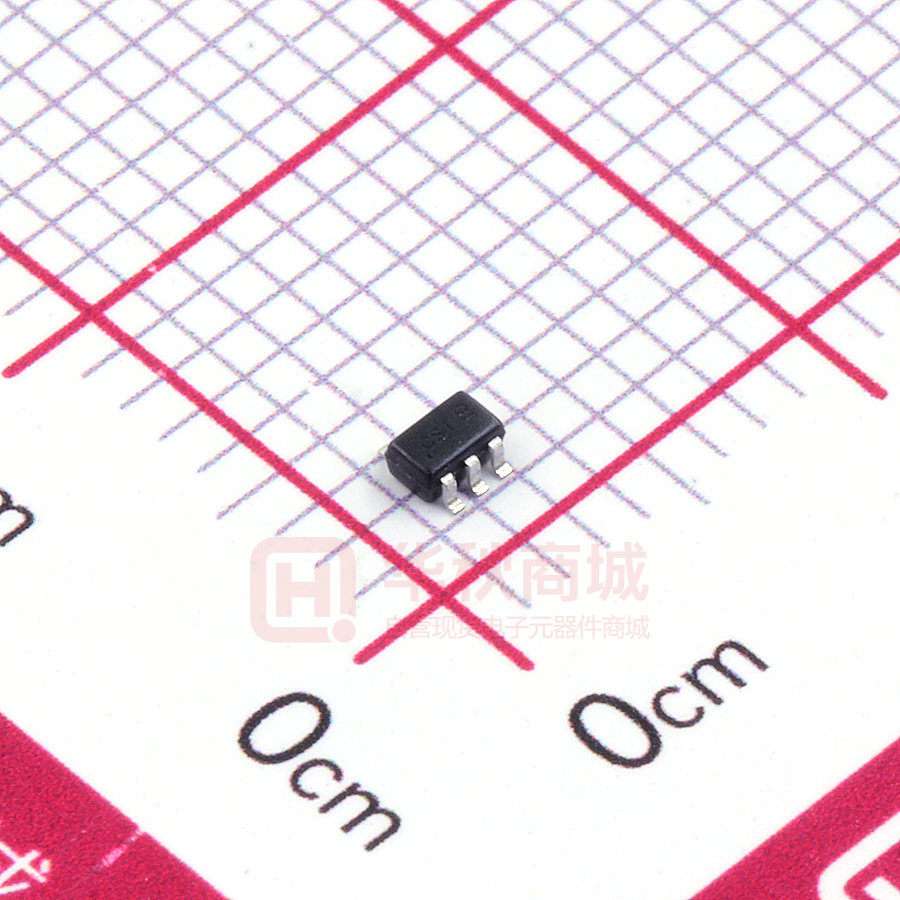

DMC3400SDW-7

DMC3400SDW COMPLEMENTARY PAIR ENHANCEMENT MODE MOSFET Device V(BR)DSS Q1 30 Q2 Features and Benefits RDS(ON) max ID max TA = +25°C 0.4Ω @ VGS = 10V 0.65A 0.7Ω @ VGS = 4.5V 0.52A 0.9Ω @ VGS = -10V -0.45A 1.7Ω @ VGS = -4.5V -0.33A       Low On-Resistance Low Input Capacitance Fast Switching Speed ESD Protected Gate Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) Halogen and Antimony Free. “Green” Device (Note 3) -30 Mechanical Data   Description and Applications This MOSFET is designed to minimize the on-state resistance (RDS(ON)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications.    Case: SOT363 Case Material: Molded Plastic, "Green" Molding Compound. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020 Terminal Connections Indicator: See Diagram Terminals: Finish  Matte Tin Annealed over Copper Leadframe. Solderable per MIL-STD-202, Method 208 Weight: 0.027 grams (Approximate)    Motor Control Power Management Functions DC-DC Converters  D2 D1 SOT363 Gate Protection Diode ESD PROTECTED Gate Protection Diode S1 Q1 N-CHANNEAL Top View D1 G2 S2 S1 G1 D2 G2 G1 S2 Q2 P-CHANNEAL Top View Pin out Ordering Information (Note 4) Part Number DMC3400SDW-7 DMC3400SDW-13 Notes: Case SOT363 SOT363 Packaging 3000/Tape & Reel 10000/Tape & Reel 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. 2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain
