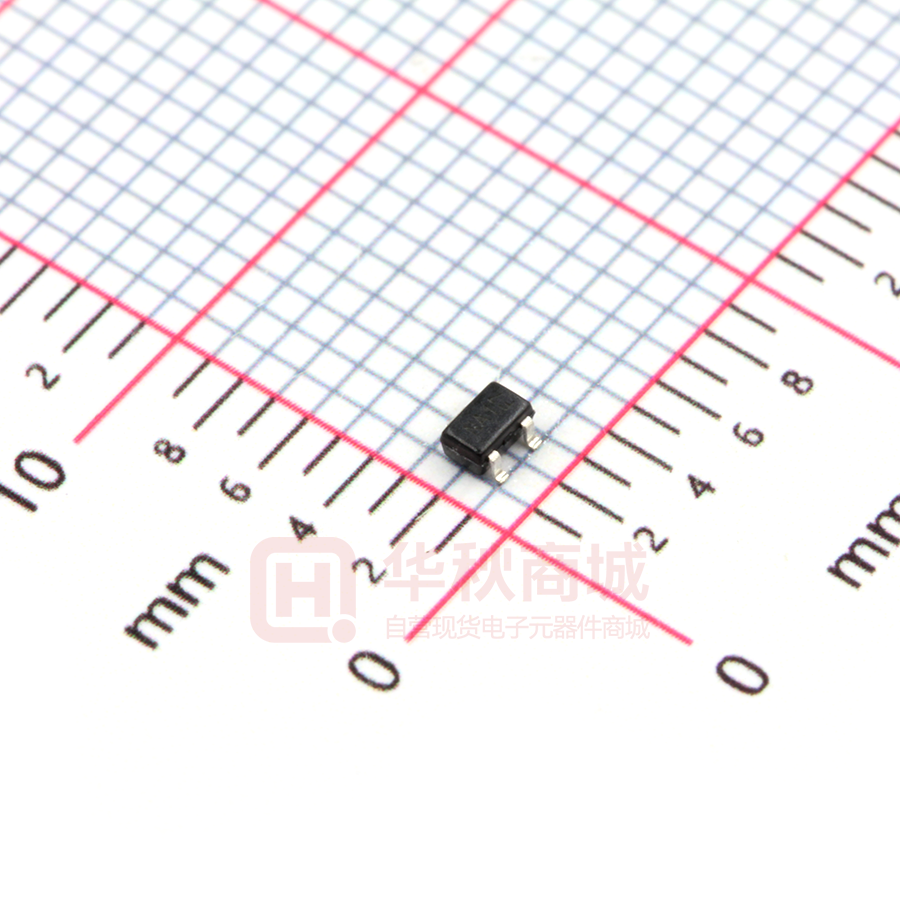

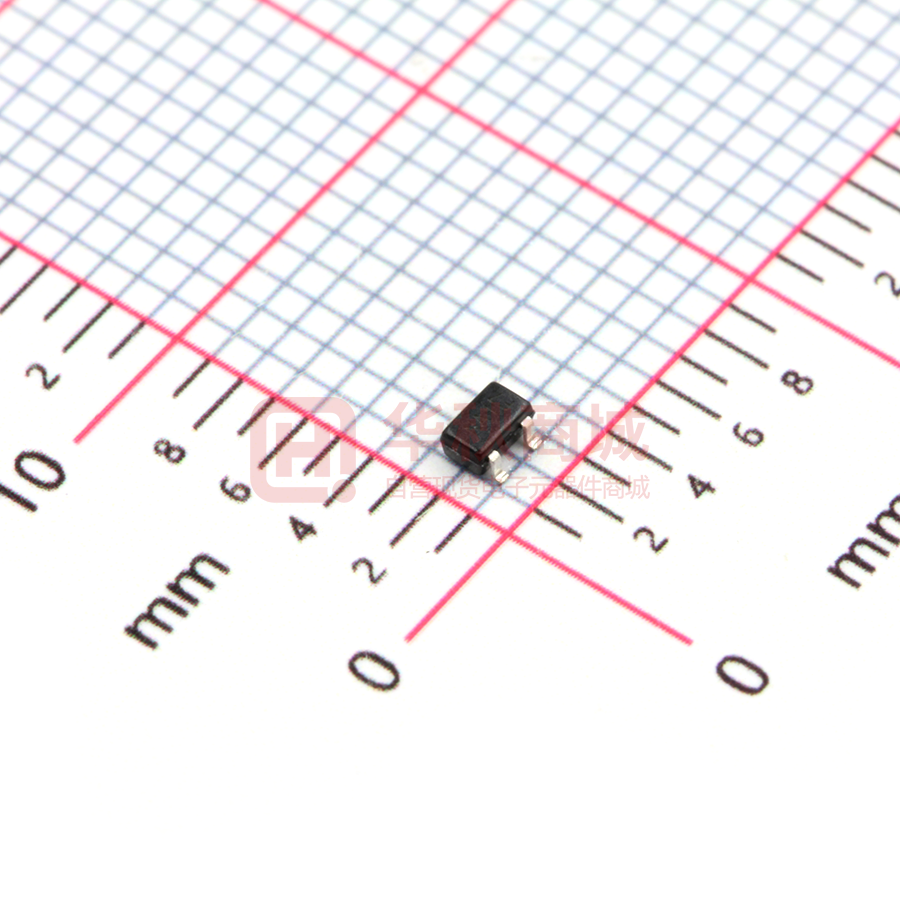

DMG1012UW-7

DMG1012UW N-CHANNEL ENHANCEMENT MODE MOSFET Features Mechanical Data • • • • • • Low On-Resistance Low Gate Threshold Voltage Low Input Capacitance Fast Switching Speed Low Input/Output Leakage ESD Protected Up To 2KV • • • • • Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2) Halogen and Antimony Free. “Green” Device (Note 3) Qualified to AEC-Q101 Standards for High Reliability Case: SOT-323 Case Material: Molded Plastic, “Green” Molding Compound. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020 Terminal Connections: See Diagram Below Terminals: Finish ⎯ Matte Tin annealed over Alloy 42 leadframe. Solderable per MIL-STD-202, Method 208 e3 Weight: 0.006 grams (approximate) • • • • Drain D Gate Gate Protection Diode TOP VIEW ESD PROTECTED TO 2kV G Source TOP VIEW EQUIVALENT CIRCUIT Ordering Information (Note 4) Part Number DMG1012UW-7 Notes: S Case SOT-323 Packaging 3000 / Tape & Reel 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. 2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain
