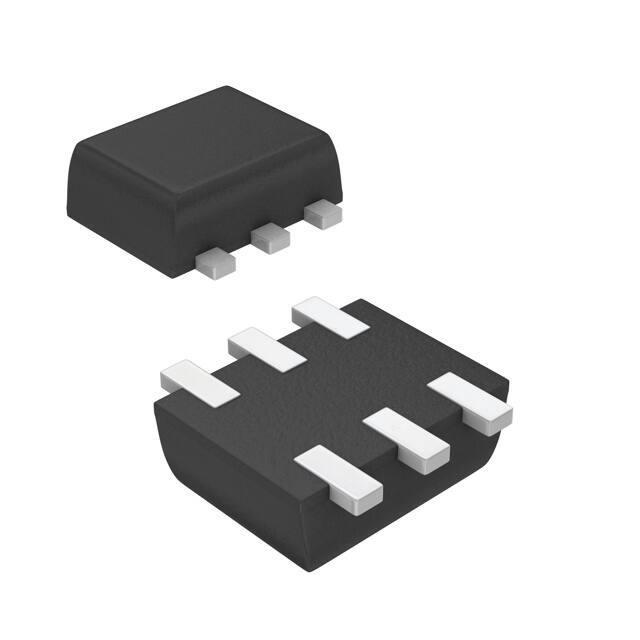

DMG1023UVQ-7

DMG1023UVQ DUAL P-CHANNEL ENHANCEMENT MODE MOSFET Product Summary BVDSS -20V RDS(on) Features and Benefits TA = +25°C 0.75Ω @ VGS = -4.5V -1.03A 1.05Ω @ VGS = -2.5V -0.7A Dual P-Channel MOSFET Low On-Resistance Low Gate Threshold Voltage Low Input Capacitance Fast Switching Speed ESD Protected Gate Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) Halogen and Antimony Free. “Green” Device (Note 3) The DMG1023UVQ is suitable for automotive applications requiring specific change control; this part is AEC-Q101 qualified, PPAP capable, and manufactured in IATF 16949 certified facilities. https://www.diodes.com/quality/product-definitions/ • • • • • • • • • ID Description and Applications Mechanical Data This new generation MOSFET is designed to minimize on-state resistance (RDS(on)), yet maintain superior switching performance, • • Case: SOT563 Case Material: Molded Plastic, “Green” Molding Compound. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020 Terminal Connections: See Diagram Below Terminals: Finish—Matte Tin Annealed over Copper Leadframe. Solderable per MIL-STD-202, Method 208 Weight: 0.006 grams (Approximate) making it ideal for high-efficiency power management applications. • • • • • • DC-DC Converters Load Switch Power Management Functions • SOT563 ESD PROTECTED Top View Bottom View D2 G1 S1 S2 G2 D1 Top View Ordering Information (Note 4) Part Number DMG1023UVQ-7 DMG1023UVQ-13 Notes: Case SOT563 SOT563 Packaging 3,000/Tape & Reel 10,000/Tape & Reel 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant. 2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain
