NOT RECOMMENDED FOR NEW DESIGN
USE DMG2301L
DMG2301U
P-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
RDS(ON) max
ID max
TA = +25°C
Low On-Resistance
Low Input Capacitance
80mΩ @ VGS = -4.5V
-2.7A
Fast Switching Speed
110mΩ @ VGS = -2.5V
-2.1A
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
BVDSS
-20V
Features
This MOSFET is designed to minimize the on-state resistance
(RDS(ON)) and yet maintain superior switching performance, making it
ideal for high-efficiency power-management applications.
Mechanical Data
Case: SOT23
Applications
Case Material: Molded Plastic, “Green” Molding Compound;
Backlighting
Moisture Sensitivity: Level 1 per J-STD-020
Power Management Functions
DC-DC Converters
Terminals: Finish Matte Tin Annealed over Copper
Leadframe; Solderable per MIL-STD-202, Method 208
Motor Control
Terminals Connections: See Diagram Below
Weight: 0.008 grams (Approximate)
UL Flammability Classification Rating 94V-0
D
SOT23
D
G
S
G
S
Top View
Top View
Pin Configuration
Internal Schematic
Ordering Information (Note 4)
Part Number

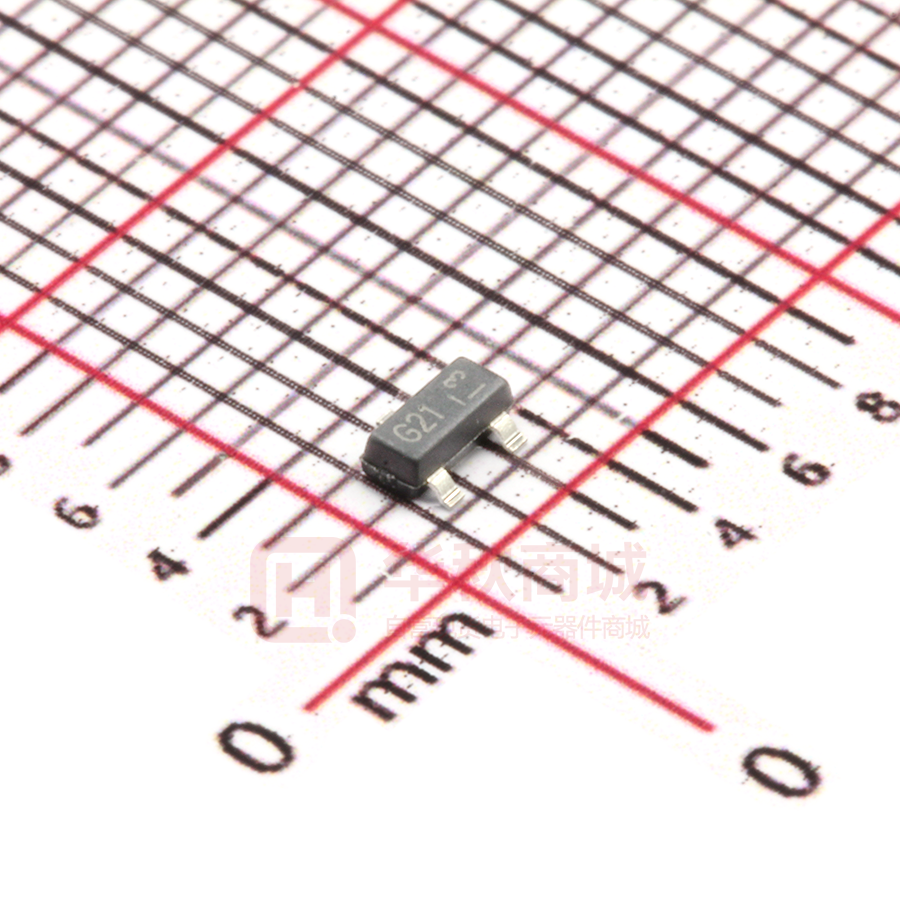

DMG2301U-7
Notes:
Case
SOT23
Packaging
3,000/Tape & Reel
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green" products are defined as those which contain
