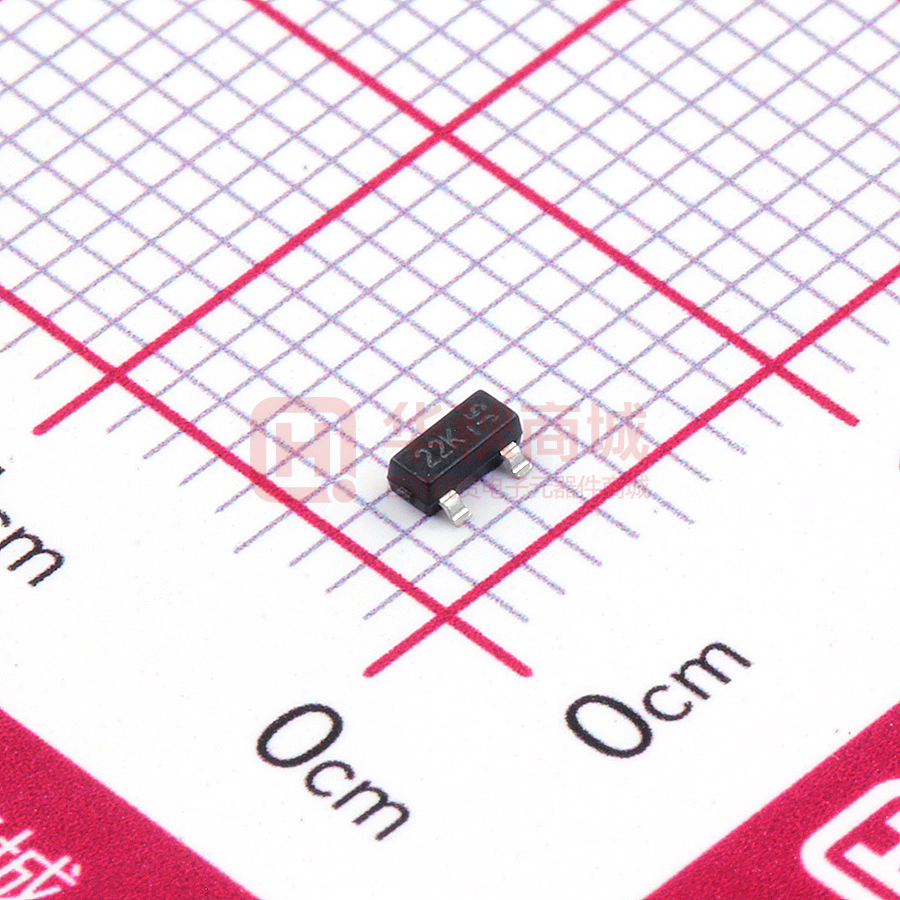

DMG2302UK-7

DMG2302UK N-CHANNEL ENHANCEMENT MODE MOSFET Product Summary V(BR)DSS Features and Benefits RDS(ON) Max ID Max TA = +25°C 90mΩ @ VGS = 4.5V 2.8A 120mΩ @ VGS = 2.5V 2.4A        Description and Applications Mechanical Data This MOSFET is designed to minimize the on-state resistance (RDS(ON)), yet maintain superior switching performance, making it   ideal for high efficiency power management applications.       Backlighting Power Management Functions DC-DC Converters Motor Control   Case: SOT23 Case Material: Molded Plastic, “Green” Molding Compound. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020 Terminals: Finish –Matte Tin Annealed over Copper Leadframe. Solderable per MIL-STD-202, Method 208 Terminals Connections: See Diagram Below Weight: 0.009 grams (Approximate) D D G S G ESD protected Gate Gate Protection Diode Top View S Top View Internal Schematic Ordering Information (Note 4) Part Number DMG2302UK-7 DMG2302UK-13 Notes: Case SOT23 SOT23 Packaging 3,000/Tape & Reel 10,000/Tape & Reel 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. 2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain
