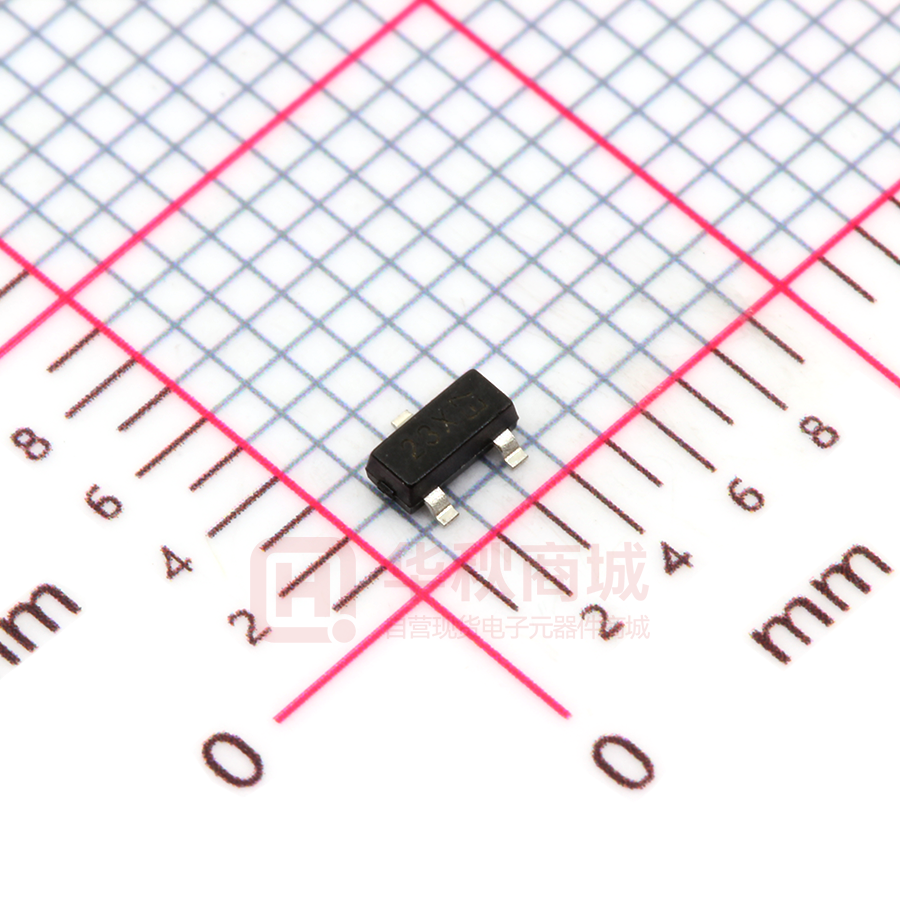

DMG2305UX-7

DMG2305UX P-CHANNEL ENHANCEMENT MODE MOSFET Product Summary Features BVDSS RDS(ON) Max Package -20V 52mΩ @VGS = -4.5V 100mΩ @VGS = -2.5V SOT23        ID Max TA = +25°C -5.0A -3.6A Description This MOSFET is designed to minimize the on-state resistance (RDS(ON)), yet maintain superior switching performance, making it Low On-Resistance Low Input Capacitance Fast Switching Speed Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) Halogen and Antimony Free. “Green” Device (Note 3) Qualified to AEC-Q101 Standards for High Reliability An Automotive-Compliant Part is Available Under Separate Datasheet (DMG2305UXQ) ideal for high efficiency power management applications. Applications Mechanical Data       Backlighting Power Management Functions DC-DC Converters Motor Control     Case: SOT23 Case Material: Molded Plastic, ―Green‖ Molding Compound. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020 Terminals: Finish – Matte Tin Annealed over Copper Leadframe. Solderable per MIL-STD-202, Method 208 Terminals Connections: See Diagram Below Weight: 0.009 grams (Approximate) D D G Internal Schematic Top View S G S Top View Ordering Information (Note 4) Part Number DMG2305UX-7 DMG2305UX-13 Notes: Compliance Standard Standard Case SOT23 SOT23 Packaging 3,000/Tape & Reel 10,000/Tape & Reel 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant. 2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green‖ products are defined as those which contain
