DMG2305UXQ
P-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
Features
BVDSS
RDS(ON) Max
Package
-20V
52mΩ @VGS = -4.5V
100mΩ @VGS = -2.5V
SOT23
ID
TA = +25°C
-5.0A
-3.6A
Description and Applications
Low On-Resistance
Low Input Capacitance
Fast Switching Speed
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
PPAP Capable (Note 4)
Mechanical Data
This MOSFET is designed to meet the stringent requirements of
Automotive applications. It is qualified to AEC-Q101, supported by a
PPAP and is ideal for use in:

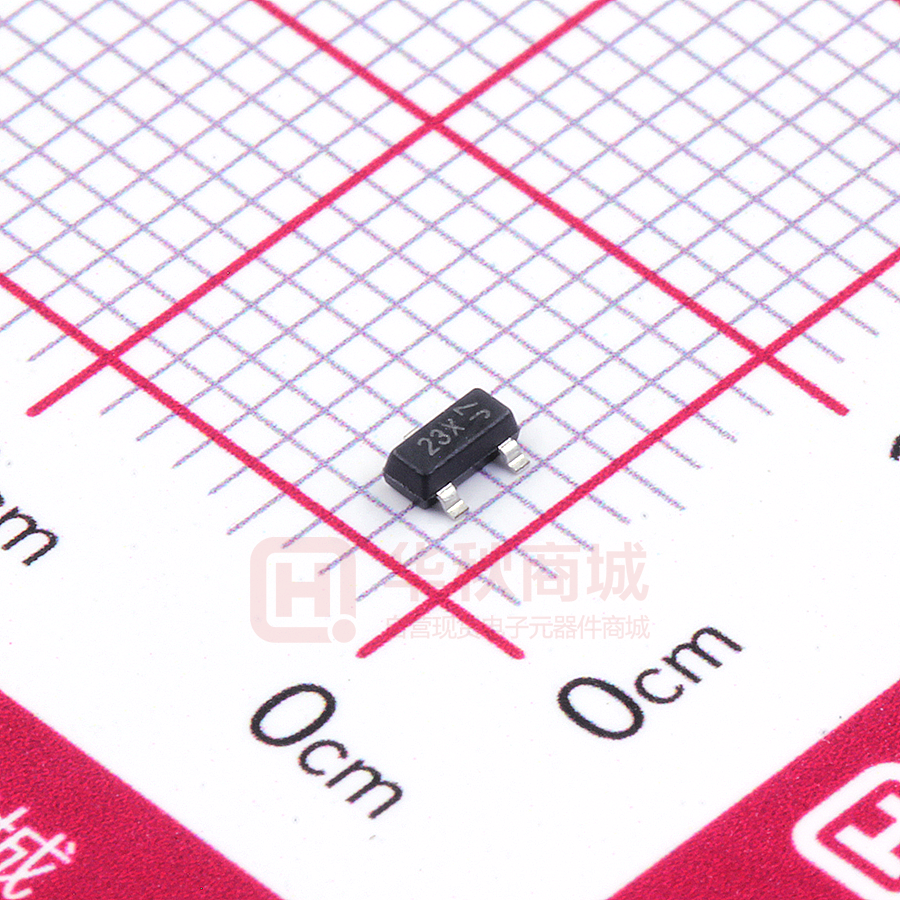

Case: SOT23
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020D
Terminals: Finish – Matte Tin Annealed over Copper Leadframe.
Solderable per MIL-STD-202, Method 208
Terminals Connections: See Diagram Below
Weight: 0.009 grams (Approximate)
Backlighting
Power Management Functions
DC-DC Converters
Motor Control
D
D
G
S
G
S
Top View
Top View
Internal Schematic
Ordering Information (Note 5)
Part Number
DMG2305UXQ-7
DMG2305UXQ-13
Notes:
Compliance
Automotive
Automotive
Case
SOT23
SOT23
Packaging
3,000/Tape & Reel
10,000/Tape & Reel
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant.
2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and
Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain
