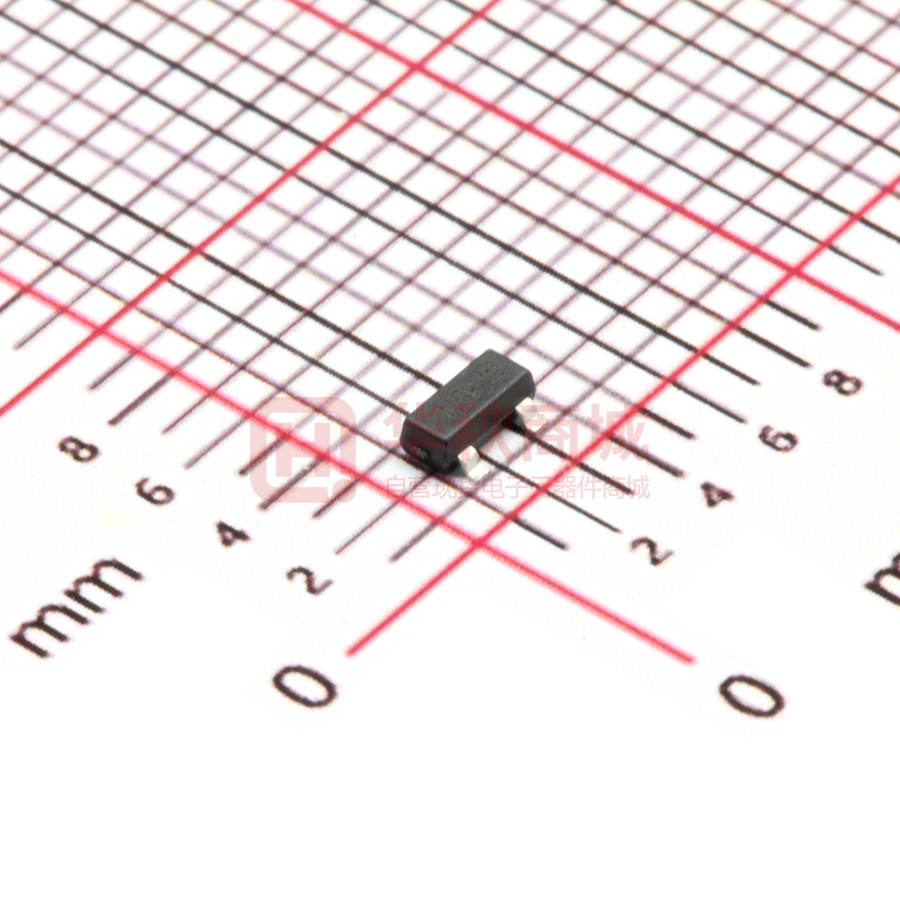

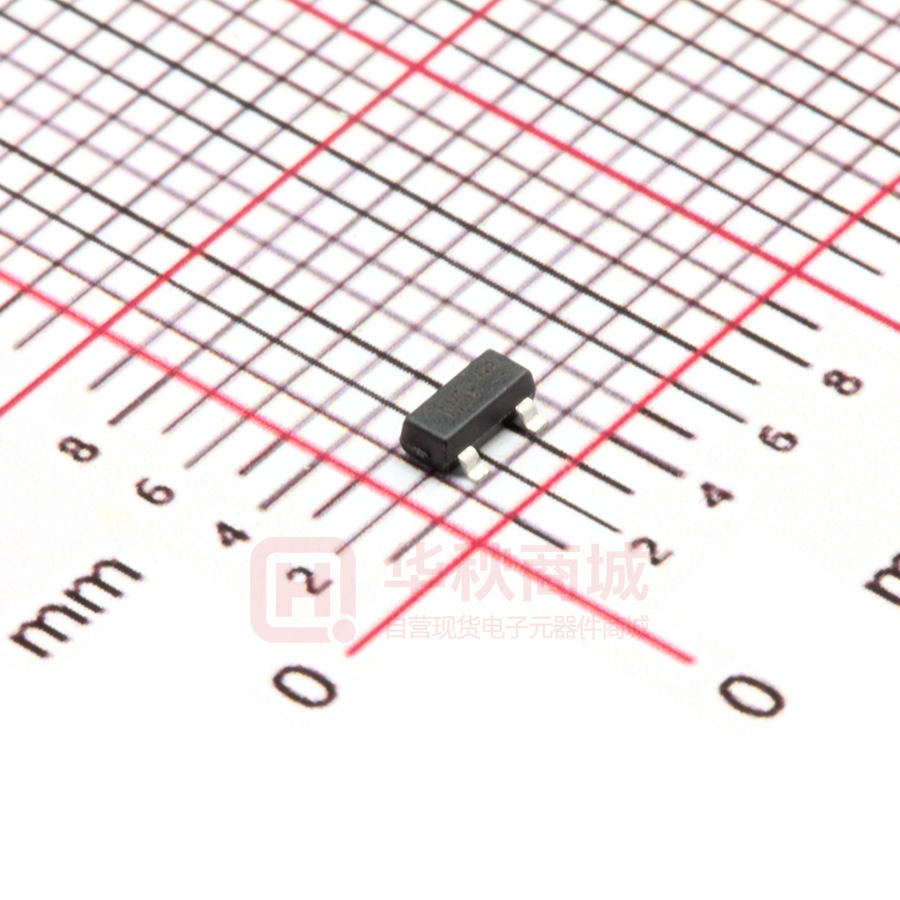

DMG301NU-7

DMG301NU 25V N-CHANNEL ENHANCEMENT MODE MOSFET Product Summary Features This new generation MOSFET is designed to minimize the on-state resistance (RDS(ON)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications.          Applications Mechanical Data       V(BR)DSS RDS(ON) 25V 4Ω @ VGS = 4.5V 5Ω @ VGS = 2.7V ID TA = +25°C 0.26A 0.23A Description DC-DC Converters Power Management Functions Battery Operated Systems and Solid-State Relays Drivers: Relays, Solenoids, Lamps, Hammers, Displays, Memories, Transistors, etc. Low On-Resistance Low Gate Threshold Voltage Low Input Capacitance Fast Switching Speed Small Surface Mount Package ESD Protected Gate (>6kV Human Body Model) Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) Halogen and Antimony Free. “Green” Device (Note 3) Qualified to AEC-Q101 Standards for High Reliability Case: SOT23 Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020 Terminals: Solderable per MIL-STD-202, Method 208 e3    Lead Free Plating (Matte Tin Finish Annealed over Alloy 42 Leadframe). Terminal Connections: See Diagram Weight: 0.008 grams (Approximate)   D D G ESD HBM >6kV S G Gate Protection Diode Top View Pin Configuration Top View S Equivalent Circuit Ordering Information (Note 4) Part Number DMG301NU-7 DMG301NU-13 Notes: Compliance Standard Standard Case SOT23 SOT23 Packaging 3,000/Tape & Reel 10,000/Tape & Reel 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. 2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain
