DMG4496SSS
N-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
RDS(ON) max
ID max
TA = +25°C
Low On-Resistance
Low Input Capacitance
21.5mΩ @ VGS = 10V
10A
Fast Switching Speed
8A
Low Input/Output Leakage
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
V(BR)DSS
NEW PRODUCT
30V
Features and Benefits
29mΩ @ VGS = 4.5V
Description
This MOSFET has been designed to minimize the on-state resistance
(RDS(ON)) and yet maintain superior switching performance, making it
ideal for high efficiency power management applications.
Mechanical Data

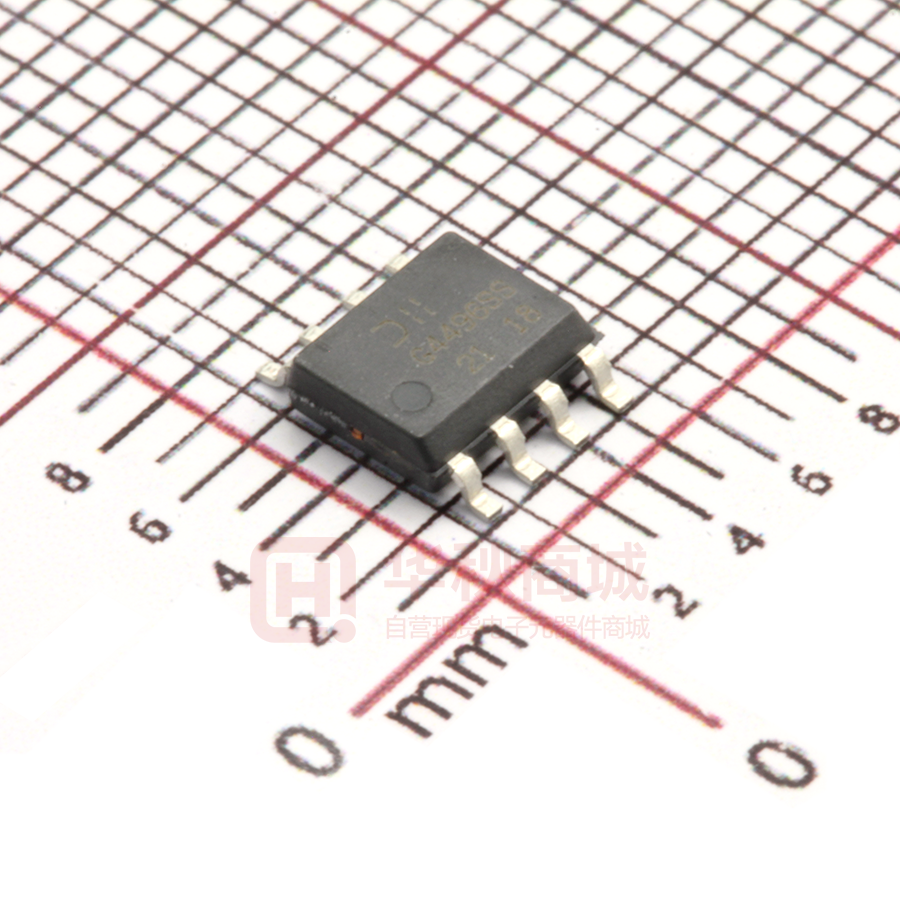

Case: SO-8
Applications
Backlighting
Moisture Sensitivity: Level 1 per J-STD-020
Power Management Functions
Terminal Connections Indicator: See diagram
DC-DC Converters
Terminals: Finish Matte Tin annealed over Copper leadframe.
Solderable per MIL-STD-202, Method 208 e3
Weight: 0.074 grams (approximate)
Case Material: Molded Plastic, "Green" Molding Compound.
UL Flammability Classification Rating 94V-0
SO-8
S
D
S
D
S
D
G
D
Top View
Internal Schematic
Top View
D
G
S
Equivalent circuit
Ordering Information (Note 4 & 5)
Part Number
DMG4496SSS-13
DMG4496SSSQ-13
Notes:
Compliance
Standard
Automotive
Case
SO-8
SO-8
Packaging
2500 / Tape & Reel
2500 / Tape & Reel
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain
