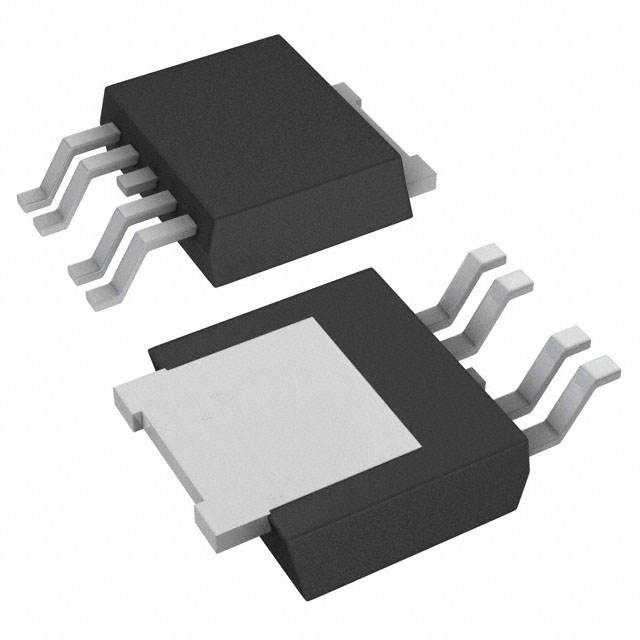

DMG4511SK4-13

DMG4511SK4 COMPLEMENTARY PAIR ENHANCEMENT MODE MOSFET Product Summary Features and Benefits V(BR)DSS RDS(ON) ID TA = +25°C 35V 35mΩ @ VGS = 10V 13A -35V 45mΩ @ VGS = -10V -12A  0.6mm profile – ideal for low profile applications  PCB footprint of 4mm 2  Low Gate Threshold Voltage  Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)  Halogen and Antimony Free. “Green” Device (Note 3)  Qualified to AEC-Q101 Standards for High Reliability Description Mechanical Data This new generation MOSFET has been designed to minimize the onstate resistance (RDS(on)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications.   Applications        Backlighting DC-DC Converters Power management functions TO252-4L Case: TO252-4L Case Material: Molded Plastic, "Green" Molding Compound. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020 Terminal Connections Indicator: See diagram Terminals: Finish – Matte Tin annealed over Copper leadframe. Solderable per MIL-STD-202, Method 208 Weight: 0.328 grams (approximate) D D D G2 D S2 G2 Top View Bottom View G1 S2 S1 S1 G1 Pinout Top view N-Channel MOSFET P-Channel MOSFET Ordering Information (Note 3) Part Number DMG4511SK4-7 Notes: Case TO252-4L Packaging 3000 / Tape & Reel 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. 2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain
