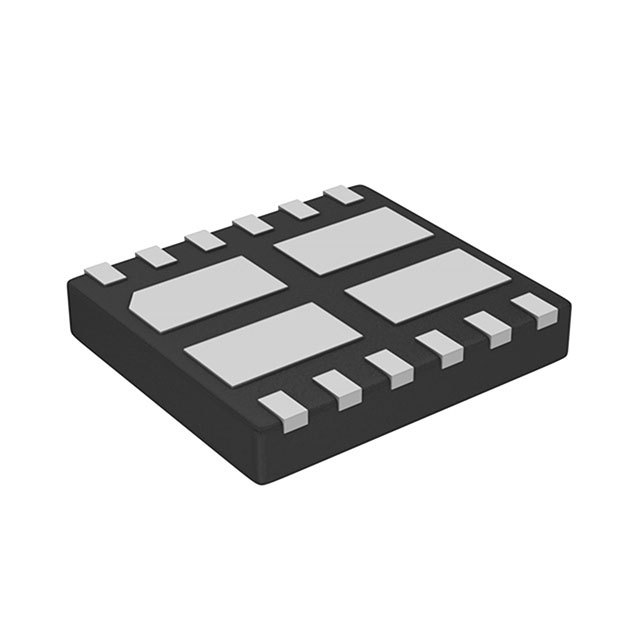

DMHC10H170SFJ-13

DMHC10H170SFJ 100V COMPLEMENTARY ENHANCEMENT MODE MOSFET H-BRIDGE ADVANCE INFORMATION ADVANCED INFORMATION Product Summary Device BVDSS Q1 & Q4 100V Q2 & Q3 -100V Features and Benefits RDS(ON) Max ID TA = +25°C 160mΩ @ VGS = 10V 2.9A 200mΩ @ VGS = 4.5V 2.6A 250mΩ @ VGS = -10V -2.3A 300mΩ @ VGS = -4.5V -2.1A      Description and Applications Mechanical Data This new generation MOSFET is designed to minimize the on-state resistance (RDS(ON)) yet maintain superior switching performance, making it ideal for high-efficiency power management applications.  Low On-Resistance Low Input Capacitance Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) Halogen and Antimony Free. “Green” Device (Note 3) For automotive applications requiring specific change control (i.e. parts qualified to AEC-Q100/101/104/200, PPAP capable, and manufactured in IATF 16949 certified facilities), please contact us or your local Diodes representative. https://www.diodes.com/quality/product-definitions/      High-efficiency bridge rectifiers  Package: V-DFN5045-12 Package Material: Molded Plastic, “Green” Molding Compound. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020 Terminal Connections: See Diagram Terminals: Finish – NiPdAu over Copper Leadframe. Solderable per MIL-STD-202, Method 208 e4 Weight: 0.056 grams (Approximate) Pin 1 V-DFN5045-12 G1 S1 S1 G2 S2 S2 D1/D2 D3/D4 D1/D2 D3/D4 G4 S4 S4 G3 S3 S3 Bottom View Top View 6 S2 S3 7 Q3 (Pch) Q2 (Pch) Pin Pin Out 5 Out S3 8 S2 Pin Pin Out 4 Out G3 9 G2 Pin Pin Out 3 Out S4 10 Q4 (Nch) S1 Q1 (Nch) Pin Pin Out 2 Out S4 11 S1 Pin Pin Out 1 Out G4 12 G1 Pin Pin Out Out D3,D4 to Backside D1,D2 to Backside Internal Schematic Ordering Information (Note 4) Notes: Part Number Package Tape Width DMHC10H170SFJ-13 V-DFN5045-12 12mm Packing Qty. 3,000 Carrier Tape & Reel 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant. 2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain
