DMHC3025LSD
30V COMPLEMENTARY ENHANCEMENT MODE MOSFET H-BRIDGE
NEW PRODUCT
ADVANCE INFORMATION
Product Summary
Device
BVDSS
N-Channel
30V
P-Channel
-30V
Features
RDS(ON) Max
ID Max
TA = +25°C
25mΩ @ VGS = 10V
6.0A
40mΩ @ VGS = 4.5V
4.6A
50mΩ @ VGS = -10V
-4.2A
80mΩ @ VGS = -4.5V
-3.2A
2 x N + 2 x P Channels in A SO-8 Package
Low On-Resistance
Low Input Capacitance
Fast Switching Speed
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
An Automotive-Compliant Part is Available Under Separate
Datasheet (DMHC3025LSDQ)
Description
This new generation complementary MOSFET H-Bridge features low
on-resistance achievable with low gate drive.
Mechanical Data
Applications
DC Motor Control
DC-AC Inverters

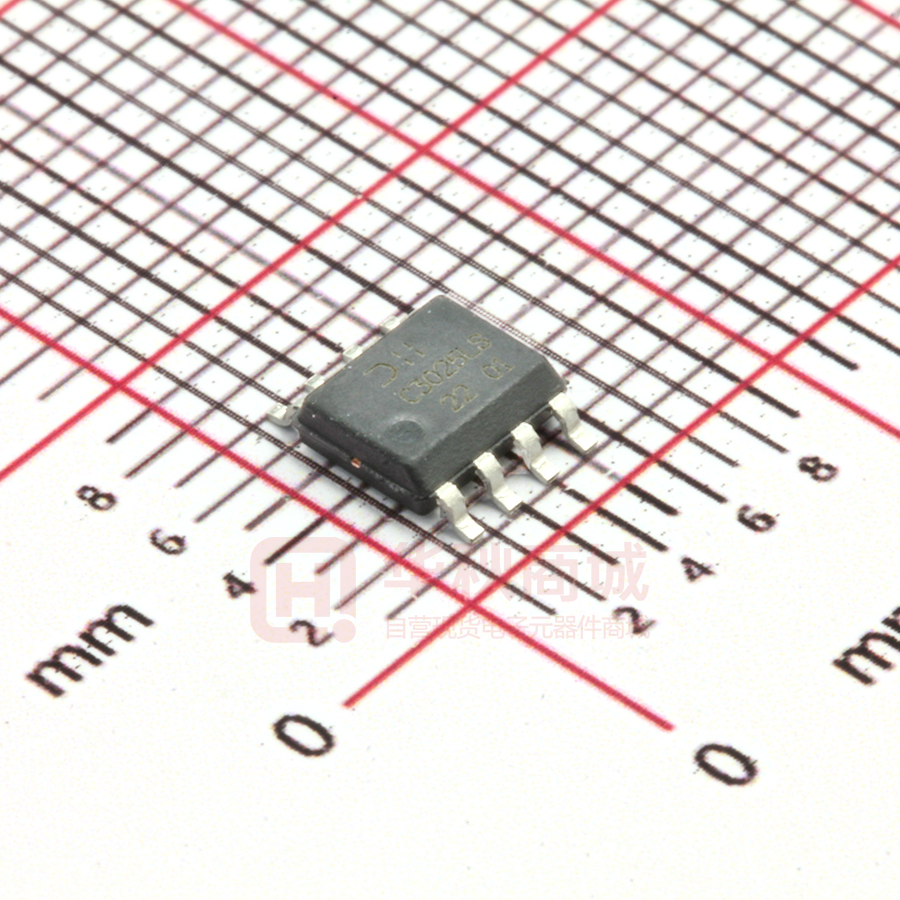

Case: SO-8
Case Material: Molded Plastic, "Green" Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminal Connections Indicator: See Diagram
Terminals: Finish Matte Tin Annealed over Copper Leadframe.
Solderable per MIL-STD-202, Method 208
Weight: 0.008 grams (Approximate)
P2G
N2D/P2D
P1G
P1S/P2S
SO-8
H-Bridge
N2G
N1S/N2S
N1D/P1D
N1G
Top View
Pin Configuration
Top View
Internal Schematic
Ordering Information (Note 4)
Part Number
DMHC3025LSD-13
Notes:
Case
SO-8
Packaging
2500/Tape & Reel
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant.
2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and
Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain
