DMHT6016LFJ
60V N-CHANNEL ENHANCEMENT MODE MOSFET H-BRIDGE
Product Summary
Features
BVDSS
RDS(ON)
60V
22mΩ @ VGS = 10V
30mΩ @ VGS = 4.5V
ID
TA = +25°C
10.6A
8.7A
Thermally Efficient Package – Cooler Running Applications
High Conversion Efficiency
Low RDS(ON) – Minimizes On-State Losses
Low Input Capacitance
Fast Switching Speed
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Description
Mechanical Data
This new generation complementary MOSFET H-Bridge features low
on-resistance achievable with low gate drive.
Applications
Motor Control
DC-DC Converters
Power Management

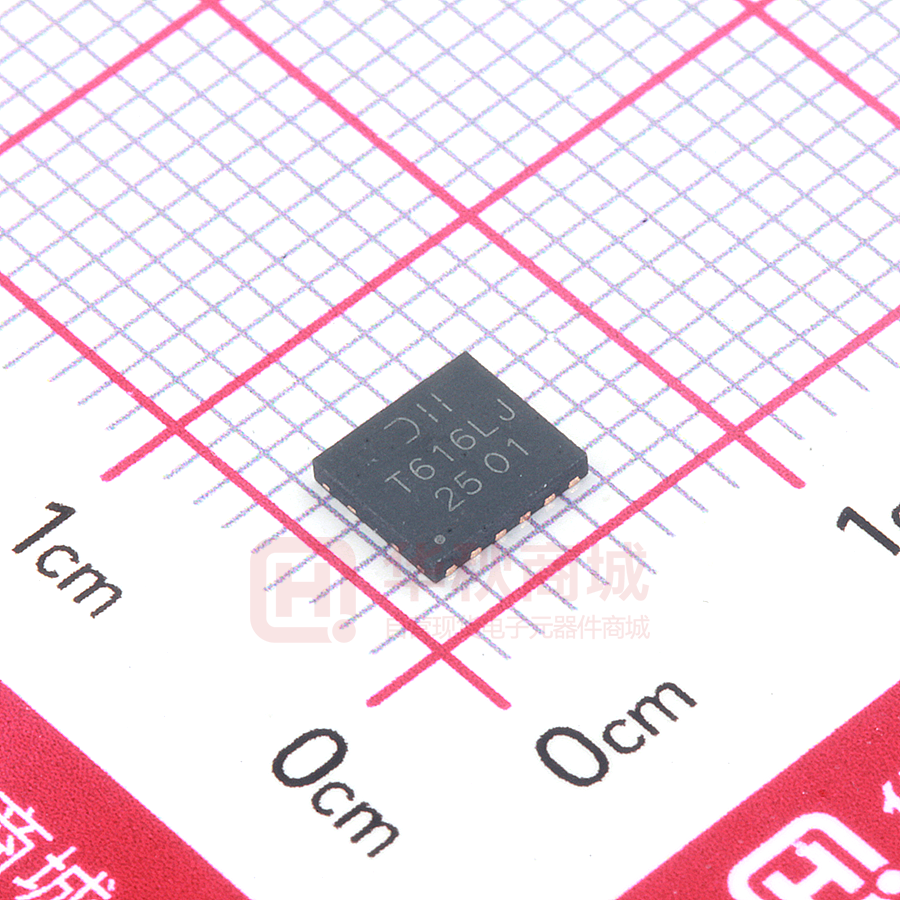

V-DFN5045-12 (Type B)
S3
Case: V-DFN5045-12 (Type B)
Case Material: Molded Plastic, ―Green‖ Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminal Connections: See Diagram
Terminals: Finish – Matte Tin Annealed over Copper Leadframe.
Solderable per MIL-STD-202, Method 208
Weight: 0.097 grams (Approximate)
G3
D3/S4
D1/D4
G4
S4/D3
S1/D2
S2
G1
1
12
G4
D1/D4
2
11
D1/D4
S1/D2
3
10
S4/D3
G2
4
S2
5
S3
Q1 Q4
D1/D4
S2
9
G3
8
S3
7
S3
G2
S1/D2
D1/D4
G1
Pin 1
S2
Q2
Q3
6
Bottom View
Top View
Internal Schematic
Ordering Information (Note 4)
Part Number
DMHT6016LFJ-13
Notes:
Case
V-DFN5045-12 (Type B)
Packaging
3,000/Tape & Reel
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green‖ products are defined as those which contain
